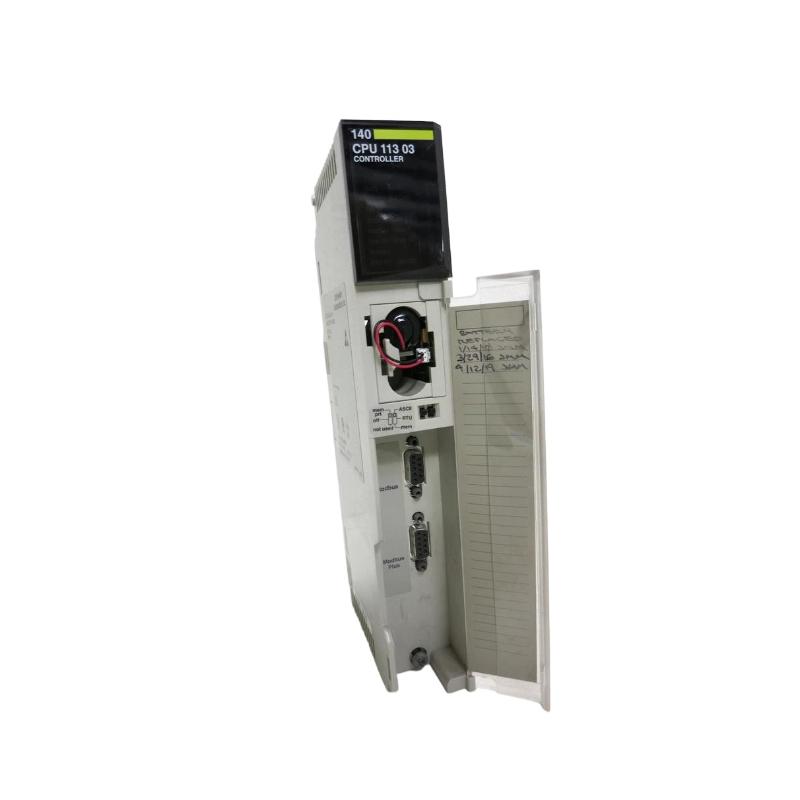

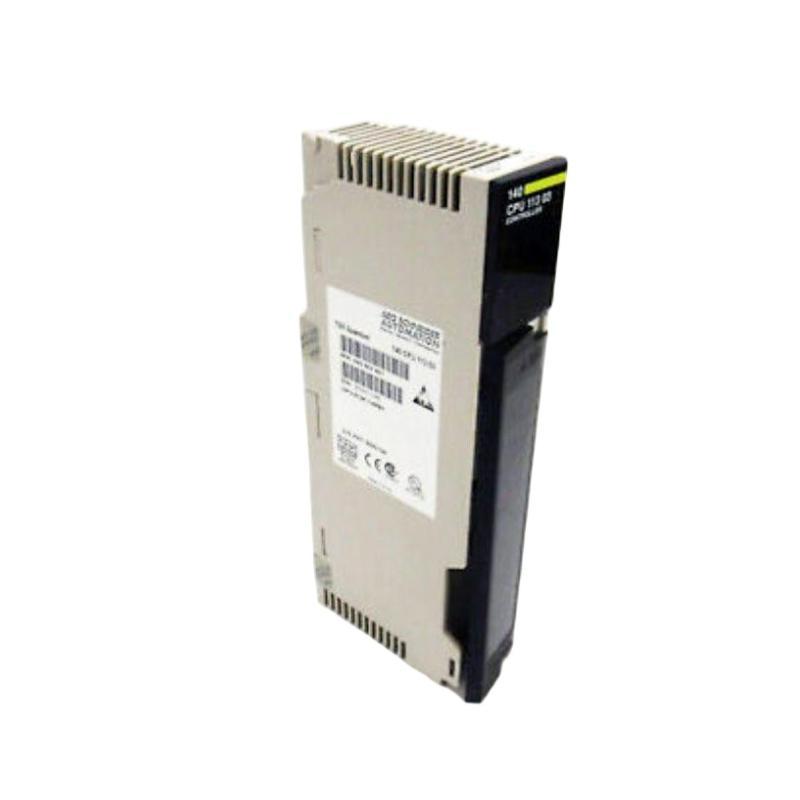

The Schneider Electric 140CPU11303 is a high-performance processor module in the Modicon M340 series of programmable logic controllers (PLCs). Designed for demanding industrial applications, this processor offers superior speed, advanced communication features, and scalability. Whether you're working in machine automation, process control, building automation, or energy management, the 140CPU11303 provides the performance and flexibility required for complex automation systems.
This next-level processor enhances system reliability and operational efficiency with features like Ethernet communication, extended memory capacity, real-time diagnostics, and support for multiple I/O modules. The 140CPU11303 supports up to 2048 I/O points and is well-suited for industries such as automotive, food and beverage, pharmaceuticals, oil and gas, and renewable energy. Designed for high-speed data processing, this processor module ensures that your automation systems perform at their best, even under heavy loads.
Key Features
-
Processor Type: The 140CPU11303 is a Modicon M340 CPU designed for high-speed data processing and real-time control in industrial automation systems.
-
High-Speed Processing: With a 2 MHz processor speed, the 140CPU11303 enables quick execution of control algorithms and efficient handling of complex tasks.
-
Memory: Comes with 4 MB of embedded memory, allowing ample space for storing large programs, data, and diagnostic information. It also supports memory expansion via an SD card.
-
Communication Ports: Includes Ethernet and Modbus TCP/IP communication ports for seamless network integration, remote programming, and monitoring.
-
I/O Capacity: Supports up to 2,048 I/O points, which makes the 140CPU11303 ideal for large-scale systems that require extensive I/O configurations.
-
Real-Time Diagnostics: The built-in diagnostics provide users with continuous monitoring of system health, enabling proactive maintenance and minimizing downtime.
-
Scalability: Supports multiple I/O modules, allowing the system to grow with increasing demands. It is also compatible with a wide range of Modicon M340 expansion modules.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 140CPU11303 |
| Processor Type | Modicon M340 CPU |
| Processor Speed | 2 MHz (max processing speed) |
| Program Memory | 4 MB |
| Communication Ports | 2 x Ethernet ports (Modbus TCP/IP) |
| I/O Capacity | Up to 2,048 I/O points (expandable) |
| Memory Expansion | 1 x SD card slot for memory expansion |
| Embedded Ethernet | Yes, for Ethernet communication and remote programming |
| Diagnostics | Built-in diagnostic capabilities for monitoring system health |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Protection Rating | IP20 (for module only) |
| Dimensions (L x W x H) | 160 x 100 x 120 mm |
| Weight | 0.6 kg (1.32 lbs) |
