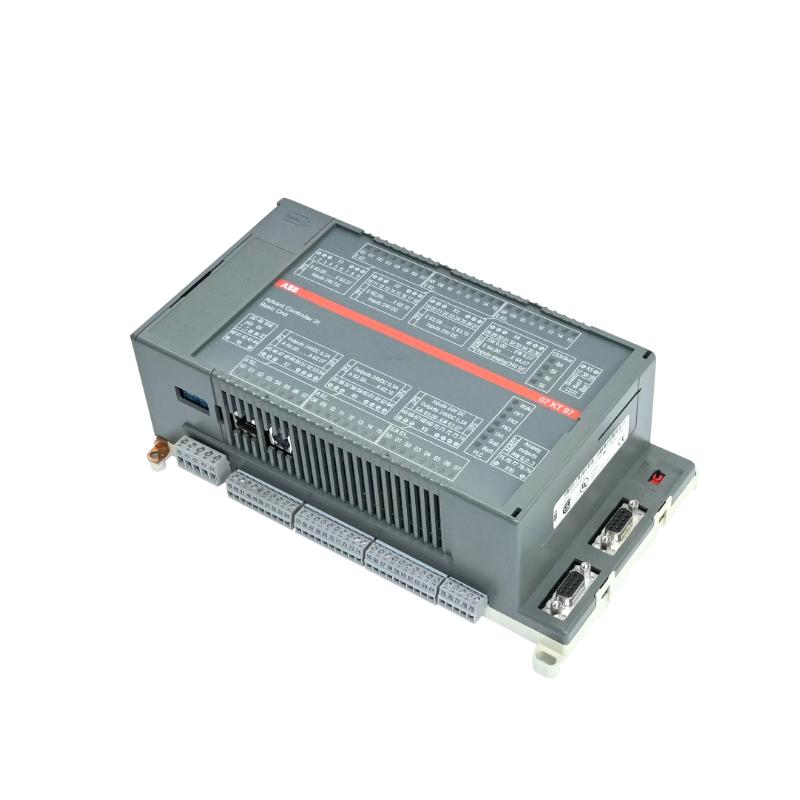

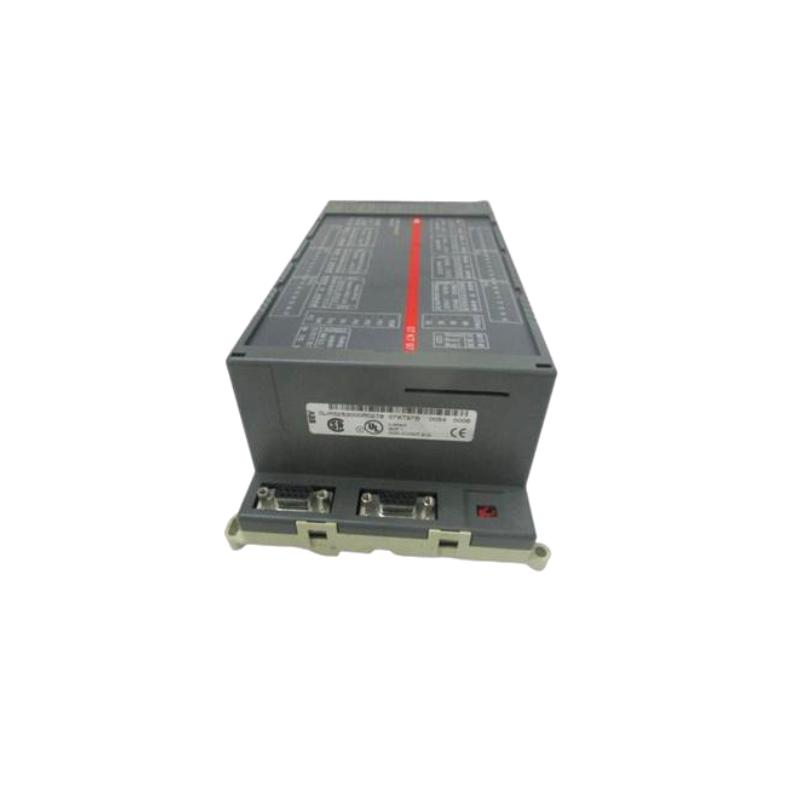

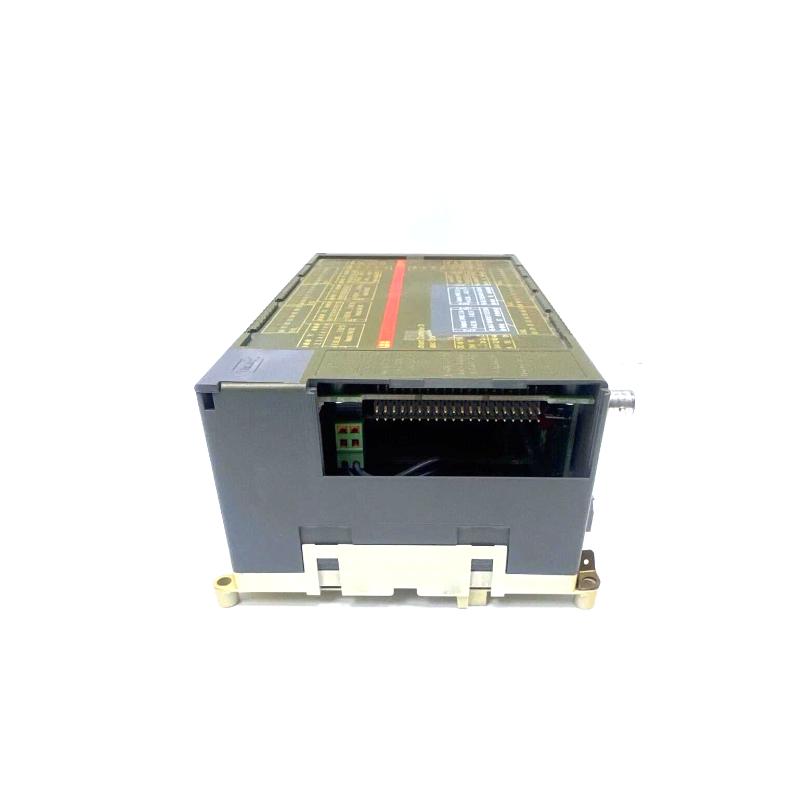

ABB 07KT97B Thermocouple Input Module

Introduction

The ABB 07KT97B Thermocouple Input Module is an advanced solution for high-precision temperature measurement in a variety of industrial environments. This module offers support for up to 8 thermocouple inputs and is compatible with a wide range of thermocouple types, providing great flexibility for various applications. The ABB 07KT97B is designed for seamless integration into ABB’s automation systems, making it ideal for industrial applications in sectors such as power generation, chemical processing, and HVAC systems. With its reliable performance and precise temperature readings, this module plays a crucial role in ensuring optimal operational efficiency and process safety.

Technical Specifications

Specification	Details
Model	07KT97B
Module Type	Thermocouple Input Module
Number of Inputs	8
Input Types	Type J, K, T, E, R, S, B, N, L
Input Range	-200°C to +1800°C
Resolution	16-bit
Size (W x H x D)	120 x 125 x 55 mm
Weight	0.55 kg
Mounting Type	DIN Rail
Operating Temperature	-20°C to +60°C
Certifications	CE, UL, RoHS

Recommended Related Models

Model	Module Type	Input Type	Number of Inputs
ABB 07KT92	Thermocouple Input Module	Type J, K, T, E, R, S, B	8
ABB 07KT93	Thermocouple Input Module	Type J, K, T, E, R, S, B	16
ABB 07KT94	Thermocouple Input Module	Type J, K, T, E, R, S, B	8
ABB 07KT97B	Thermocouple Input Module	Type J, K, T, E, R, S, B	8

Popular ABB Models

Model	Module Type	Input Type	Number of Inputs
ABB 07KT90	Thermocouple Input Module	Type J, K, T, E	4
ABB 07KT92	Thermocouple Input Module	Type J, K, T, E, R, S, B	8
ABB 07KT93	Thermocouple Input Module	Type J, K, T, E, R, S, B	16

Applications

Advantages

Technical FAQs

What thermocouple types are supported by the ABB 07KT97B module?
The ABB 07KT97B supports Type J, K, T, E, R, S, B, N, and L thermocouples.

What is the temperature input range for the ABB 07KT97B module?
The module supports a temperature range from -200°C to +1800°C.

How many thermocouple inputs does the ABB 07KT97B module have?
The module has 8 thermocouple inputs.

What is the resolution of the ABB 07KT97B module?
The ABB 07KT97B provides 16-bit resolution for high-accuracy temperature measurements.

What are the size dimensions of the ABB 07KT97B module?
The module has dimensions of 120 x 125 x 55 mm.

How much does the ABB 07KT97B module weigh?
The module weighs 0.55 kg.

What is the operating temperature range for the ABB 07KT97B module?
The module operates within a temperature range of -20°C to +60°C.

How is the ABB 07KT97B module mounted?
The ABB 07KT97B module is mounted using a DIN rail.

Is the ABB 07KT97B module certified for safety and environmental standards?
Yes, the module is CE, UL, and RoHS certified.

Can the ABB 07KT97B module be used in power generation applications?
Yes, it is widely used for temperature monitoring in power generation systems like turbines, boilers, and heat exchangers.
