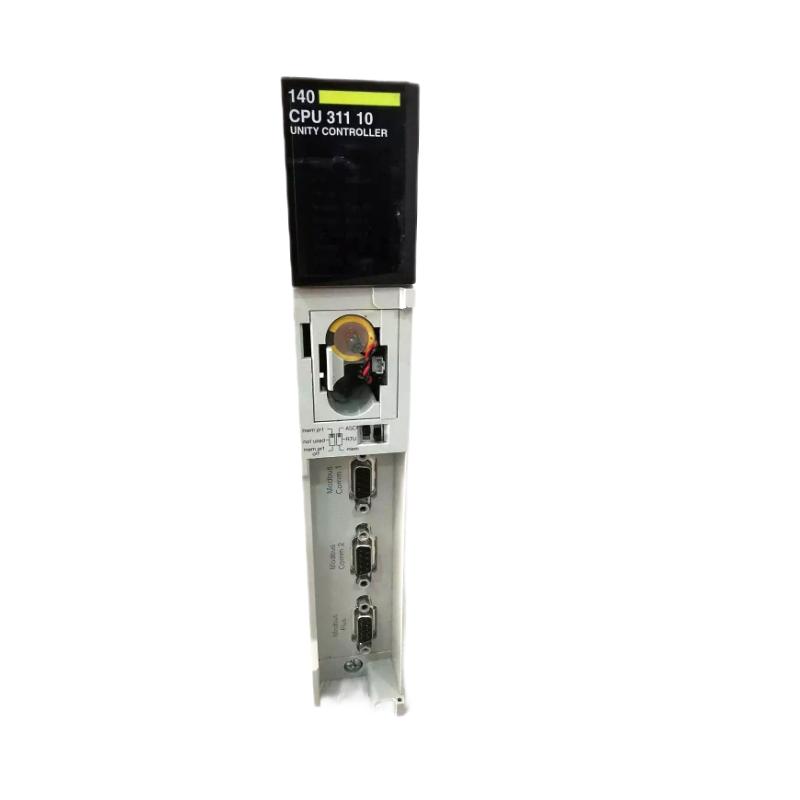

140CPU31110 Schneider 140CPU31110-1 Schneider 140CPU31110-3 Schneider 140CPU31110-2

The Schneider Electric 140CPU31110 is a high-performance processor module from the Modicon M340 series, engineered to support advanced industrial automation systems. This programmable logic controller (PLC) processor is designed for applications that demand precision, reliability, and high-speed processing. With its impressive capabilities, the 140CPU31110 is an excellent solution for managing complex industrial systems, whether you're working with automated production lines, energy management systems, building automation, or process control applications.

Featuring Ethernet communication, Modbus TCP/IP connectivity, and expandable memory, the 140CPU31110 is tailored for industries such as automotive, oil and gas, food and beverage, and manufacturing. It offers support for up to 2048 I/O points, enabling it to handle large-scale systems with numerous input and output devices.

Thanks to its 2 MHz processing speed and high memory capacity, the 140CPU31110 provides fast, reliable control over your system, ensuring minimal downtime and optimized operations. Its scalable design allows it to grow with your needs, making it ideal for both medium-sized and larger applications.

Key Features

Processor Type: The 140CPU31110 is part of the Modicon M340 family of processors, designed for high-performance control in industrial applications requiring complex and real-time processing capabilities.
High-Speed Processing: Powered by a 2 MHz processor, the 140CPU31110 enables fast execution of control tasks, ensuring efficient handling of real-time processes.
Memory: The processor comes with 4 MB of embedded memory that can be expanded through an SD card to handle larger programs and data.
Communication Ports: Offers Ethernet communication and Modbus TCP/IP support, allowing easy integration into Ethernet-based control systems and enabling remote access for programming and monitoring.
I/O Capacity: Supports up to 2048 I/O points, making it ideal for larger and scalable systems with numerous inputs and outputs.
Real-Time Diagnostics: Built-in diagnostic tools allow for continuous monitoring of system performance, providing real-time alerts to detect and resolve issues before they impact production.
Scalability: Easily integrates additional I/O modules and memory for expansion as your automation needs grow.

Technical Specifications

Specification	Details
Model	140CPU31110
Processor Type	Modicon M340 CPU
Processor Speed	2 MHz (max processing speed)
Program Memory	4 MB
Communication Ports	2 x Ethernet (Modbus TCP/IP)
I/O Capacity	Up to 2048 I/O points (expandable)
Memory Expansion	1 x SD card slot for memory expansion
Embedded Ethernet	Yes, for Ethernet communication and remote programming
Diagnostics	Built-in diagnostic capabilities for monitoring system health
Operating Temperature Range	0°C to 60°C (32°F to 140°F)
Storage Temperature Range	-40°C to 85°C (-40°F to 185°F)
Protection Rating	IP20 (for module only)
Dimensions (L x W x H)	160 x 100 x 120 mm
Weight	0.6 kg (1.32 lbs)

Recommended Related Models

Schneider Electric 140CPU31100 – A lower-end processor in the Modicon M340 series that offers slightly less processing speed and memory for smaller applications.
Schneider Electric 140CPU31303 – A higher-performance version of the 140CPU31110, offering greater memory and faster processing speeds for more demanding applications.
Schneider Electric 140CPS12400 – A 24V DC power supply module suitable for powering Modicon M340 PLC systems, ensuring continuous, stable power for critical applications.
Schneider Electric 140CRA31200 – A Modicon M340 CPU ideal for large-scale industrial applications that require advanced I/O module integration and faster control capabilities.

Popular Schneider Electric Models

Modicon M340 PLC – The Modicon M340 family of PLCs provides a flexible and scalable solution for automation needs, with the 140CPU31110 offering high-speed processing and connectivity for mid to large-scale applications.
Modicon M580 ePAC – A higher-performance Ethernet PLC designed for critical process control applications, perfect for systems requiring distributed control and advanced communication capabilities.
Schneider Electric 140CPU11302 – A lower-performance version of the 140CPU31110 designed for applications requiring less memory and processing power.
Schneider Electric 140CPS51100 – A high-output 24V DC power supply ideal for high-demand automation systems powered by Modicon M340 processors.

Applications

The 140CPU31110 is designed for industrial automation systems that require precise control and real-time decision-making. It excels in applications such as:

Industrial Automation: Used to control robotic systems, assembly lines, packaging equipment, and material handling systems in industries like automotive, electronics, and consumer goods manufacturing.
Process Control: Applied in chemical processing, food and beverage manufacturing, pharmaceuticals, and oil refineries, where precise monitoring and control of processes are critical for safety and efficiency.
Energy Management: Essential in smart grid systems, energy monitoring, renewable energy solutions, and power distribution, helping to optimize energy consumption and improve operational efficiency.
Building Automation: Used to manage HVAC systems, lighting, fire safety, and security systems in commercial buildings, factories, and industrial plants.
Transportation Systems: Applied in railway systems, airports, and logistics, optimizing traffic control, schedule management, and system integration for seamless operations.

Advantages

High-Speed Processing: The 2 MHz processing speed ensures fast control of complex industrial processes, delivering real-time results.
Ethernet Communication: Offers Ethernet and Modbus TCP/IP support, ensuring easy integration into existing Ethernet-based control systems and allowing for remote monitoring and programming.
Scalable I/O Capacity: Supports up to 2048 I/O points, ideal for large-scale applications requiring extensive input and output devices.
Real-Time Diagnostics: Built-in diagnostic tools provide continuous system health monitoring, ensuring system reliability and minimizing downtime.
Expandable Memory: Comes with 4 MB of embedded memory, with the option for expansion through an SD card, making it adaptable to a wide range of system requirements.
Compact Design: Despite its powerful features, the 140CPU31110 has a compact form factor of 160 x 100 x 120 mm, making it ideal for systems with limited space.
Flexible Integration: Easily integrates with other Schneider Electric devices and third-party equipment, offering versatile and scalable automation solutions.
Energy-Efficient: Optimizes energy usage in large-scale automation systems, reducing operational costs and improving energy efficiency.
Cost-Effective: The 140CPU31110 offers high-end capabilities at a competitive price, making it a cost-effective solution for medium to large-scale automation systems.
Reliable Performance: Designed for high uptime, the 140CPU31110 ensures reliable operation in demanding industrial environments.

Technical FAQs

What is the processing speed of the 140CPU31110?
The 140CPU31110 operates at 2 MHz, providing fast execution and real-time control for demanding applications.
How much memory does the 140CPU31110 have?
The processor comes with 4 MB of embedded memory, which can be expanded using an SD card.
How many I/O points can the 140CPU31110 support?
The 140CPU31110 supports up to 2048 I/O points, making it suitable for large industrial systems.
What communication protocols does the 140CPU31110 support?
The 140CPU31110 supports Ethernet and Modbus TCP/IP communication protocols for easy integration and remote control.
Can the memory of the 140CPU31110 be expanded?
Yes, the 140CPU31110 can be expanded using an SD card, allowing for increased storage capacity.
What is the operating temperature range of the 140CPU31110?
