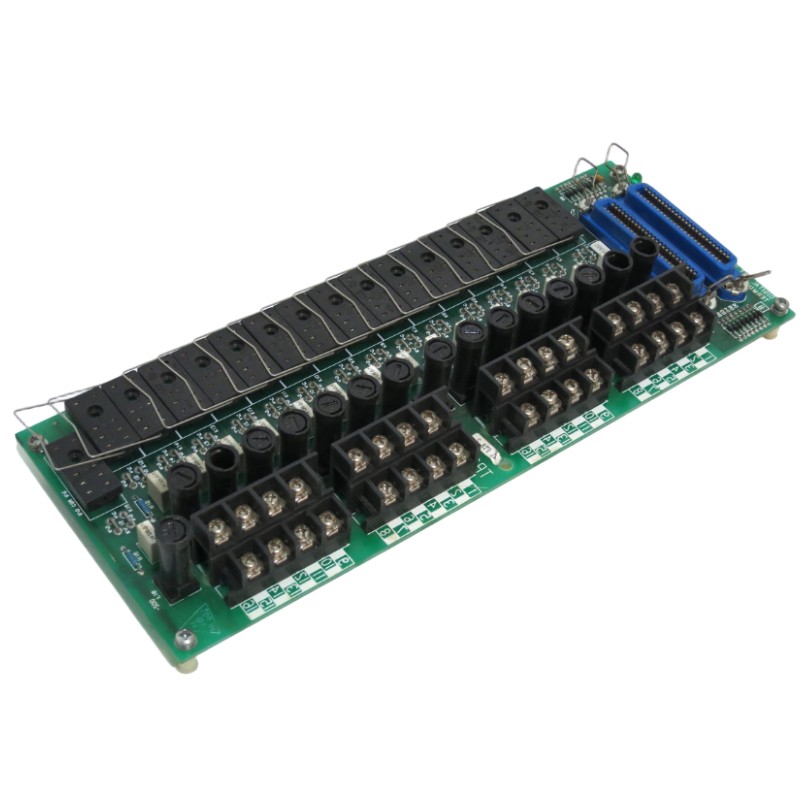

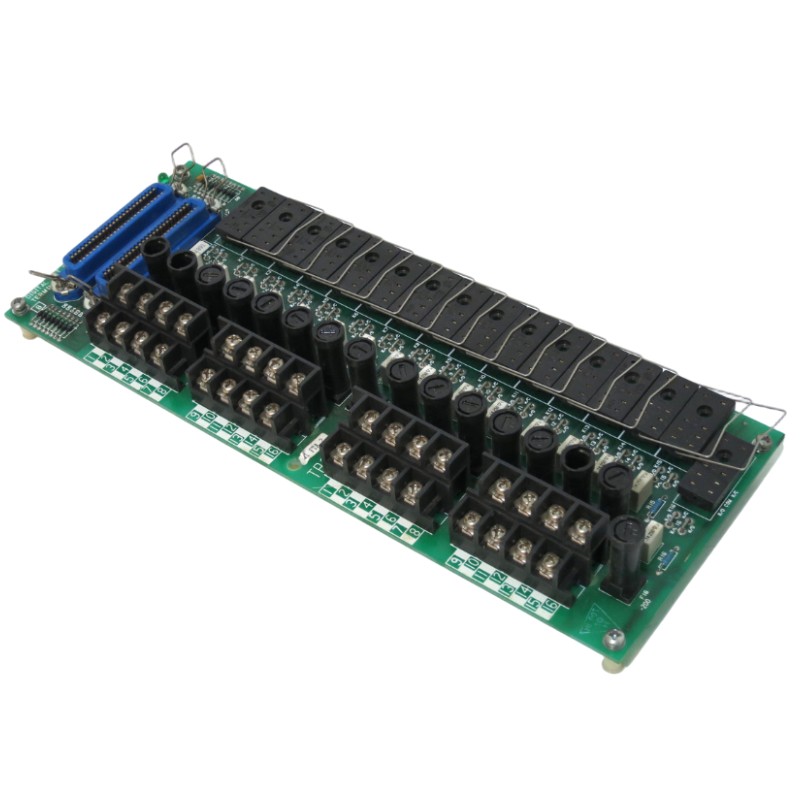

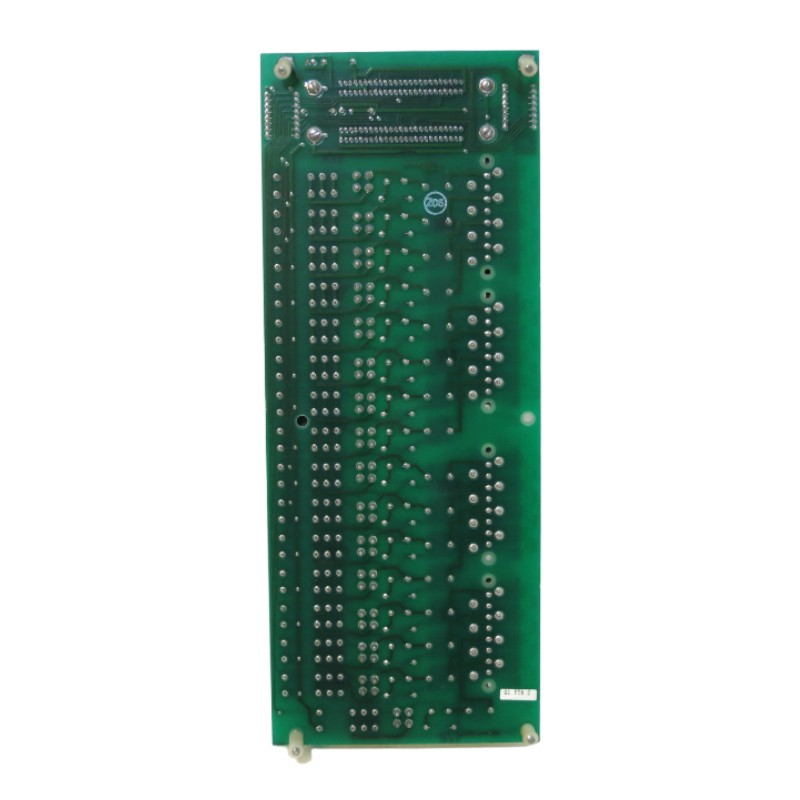

Honeywell MU-TDOR22 51304427-100 Digital Relay Output Field Termination Components

Applications

The Honeywell MU-TDOR22 Digital Relay Output Field Termination Components are designed to provide reliable field wiring and signal termination for digital relay output channels in industrial control systems. They are widely used in:

• Relay-based output control for industrial automation

• Interface between controllers and field devices

• Process control and safety systems

• Oil & gas, chemical, and power plant operations

• Distributed control system (DCS) signal termination

Advantages

• Reliable relay output termination

• Robust industrial-grade construction

• Compatible with Honeywell control platforms

• Simplifies field wiring and maintenance

• Compact design for cabinet installation

• Stable signal transmission

• Designed for long-term industrial operation

Technical FAQs

1. What is the main function of this module?
   It provides field termination for digital relay output signals.

2. What are the physical dimensions?
   280 × 120 × 50 mm.

3. What is the weight?
   0.42 kg.

4. Is it suitable for industrial environments?
   Yes, it is built for harsh industrial conditions.

5. Is it compatible with Honeywell systems?
   Yes, it is designed for Honeywell control platforms.

6. What type of outputs does it support?
   Digital relay output signals.

7. Does it simplify wiring?
   Yes, it helps organize and secure field connections.

8. Is it easy to install in cabinets?
   Yes, its compact design supports efficient panel mounting.

9. Is it suitable for continuous operation?
   Yes, it is engineered for long-term industrial use.

10. Does it improve system reliability?
    Yes, by ensuring stable and secure relay output connections.
