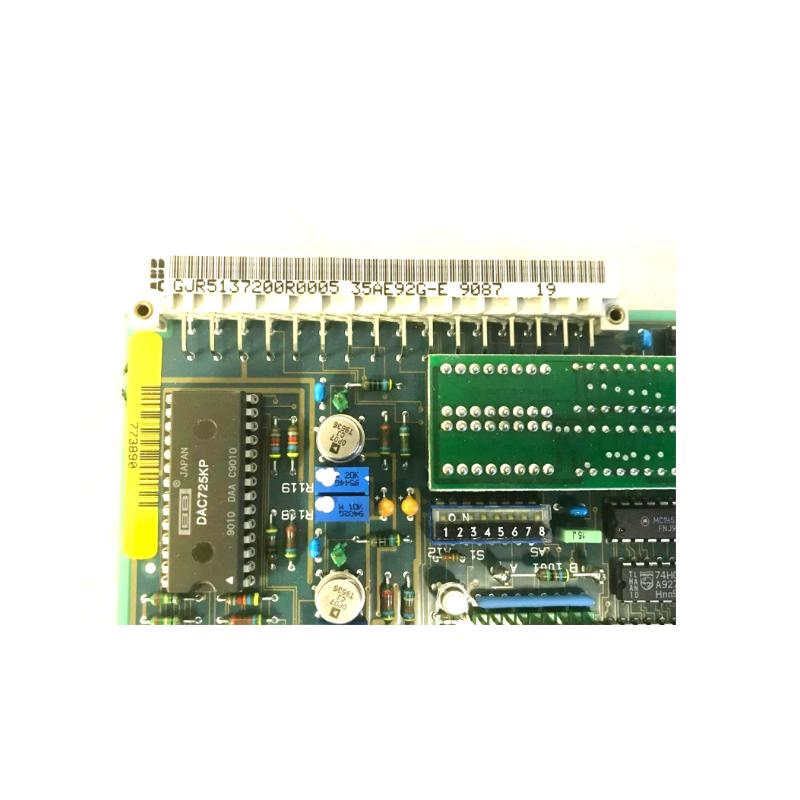

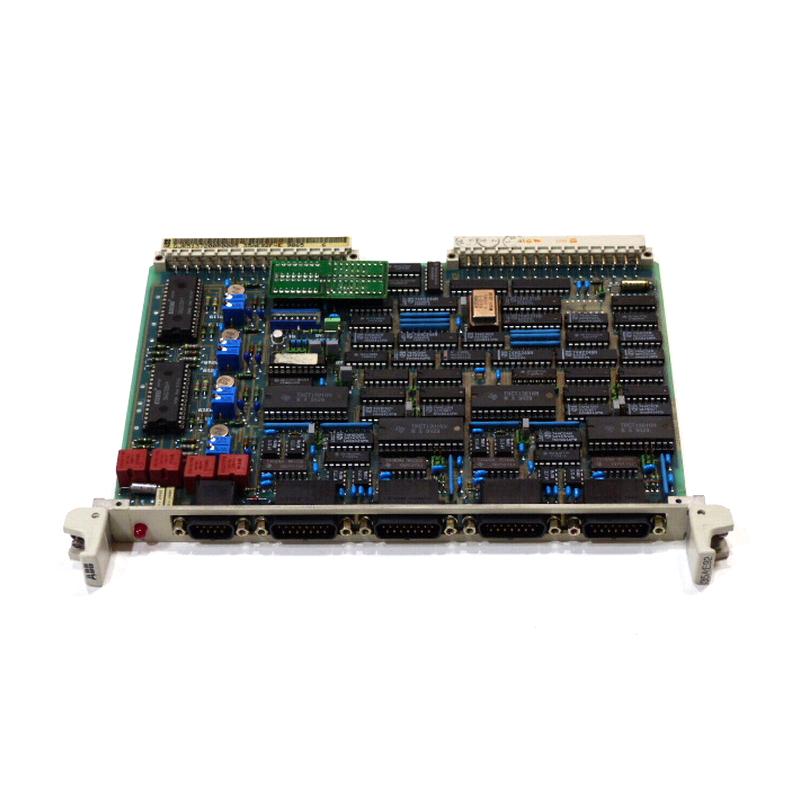

ABB 35AE92 Analog Output Module

Introduction

The ABB 35AE92 is a high-precision analog output module designed for industrial automation systems requiring accurate and reliable control of analog devices. It provides 8 analog outputs and operates with 24 VDC, making it suitable for applications in diverse industries, including process control, machinery automation, and energy management. The 35AE92 module's DIN rail mounting feature ensures easy and secure installation in control cabinets, optimizing space and ensuring stable performance. It supports standard analog signals, such as 4-20mA or 0-10V, making it compatible with a wide range of industrial devices. Built with robust protection features such as short-circuit protection, the 35AE92 is designed to withstand harsh industrial environments while maintaining high performance.

Technical Specifications

Specification	Details
Model	35AE92
Module Type	Analog Output Module
Number of Outputs	8 Analog Outputs
Output Voltage/Current	0-10V / 4-20mA
Input Voltage	24 VDC
Size (W x H x D)	120 x 120 x 80 mm
Weight	0.9 kg
Mounting Type	DIN Rail
Operating Temperature	-20°C to +60°C
Protection	Short-circuit, Overload, Thermal Protection
Certifications	CE, UL, RoHS

Recommended Related Models

Model	Module Type	Number of Outputs	Output Voltage/Current
ABB 35AE93	Analog Output Module	8 Analog Outputs	0-10V / 4-20mA
ABB 35AE94	Analog Output Module	16 Analog Outputs	0-10V / 4-20mA
ABB 35AE91	Analog Output Module	4 Analog Outputs	0-10V / 4-20mA

Popular ABB Models

Model	Module Type	Number of Outputs	Output Voltage/Current
ABB 35AE92	Analog Output Module	8 Analog Outputs	0-10V / 4-20mA
ABB 35AE95	Analog Output Module	8 Analog Outputs	0-10V / 4-20mA
ABB 35AE90	Analog Output Module	4 Analog Outputs	0-10V / 4-20mA

Applications

Process Control: The ABB 35AE92 module is perfect for process control systems where precise analog signals are needed to control field devices like valves, actuators, and flow meters.
Machine Automation: It is commonly used in machine automation applications where accurate analog control is essential for regulating motor speed, temperature, or pressure within automated systems.
Energy Management: The module can be used in energy management systems to control devices such as transformers, circuit breakers, and energy meters, allowing for efficient monitoring and control of energy systems.
Building Automation: The 35AE92 module is ideal for building automation systems that require analog signal control for heating, ventilation, air conditioning (HVAC), and lighting systems.
Environmental Control: The module is well-suited for environmental control applications, such as monitoring and controlling systems like water treatment plants, HVAC systems, and renewable energy installations.

Advantages

High-Precision Control: The 35AE92 module provides 8 analog outputs, offering accurate and stable control over field devices that require precise analog signals, such as actuators and sensors.
Flexible Output Types: It supports multiple output types, including 0-10V and 4-20mA, ensuring compatibility with a wide range of industrial devices.
Space-Saving Design: With its DIN rail mounting, the module ensures easy and space-efficient installation in control cabinets, making it ideal for compact system designs.
Wide Operating Range: The 35AE92 can operate in environments with temperatures ranging from -20°C to +60°C, ensuring reliable performance in both cold and hot industrial environments.
Robust Protection Features: Built-in short-circuit, overload, and thermal protection ensure that the module and connected devices are protected against electrical faults, enhancing durability and system reliability.
International Certifications: The module complies with international standards, including CE, UL, and RoHS, ensuring safety, quality, and environmental sustainability.

Technical FAQs

What is the input voltage for the ABB 35AE92 module? The input voltage is 24 VDC.
How many analog outputs does the ABB 35AE92 have? The module features 8 analog outputs.
What types of analog outputs are supported by the ABB 35AE92? It supports 0-10V and 4-20mA analog output types.
What are the dimensions of the ABB 35AE92 module? The module measures 120 x 120 x 80 mm.
What is the weight of the ABB 35AE92? The weight is 0.9 kg.
What is the operating temperature range for the ABB 35AE92 module? The operating temperature range is -20°C to +60°C.
How is the ABB 35AE92 mounted? The module uses DIN rail mounting, providing secure and efficient installation in control panels.
Is the ABB 35AE92 module certified for global standards? Yes, it is CE, UL, and RoHS certified.
Can the ABB 35AE92 module be used in process control systems? Yes, the 35AE92 is ideal for use in process control systems, where precise analog signals are needed to control devices like valves and actuators.
What protection features does the ABB 35AE92 include? The module includes short-circuit protection, overload protection, and thermal protection, ensuring the safety and reliability of both the module and the connected devices.
