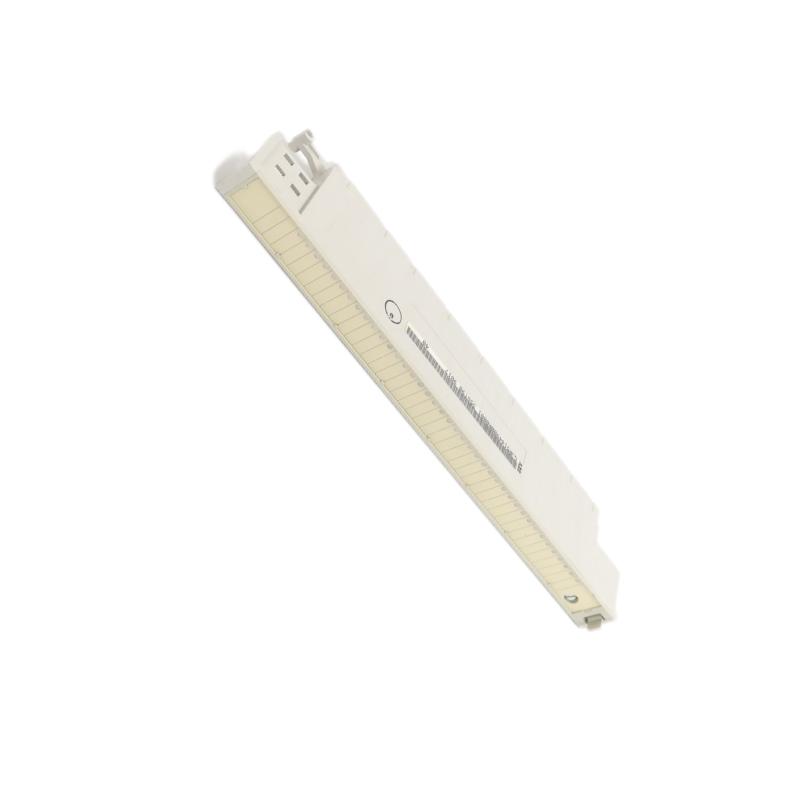

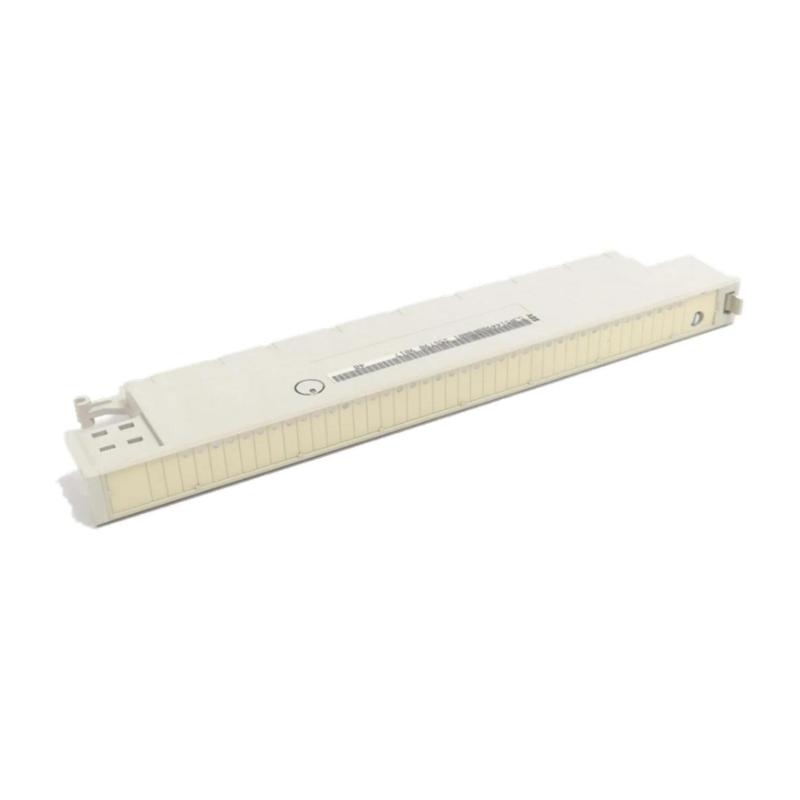

ABB 35ST90 Analog Input Module

Introduction

The ABB 35ST90 is a high-performance analog input module designed for industrial automation systems that require accurate and reliable data acquisition. With 8 analog inputs, it is perfect for applications that need to monitor critical process variables such as temperature, pressure, flow, and more. The module supports both 0-10V and 4-20mA input signals, making it compatible with a wide range of industrial sensors and devices.

This module operates with a 24 VDC input voltage and features DIN rail mounting, allowing for quick and easy integration into control panels. The 35ST90 is built with robust protection features such as short-circuit protection, overload protection, and thermal protection, ensuring safe and reliable operation in harsh industrial environments. Its wide operating temperature range from -20°C to +60°C makes it suitable for use in a variety of industrial settings.

Technical Specifications

Specification	Details
Model	35ST90
Module Type	Analog Input Module
Number of Inputs	8 Analog Inputs
Input Voltage/Current	0-10V / 4-20mA
Input Voltage	24 VDC
Size (W x H x D)	120 x 120 x 80 mm
Weight	0.9 kg
Mounting Type	DIN Rail
Operating Temperature	-20°C to +60°C
Protection	Short-circuit, Overload, Thermal Protection
Certifications	CE, UL, RoHS

Recommended Related Models

Model	Module Type	Number of Inputs	Input Voltage/Current
ABB 35ST91	Analog Input Module	16 Analog Inputs	0-10V / 4-20mA
ABB 35ST92	Analog Input Module	16 Analog Inputs	0-10V / 4-20mA
ABB 35ST93	Analog Input Module	8 Analog Inputs	0-10V / 4-20mA

Popular ABB Models

Model	Module Type	Number of Inputs	Input Voltage/Current
ABB 35ST90	Analog Input Module	8 Analog Inputs	0-10V / 4-20mA
ABB 35ST95	Analog Input Module	8 Analog Inputs	0-10V / 4-20mA
ABB 35ST96	Analog Input Module	4 Analog Inputs	0-10V / 4-20mA

Applications

Process Control: The ABB 35ST90 module is perfect for process control systems, offering high-precision analog input to monitor critical variables like temperature, pressure, and flow.
Machine Automation: The module is commonly used in machine automation systems to measure motor speed, pressure, temperature, and other parameters vital to machinery operation.
Energy Management: It is ideal for energy management applications, acquiring analog signals from devices like energy meters and transformers for optimized energy distribution.
Building Automation: The 35ST90 module is useful in building automation systems for monitoring environmental variables such as HVAC systems, temperature sensors, and lighting.
Environmental Control: It is highly effective for environmental control applications in systems like water treatment plants, renewable energy systems, and environmental monitoring.

Advantages

High Precision: The 35ST90 module offers 8 analog inputs, ensuring precise data acquisition from field devices for accurate monitoring and control.
Versatile Input Types: It supports both 0-10V and 4-20mA input signals, providing compatibility with a wide range of sensors and measurement devices.
Space-Saving Design: With DIN rail mounting, the module is easy to install in control panels, optimizing space usage and enhancing system organization.
Wide Operating Temperature: The module operates effectively in a broad temperature range of -20°C to +60°C, making it adaptable to various environmental conditions.
Robust Protection Features: The 35ST90 includes short-circuit protection, overload protection, and thermal protection, ensuring long-term reliability and safety under extreme conditions.
Global Certifications: The module meets CE, UL, and RoHS standards, making it suitable for international markets and compliant with safety and environmental regulations.
