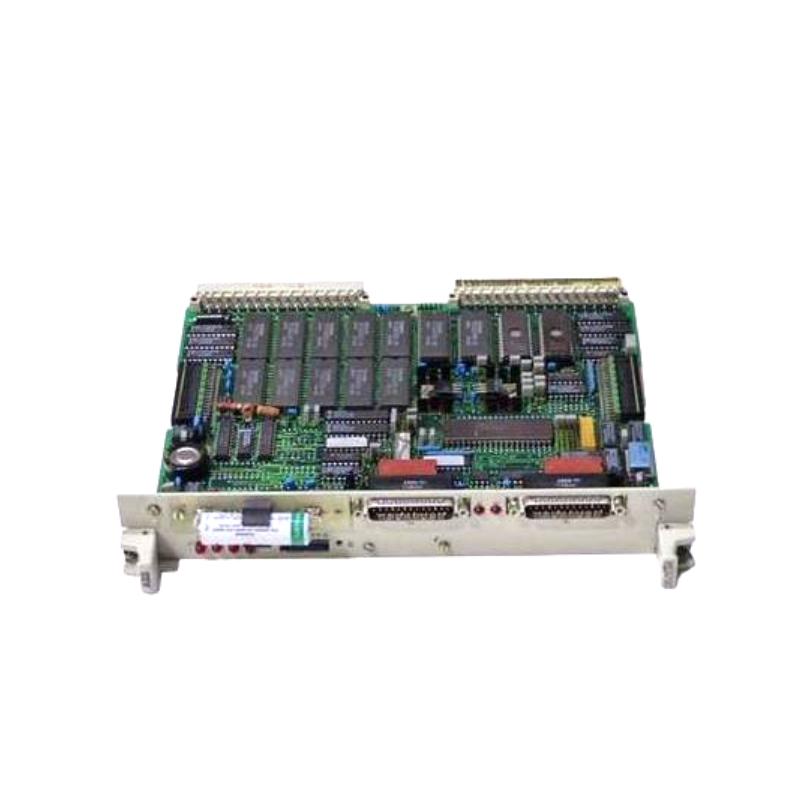

ABB 35ZE94F Analog Input Module

Introduction

The ABB 35ZE94F is a versatile analog input module designed for precision data acquisition in industrial automation systems. Equipped with 16 analog inputs, the module is ideal for monitoring a wide variety of parameters such as temperature, pressure, flow, and level in applications ranging from process control to machine automation. The 35ZE94F supports 0-10V and 4-20mA input signals, making it compatible with a wide range of field devices and sensors.

Operating with a 24 VDC input voltage, the module is easy to integrate into existing control systems. It features a DIN rail mounting design for efficient installation in standard industrial control cabinets. The 35ZE94F module is designed with robust protection features including short-circuit protection, overload protection, and thermal protection, ensuring safe and reliable operation even in demanding industrial environments. Its broad operating temperature range from -20°C to +60°C makes it suitable for use in a variety of industrial environments.

Technical Specifications

Specification	Details
Model	35ZE94F
Module Type	Analog Input Module
Number of Inputs	16 Analog Inputs
Input Voltage/Current	0-10V / 4-20mA
Input Voltage	24 VDC
Size (W x H x D)	160 x 120 x 85 mm
Weight	1.2 kg
Mounting Type	DIN Rail
Operating Temperature	-20°C to +60°C
Protection	Short-circuit, Overload, Thermal Protection
Certifications	CE, UL, RoHS

Recommended Related Models

Model	Module Type	Number of Inputs	Input Voltage/Current
ABB 35ZE95F	Analog Input Module	16 Analog Inputs	0-10V / 4-20mA
ABB 35ZE96F	Analog Input Module	16 Analog Inputs	0-10V / 4-20mA
ABB 35ZE97F	Analog Input Module	8 Analog Inputs	0-10V / 4-20mA

Popular ABB Models

Model	Module Type	Number of Inputs	Input Voltage/Current
ABB 35ZE94F	Analog Input Module	16 Analog Inputs	0-10V / 4-20mA
ABB 35ZE95F	Analog Input Module	16 Analog Inputs	0-10V / 4-20mA
ABB 35ZE92F	Analog Input Module	8 Analog Inputs	0-10V / 4-20mA

Applications

Process Control: The ABB 35ZE94F is ideal for use in process control systems, providing precise analog input for monitoring critical process variables like temperature, pressure, and flow.
Machine Automation: The module is widely used in machine automation systems to acquire data from sensors that monitor machine parameters such as speed, temperature, and pressure.
Energy Management: It is perfect for energy management applications, enabling accurate monitoring of energy consumption and system performance in power generation, distribution, and usage.
Building Automation: The 35ZE94F can be used in building automation systems to monitor environmental conditions, including HVAC systems, lighting, and occupancy sensors.
Environmental Monitoring: The module is suitable for environmental monitoring applications, such as water treatment plants and renewable energy systems, to acquire and process environmental data.

Advantages

High-Precision Inputs: The 35ZE94F offers 16 analog inputs, allowing it to handle a wide range of input signals with high accuracy, essential for critical process monitoring and control.
Versatile Signal Types: Supporting both 0-10V and 4-20mA input signals, the module is compatible with a wide variety of field devices and sensors.
Compact Design: With DIN rail mounting, the module is space-efficient, making it easy to install and organize within control cabinets.
Wide Operating Temperature: The 35ZE94F operates effectively in temperatures ranging from -20°C to +60°C, making it suitable for diverse industrial environments.
Comprehensive Protection: The module is equipped with short-circuit protection, overload protection, and thermal protection, ensuring the safety of both the module and the connected devices.
Global Standards Compliance: Certified for CE, UL, and RoHS compliance, the 35ZE94F meets international standards for quality, safety, and environmental impact.
