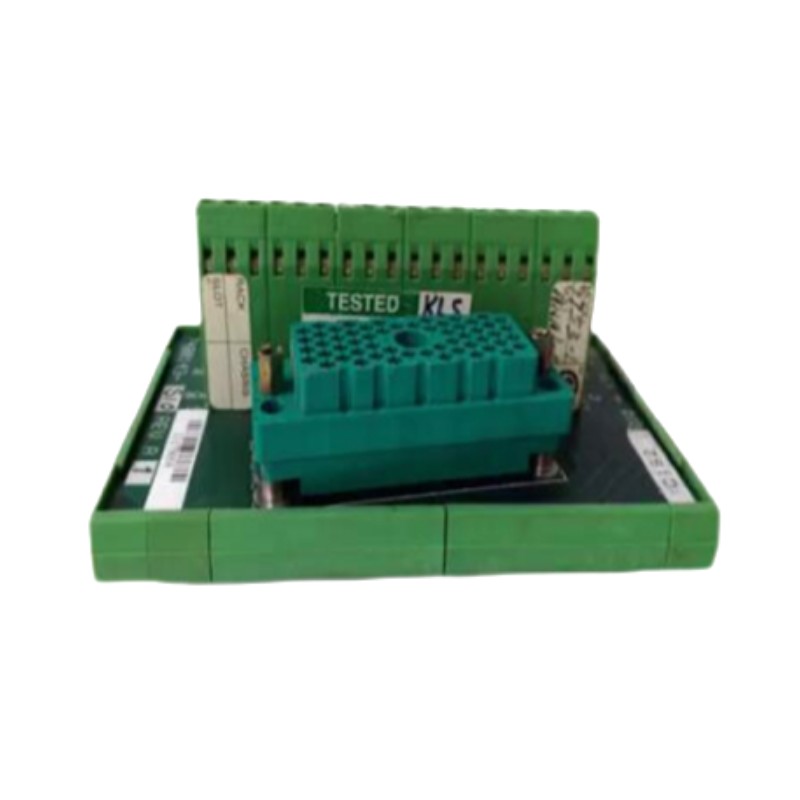

The Triconex 9753-110 I/O Module is a highly reliable and fault-tolerant input/output module designed to integrate seamlessly into Triconex Tricon safety and control systems. Offering precise signal processing and real-time control, this module ensures the efficient and safe operation of critical industrial applications, where safety and operational continuity are paramount.

Engineered for use in industries such as oil & gas, chemical processing, power generation, and water treatment, the 9753-110 module processes both analog and digital signals from various field devices such as sensors and actuators, providing accurate, real-time feedback for effective monitoring and control. With its robust fault tolerance and easy integration with Triconex Tricon controllers, the 9753-110 is the ideal choice for industries requiring continuous, safe, and optimized performance.

Technical Specifications

Feature	Specification
Model	9753-110
I/O Types	Digital Input, Digital Output, Analog Input, Analog Output
Input Range	0-20 mA (Analog Input), Digital Inputs (Dry Contact)
Output Range	4-20 mA (Analog Output), Digital Outputs (Relay or TTL)
Mounting	Rack Mount (Compatible with Tricon system)
Dimensions (WxHxD)	2.0” x 6.5” x 10.0” (51 mm x 165 mm x 254 mm)
Weight	2.0 lbs (0.91 kg)
Power Supply	24V DC
Accuracy	±0.1% of Full Scale (Analog Input)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Protection	IP20 (dustproof and water-resistant)

Recommended Related Models

Triconex 9758-110 – A higher-capacity version offering additional diagnostic features and a larger number of I/O channels for larger applications.
Triconex 9752-110 – A high-performance I/O module with expanded features designed for complex and high-throughput systems.
Triconex Tricon Controller – The central controller of the Triconex safety system that ensures optimal performance when integrated with the 9753-110 I/O module.

Popular Triconex Models

Triconex Tricon Controller: The Triconex Tricon controller manages the real-time processing and fault-tolerant operation of the 9753-110 I/O module, ensuring seamless operation in safety-critical applications.
Triconex 9758-110: Designed for larger, more complex systems, the 9758-110 provides higher I/O capacity and extended diagnostic features to support more demanding applications.
Triconex 9752-110: Ideal for systems that require higher throughput and more I/O channels, the 9752-110 module expands the capabilities of the 9753-110 with increased processing power and capacity.
Triconex TMR System: The Triple Modular Redundancy (TMR) system ensures the highest level of fault tolerance and reliability for critical systems, offering peace of mind in demanding operational environments.

Applications

The Triconex 9753-110 I/O Module is specifically designed for industries that rely on real-time monitoring and control of critical processes. Key applications include:

Oil & Gas: In oil and gas operations, the 9753-110 is used to monitor critical parameters such as pressure, temperature, and flow rate across upstream, midstream, and downstream systems, ensuring safe and efficient operation.
Chemical Processing: This module is used to monitor and control chemical reactions and process parameters like flow, temperature, and pressure, ensuring that production processes are safe, efficient, and compliant with industry regulations.
Power Generation: In power plants, the 9753-110 helps monitor and control critical parameters such as temperature, pressure, and flow, ensuring that systems operate optimally while meeting safety and regulatory standards.
Water and Wastewater Treatment: In water treatment plants, this module ensures real-time monitoring of water quality, flow rates, and pressure, maintaining compliance with environmental standards and ensuring public safety.
Manufacturing Automation: The 9753-110 is also used in manufacturing automation to control production machinery, reduce downtime, and enhance operational efficiency by providing reliable signal processing.

Advantages

High Fault Tolerance: The 9753-110 I/O module is designed with fault-tolerant features, ensuring continued operation even in the event of hardware failures. This is critical for industries where safety and uptime are non-negotiable.
Precision and Accuracy: With ±0.1% accuracy for analog inputs, the module ensures precise data processing and control, ideal for high-precision applications in critical environments.
Flexible I/O Configuration: The 9753-110 processes both analog and digital signals, making it adaptable to a wide range of sensors, actuators, and field devices used in industrial control systems.
Compact and Robust Design: With an IP20 rating, the module is dust-resistant and designed to operate reliably in industrial environments. Its compact size makes it easy to integrate into existing systems.
Wide Temperature Range: The 9753-110 operates within a wide temperature range of -20°C to +60°C, ensuring its performance even in extreme environmental conditions.
Seamless Integration: The module integrates smoothly with Triconex Tricon controllers, providing a unified system for fault-tolerant control, monitoring, and automation.
Non-Volatile Memory: Critical system data is stored in non-volatile memory, ensuring that data is retained even during power interruptions, preventing loss of important process information.

Technical FAQs

What types of signals can the Triconex 9753-110 process?
The 9753-110 supports both analog signals (4-20mA) and digital signals (dry contacts), making it versatile for a range of field devices and sensors.
What is the accuracy of the analog inputs on the 9753-110?
The module provides ±0.1% accuracy for analog inputs, ensuring precise control and reliable data processing in critical applications.
What power supply does the Triconex 9753-110 require?
The 9753-110 operates on a 24V DC power supply, which is typical for most industrial automation systems.
Can the Triconex 9753-110 be used in hazardous environments?
The 9753-110 has an IP20 rating, which makes it dust-resistant. However, additional protective measures may be required for applications in highly hazardous or extreme environments.
What is the mounting configuration for the 9753-110?
The module is designed for rack mounting, allowing easy integration into a Triconex control panel or system rack.
How does the Triconex 9753-110 integrate with other Triconex systems?
The module integrates seamlessly with Triconex Tricon controllers and other Triconex system components, ensuring optimal performance and safety for mission-critical applications.
What industries benefit most from the 9753-110?
The 9753-110 is ideal for oil & gas, chemical processing, power generation, water treatment, and manufacturing automation systems that require high levels of reliability, safety, and accuracy.
What is the operating temperature range for the 9753-110?
The 9753-110 operates in a temperature range of -20°C to +60°C, making it suitable for various industrial environments.
What are the dimensions of the Triconex 9753-110?
The 9753-110 measures 51 mm (W) x 165 mm (H) x 254 mm (D), providing a compact design for easy integration into control system racks.
What is the weight of the Triconex 9753-110?
The 9753-110 weighs 2.0 lbs (0.91 kg), making it easy to handle during installation and integration into existing systems.
