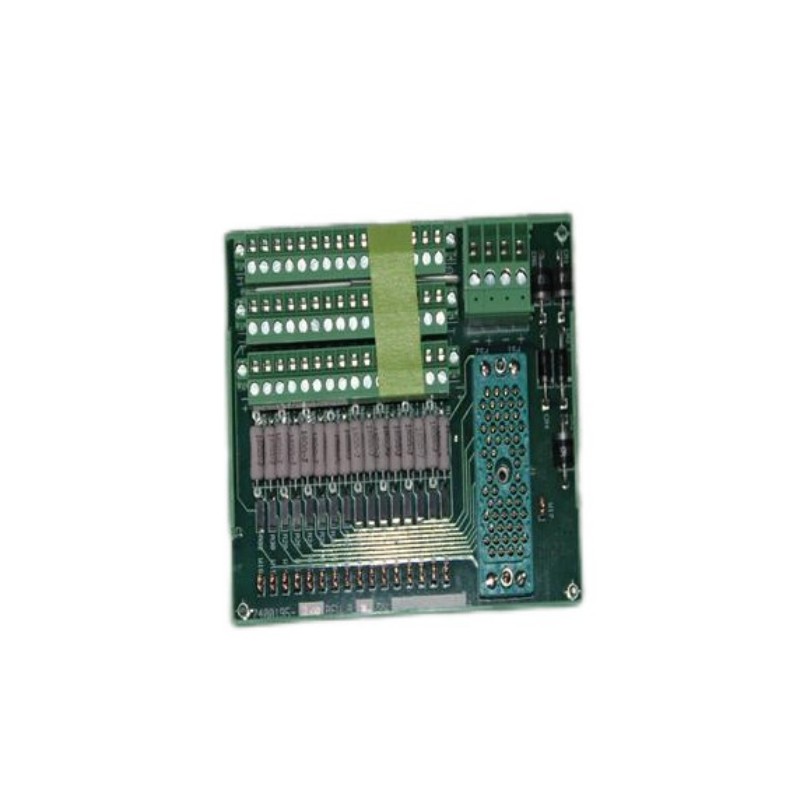

The Triconex 9771-210 I/O Module is a vital part of Schneider Electric’s Triconex safety and control systems, designed to meet the demanding needs of industrial applications where safety, reliability, and real-time processing are non-negotiable. This module delivers advanced I/O processing for both analog and digital signals, enabling seamless integration into Triconex Tricon controllers for fault-tolerant and high-precision control systems.

The 9771-210 is perfect for industries like oil & gas, chemical processing, power generation, and water treatment, where operational uptime, continuous monitoring, and rapid fault detection are critical. With its robust design, flexible I/O capabilities, and industry-leading diagnostics, the 9771-210 is engineered to perform reliably in even the most challenging environments.

Technical Specifications

Feature	Specification
Model	9771-210
I/O Types	Digital Input, Digital Output, Analog Input, Analog Output
Input Range	0-20 mA (Analog Input), Digital Inputs (Dry Contact)
Output Range	4-20 mA (Analog Output), Digital Outputs (Relay or TTL)
Mounting	Rack Mount (Compatible with Tricon system)
Dimensions (WxHxD)	2.0” x 6.5” x 10.0” (51 mm x 165 mm x 254 mm)
Weight	2.0 lbs (0.91 kg)
Power Supply	24V DC
Accuracy	±0.1% of Full Scale (Analog Input)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Protection	IP20 (dustproof and water-resistant)

Recommended Related Models

Triconex 9758-110 – A high-performance I/O module designed to support complex and high-capacity applications with expanded diagnostic features and greater I/O capacity.
Triconex 9752-110 – An advanced I/O module offering enhanced processing capabilities, ideal for applications requiring additional I/O channels and scalability.
Triconex Tricon Controller – The central controller of the Triconex system, ensuring high-reliability control and communication with the 9771-210 I/O module for seamless integration.

Popular Triconex Models

Triconex Tricon Controller: The Triconex Tricon controller integrates with the 9771-210 I/O module, providing fault-tolerant and real-time control of critical systems.
Triconex 9758-110: Designed for larger and more complex applications, the 9758-110 offers a higher number of I/O channels and expanded diagnostic capabilities.
Triconex 9752-110: A high-performance option for systems that require more I/O points, ideal for complex industrial applications.
Triconex TMR System: The Triple Modular Redundancy (TMR) system ensures system reliability and fault tolerance, making it ideal for mission-critical industrial processes.

Applications

The Triconex 9771-210 I/O Module is optimized for industries where reliable real-time monitoring and fault-tolerant control are essential:

Oil & Gas: The 9771-210 plays a crucial role in monitoring and controlling critical parameters such as pressure, flow, and temperature across upstream, midstream, and downstream oil and gas operations.
Chemical Processing: In chemical plants, the module helps monitor and control chemical reactions and process parameters like pressure, temperature, and flow rates, ensuring that operations stay within safe and regulated limits.
Power Generation: In power generation facilities, the 9771-210 processes input signals from sensors on turbines, generators, boilers, and other equipment to ensure safe and efficient operation.
Water and Wastewater Treatment: The module is used in water treatment plants to monitor parameters such as flow, pressure, and chemical levels, ensuring safe water treatment operations and compliance with environmental regulations.
Manufacturing Automation: The 9771-210 is ideal for manufacturing systems that require precise control and monitoring of production processes, improving system reliability and reducing downtime.

Applications

The Triconex 9771-210 I/O Module is optimized for industries where reliable real-time monitoring and fault-tolerant control are essential:

Oil & Gas: The 9771-210 plays a crucial role in monitoring and controlling critical parameters such as pressure, flow, and temperature across upstream, midstream, and downstream oil and gas operations.
Chemical Processing: In chemical plants, the module helps monitor and control chemical reactions and process parameters like pressure, temperature, and flow rates, ensuring that operations stay within safe and regulated limits.
Power Generation: In power generation facilities, the 9771-210 processes input signals from sensors on turbines, generators, boilers, and other equipment to ensure safe and efficient operation.
Water and Wastewater Treatment: The module is used in water treatment plants to monitor parameters such as flow, pressure, and chemical levels, ensuring safe water treatment operations and compliance with environmental regulations.
Manufacturing Automation: The 9771-210 is ideal for manufacturing systems that require precise control and monitoring of production processes, improving system reliability and reducing downtime.

Advantages

Fault-Tolerant Operation: The 9771-210 is engineered for fault tolerance, allowing continued operation even in the event of a hardware failure. This is especially crucial in industries where system downtime is not acceptable.
High Precision: With ±0.1% accuracy for analog inputs, the module ensures precise data acquisition and processing, which is essential for accurate control and monitoring in mission-critical environments.
Flexible I/O Capabilities: The 9771-210 processes both analog (4-20mA) and digital (dry contact) signals, making it highly adaptable to various types of field devices, sensors, and actuators.
Compact and Durable: The IP20-rated enclosure provides dust protection and ensures the module’s reliability in challenging environments while maintaining a compact form factor for easy integration into existing control systems.
Wide Temperature Range: The 9771-210 operates within a temperature range of -20°C to +60°C, making it suitable for diverse industrial environments, from extreme cold to high heat conditions.
Non-Volatile Memory: Critical system data is stored in non-volatile memory, ensuring that no important information is lost during power outages or system reboots.
Seamless Integration: The 9771-210 integrates easily with Triconex Tricon controllers and other modules, offering a unified system for efficient real-time control and monitoring.
