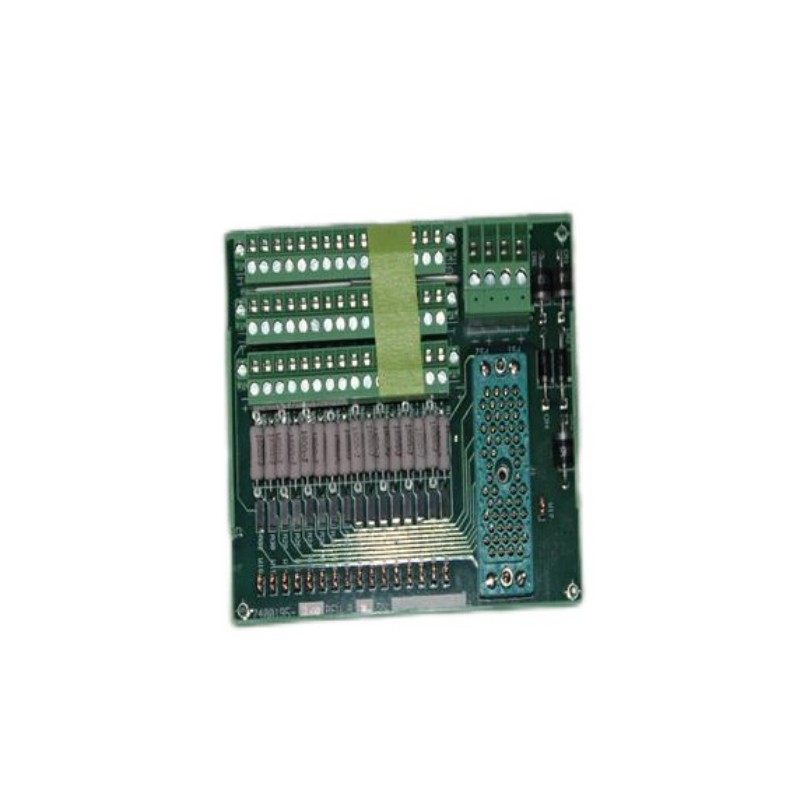

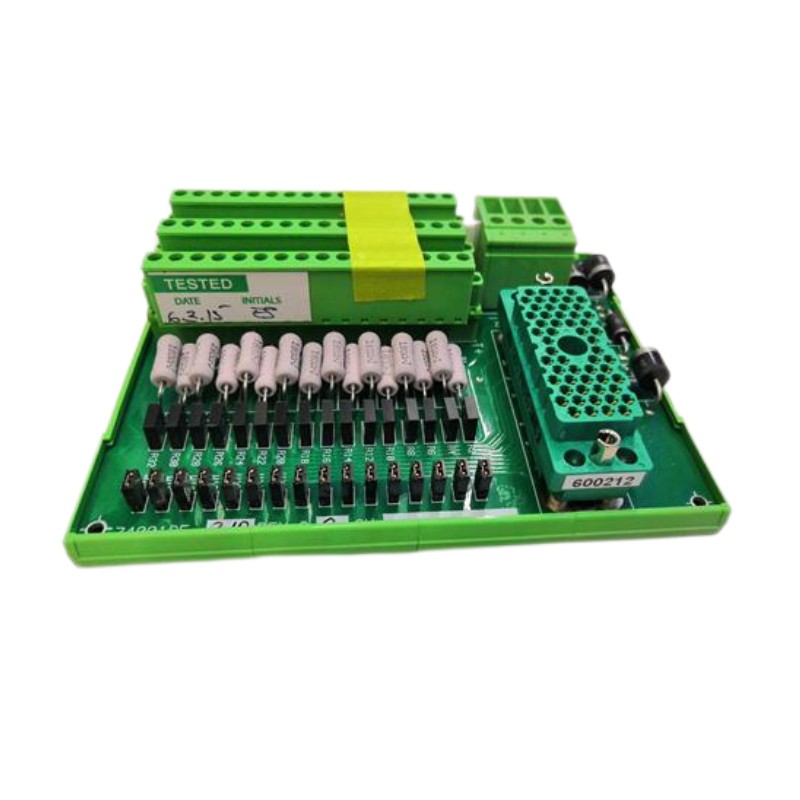

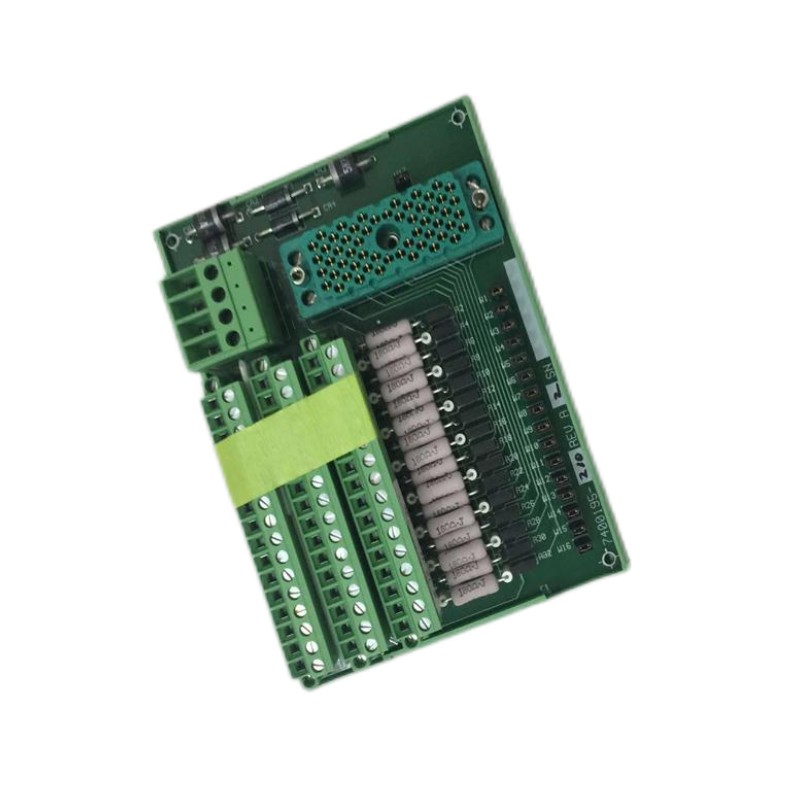

The Triconex 9771-2XX I/O Module is a versatile and fault-tolerant component within Schneider Electric's Triconex safety and control systems. Part of the 9771 series, this module is engineered for real-time processing of analog and digital signals in critical applications where safety, reliability, and precision are essential. Designed to operate in industries that demand constant uptime, such as oil & gas, chemical processing, power generation, and water treatment, the 9771-2XX ensures that process monitoring and control are continuously maintained at the highest standard.

With the ability to interface with a wide range of field devices, the 9771-2XX module provides seamless integration into Triconex Tricon controllers, delivering reliable and real-time control and monitoring for industrial systems. Its compact design, high fault tolerance, and extensive diagnostic capabilities make it an ideal choice for complex and safety-critical environments.

Technical Specifications

Feature	Specification
Model	9771-2XX (varies by specific configuration)
I/O Types	Digital Input, Digital Output, Analog Input, Analog Output
Input Range	0-20 mA (Analog Input), Digital Inputs (Dry Contact)
Output Range	4-20 mA (Analog Output), Digital Outputs (Relay or TTL)
Mounting	Rack Mount (Compatible with Tricon system)
Dimensions (WxHxD)	2.0” x 6.5” x 10.0” (51 mm x 165 mm x 254 mm)
Weight	2.0 lbs (0.91 kg)
Power Supply	24V DC
Accuracy	±0.1% of Full Scale (Analog Input)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Protection	IP20 (dustproof and water-resistant)

Recommended Related Models

Triconex 9758-110 – A high-performance I/O module designed for larger systems with expanded I/O channels and advanced diagnostic features.
Triconex 9752-110 – Offers scalable processing power and additional I/O channels, making it suitable for more complex industrial applications.
Triconex Tricon Controller – The Triconex Tricon controller provides seamless integration with the 9771-2XX for real-time control, fault-tolerant operation, and system monitoring.

Popular Triconex Models

Triconex Tricon Controller: The Triconex Tricon controller integrates with the 9771-2XX module to provide fault-tolerant, real-time control and monitoring.
Triconex 9758-110: A high-capacity module ideal for large systems, offering increased I/O capacity and advanced diagnostic functions.
Triconex 9752-110: A powerful module offering enhanced performance for systems requiring additional I/O channels and processing power.
Triconex TMR System: The Triple Modular Redundancy (TMR) system ensures the highest level of fault tolerance, providing the most reliable operation in safety-critical applications.

Applications

The Triconex 9771-2XX I/O Module is widely used in industries that require high reliability, precision, and continuous operation:

Oil & Gas: In the oil and gas sector, the 9771-2XX module is used to monitor and control crucial parameters such as flow, pressure, and temperature, ensuring the safety and efficiency of exploration, production, and refining processes.
Chemical Processing: The module plays a key role in controlling the processes in chemical plants, ensuring that safety and operational conditions are maintained by accurately monitoring critical process variables like pressure, temperature, and chemical concentrations.
Power Generation: The 9771-2XX I/O module is used in power generation facilities to monitor systems such as turbines, boilers, and generators, ensuring optimal performance and minimizing the risk of failure.
Water Treatment: The 9771-2XX is used in water and wastewater treatment plants to monitor and control critical variables such as flow rates, chemical treatments, and water quality, ensuring compliance with environmental regulations.
Manufacturing Automation: The module is perfect for manufacturing automation systems where precise control is required, ensuring system efficiency, reducing downtime, and increasing productivity.

Advantages

Fault-Tolerant Design: The 9771-2XX is engineered with fault tolerance, ensuring continued operation even in the event of component failures, which is essential for safety-critical applications.
High Precision: Offering ±0.1% accuracy for analog inputs, the module ensures precise measurement and control, making it ideal for industries that require exact data and fine control.
Flexible I/O Configuration: Capable of processing both analog and digital signals, the 9771-2XX module can interface with a wide variety of field devices, including sensors, actuators, and relays.
Compact and Durable: With its IP20 rating, the module is resistant to dust and moisture, providing long-lasting durability in harsh industrial environments. Its compact size allows for easy integration into existing control systems.
Wide Operating Temperature Range: The 9771-2XX operates within a temperature range of -20°C to +60°C, ensuring reliable performance in a wide array of industrial environments.
Non-Volatile Memory: Critical system data is stored in non-volatile memory, preventing data loss during power failures and ensuring system recovery.
Seamless Integration: The 9771-2XX module integrates easily with Triconex Tricon controllers, delivering a unified, fault-tolerant control system that enhances operational efficiency.

Technical FAQs

What types of signals can the Triconex 9771-2XX process?
The 9771-2XX processes both analog (4-20mA) and digital (dry contact) signals, offering flexibility for a wide range of field devices.
What is the accuracy of the analog inputs on the 9771-2XX?
The 9771-2XX provides ±0.1% accuracy for analog inputs, ensuring precision in data acquisition for critical industrial applications.
What power supply does the Triconex 9771-2XX require?
The 9771-2XX operates on a 24V DC power supply, which is standard for most industrial control systems.
Can the Triconex 9771-2XX be used in hazardous environments?
The module has an IP20 rating, which provides protection against dust. For more hazardous environments, additional protective enclosures may be required.
What is the mounting configuration for the 9771-2XX?
The module is designed for rack mounting, allowing for easy installation and integration into existing control systems.
How does the Triconex 9771-2XX integrate with other Triconex systems?
The 9771-2XX integrates seamlessly with Triconex Tricon controllers and other modules, ensuring real-time monitoring, diagnostics, and fault-tolerant control.
What industries benefit most from the 9771-2XX?
The 9771-2XX is ideal for oil & gas, chemical processing, power generation, water treatment, and manufacturing automation industries, where continuous, high-reliability performance is crucial.
What is the operating temperature range for the 9771-2XX?
The module operates within a temperature range of -20°C to +60°C, making it suitable for a wide range of industrial environments.
What are the dimensions of the Triconex 9771-2XX?
The 9771-2XX has compact dimensions of 51 mm (W) x 165 mm (H) x 254 mm (D), ensuring easy integration into control system racks.
What is the weight of the Triconex 9771-2XX?
The 9771-2XX weighs 2.0 lbs (0.91 kg), making it lightweight and easy to handle during installation.
