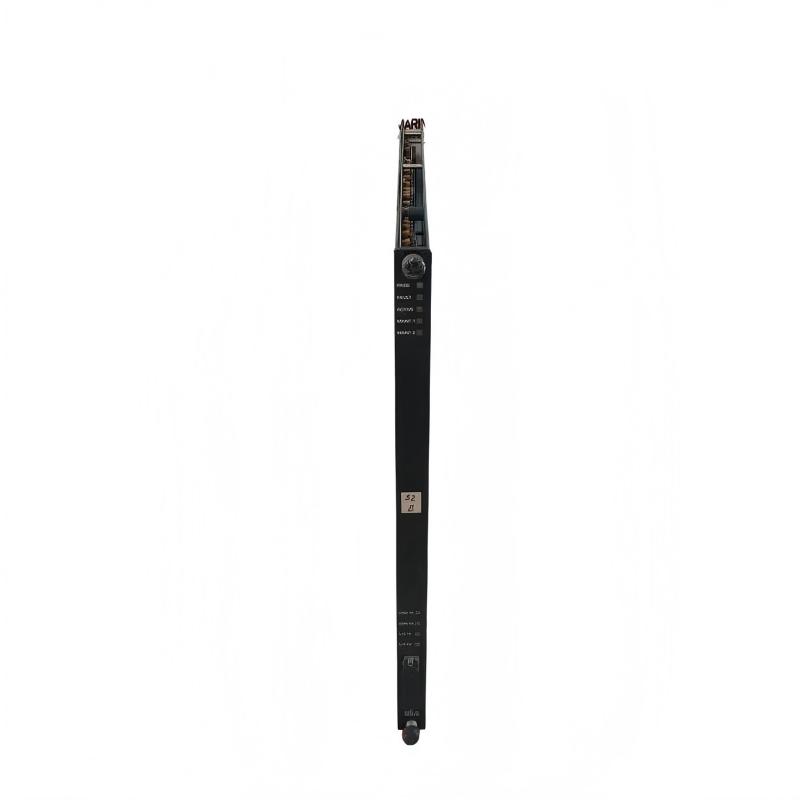

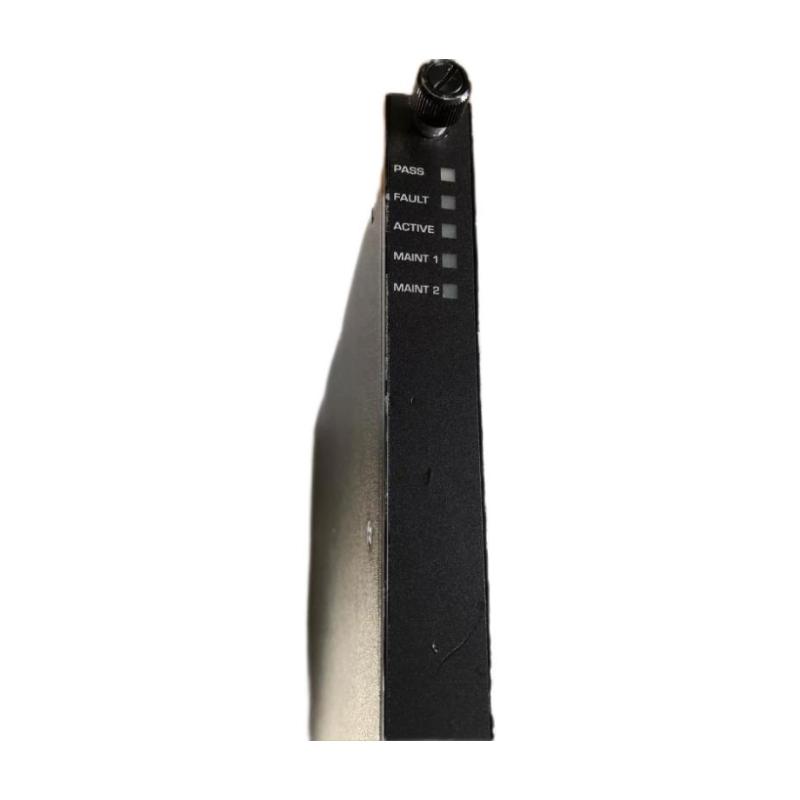

The Triconex 3005 I/O Module is a highly reliable and fault-tolerant input/output module designed for safety-critical applications across industries such as oil & gas, chemical processing, power generation, and water treatment. As part of the Triconex Tricon safety system, the 3005 ensures continuous, real-time control of industrial processes while providing advanced diagnostic capabilities, precise monitoring, and flexible I/O options.

The 3005 I/O module integrates seamlessly with the Triconex Tricon controller, enabling real-time monitoring and control of critical variables such as pressure, temperature, flow, and level. Its redundant design ensures uninterrupted operation in the event of faults, delivering maximum uptime and operational safety for mission-critical systems.

Technical Specifications

Feature	Specification
Model	3005
I/O Types	Digital Input, Digital Output, Analog Input, Analog Output
Input Range	0-20 mA (Analog Input), Digital Inputs (Dry Contact)
Output Range	4-20 mA (Analog Output), Digital Outputs (Relay or TTL)
Mounting	Rack Mount (Compatible with Tricon system)
Dimensions (WxHxD)	2.0” x 6.5” x 10.0” (51 mm x 165 mm x 254 mm)
Weight	2.0 lbs (0.91 kg)
Power Supply	24V DC
Accuracy	±0.1% of Full Scale (Analog Input)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Protection	IP20 (dustproof and water-resistant)

Recommended Related Models

Triconex 9758-110 – A more advanced I/O module with additional I/O capacity and enhanced diagnostic features for large, complex systems.
Triconex 9752-110 – A flexible I/O module designed for high-performance systems requiring additional I/O channels and processing power.
Triconex Tricon Controller – The Triconex Tricon controller seamlessly integrates with the 3005 I/O module, providing real-time monitoring, fault tolerance, and advanced diagnostics for critical industrial systems.

Popular Triconex Models

Triconex Tricon Controller: The core of the Triconex Tricon system, which ensures fault-tolerant, real-time control across industrial processes. It integrates seamlessly with the 3005 I/O module to deliver optimal performance.
Triconex 9758-110: This I/O module provides enhanced diagnostic capabilities, increased I/O channels, and faster data throughput, making it ideal for large-scale, mission-critical systems.
Triconex 9752-110: A versatile I/O module designed to support high-capacity systems that require more I/O channels and enhanced system flexibility.
Triconex TMR System: The Triple Modular Redundancy (TMR) system ensures the highest levels of fault tolerance and reliability in critical operations.

Applications

The Triconex 3005 I/O Module is ideal for a variety of safety-critical applications in industries where reliable, real-time control is essential. Some of the primary industries and applications include:

Oil & Gas: The 3005 module is used in offshore platforms, pipelines, and refineries, where it monitors and controls flow, pressure, and temperature across a range of remote and complex systems.
Chemical Processing: In chemical plants, the 3005 ensures the safe operation of reactors, distillation columns, and filtration systems by providing accurate control of process variables such as pressure, temperature, and flow.
Power Generation: The 3005 I/O module is employed in power plants to control boilers, generators, turbines, and cooling systems. Its redundant design helps maintain system stability and continuous operation in critical applications.
Water Treatment: In water treatment facilities, the 3005 monitors critical parameters such as chemical dosing, flow regulation, and water quality, ensuring safe and effective water treatment.
Manufacturing Automation: The 3005 is used in automated manufacturing systems, providing control over conveyor belts, robotic arms, and other machinery, improving efficiency and reducing downtime.

Advantages

Fault-Tolerant Operation: The 3005 I/O module is designed for uninterrupted operation, even in the event of a failure in one of its channels. Its redundant design ensures maximum uptime and operational safety.
High Precision: With ±0.1% accuracy for analog inputs, the 3005 ensures precise control of process variables, critical for sensitive industrial operations.
Flexible I/O Configuration: The 3005 supports both analog (4-20mA) and digital (dry contact) signals, allowing it to interface with a wide range of field devices such as sensors, actuators, and controllers.
Seamless Integration: The 3005 integrates seamlessly with Triconex Tricon controllers, enabling real-time monitoring, diagnostics, and fault-tolerant control for industrial applications.
Compact and Durable: The module's IP20 protection rating ensures it is dust-resistant, while its compact size (51 mm x 165 mm x 254 mm) makes it easy to install and integrate into existing control racks.
Wide Operating Temperature Range: With an operating temperature range of -20°C to +60°C, the 3005 I/O module can function reliably in diverse industrial environments.

Technical FAQs

What types of signals can the Triconex 3005 process?
The 3005 I/O module supports analog (4-20mA) and digital (dry contact) signals, offering versatile options for interfacing with field devices.
What is the accuracy of the analog inputs?
The 3005 provides ±0.1% accuracy for analog inputs, ensuring high-precision control for industrial applications.
What power supply is required for the 3005 module?
The 3005 operates on a 24V DC power supply, which is commonly used in industrial control systems.
Can the Triconex 3005 be used in hazardous environments?
The IP20 rating offers protection against dust and debris. For hazardous environments, additional protective measures such as enclosures may be required.
What is the mounting configuration for the 3005 module?
The 3005 is designed for rack mounting, making it easy to integrate into system racks or control panels.
How does the Triconex 3005 integrate with other Triconex systems?
The 3005 integrates smoothly with Triconex Tricon controllers, providing real-time monitoring, advanced diagnostics, and fault-tolerant control across industrial systems.
What industries benefit most from the 3005 module?
The 3005 I/O Module is ideal for industries such as oil & gas, chemical processing, power generation, water treatment, and manufacturing automation.
What is the operating temperature range for the 3005?
The 3005 operates in a temperature range from -20°C to +60°C, making it suitable for a wide range of industrial environments.
What are the dimensions of the Triconex 3005?
The 3005 has compact dimensions of 51 mm (W) x 165 mm (H) x 254 mm (D), making it easy to fit into existing system configurations.
What is the weight of the Triconex 3005?
The 3005 weighs 2.0 lbs (0.91 kg), which is lightweight and easy to handle during installation and maintenance.
