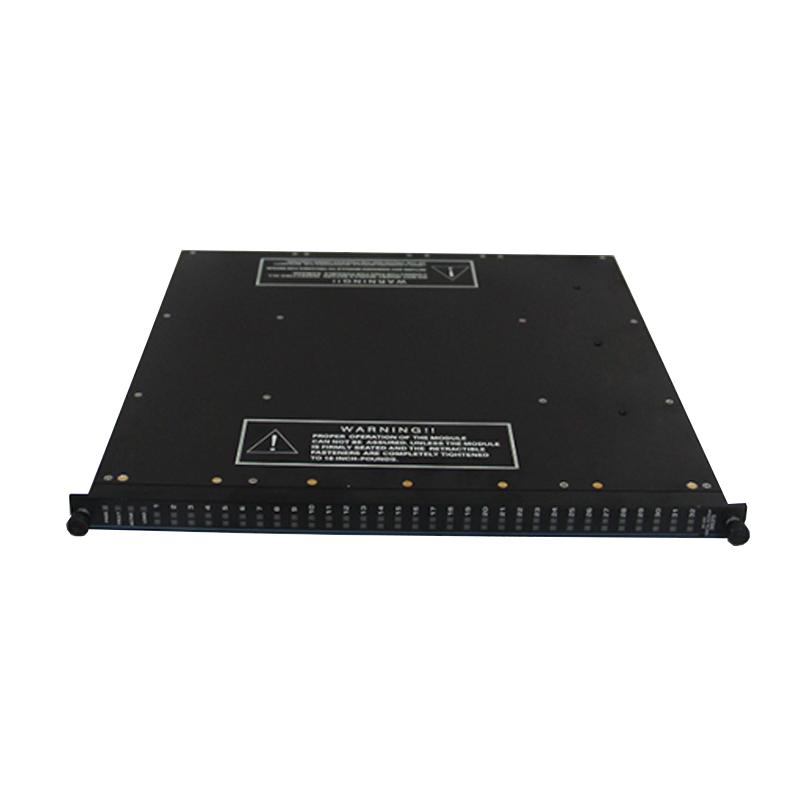

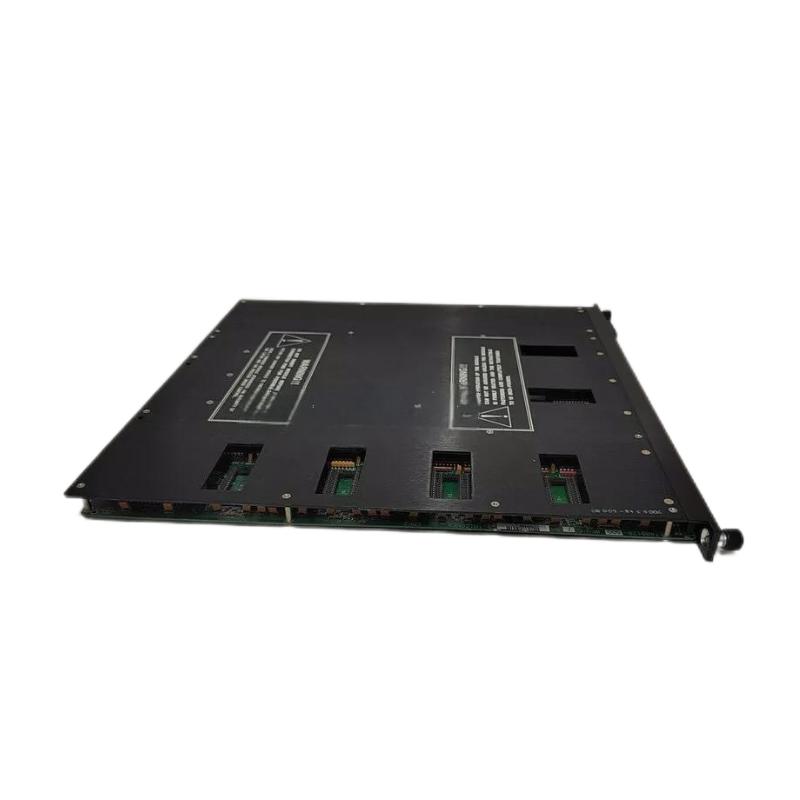

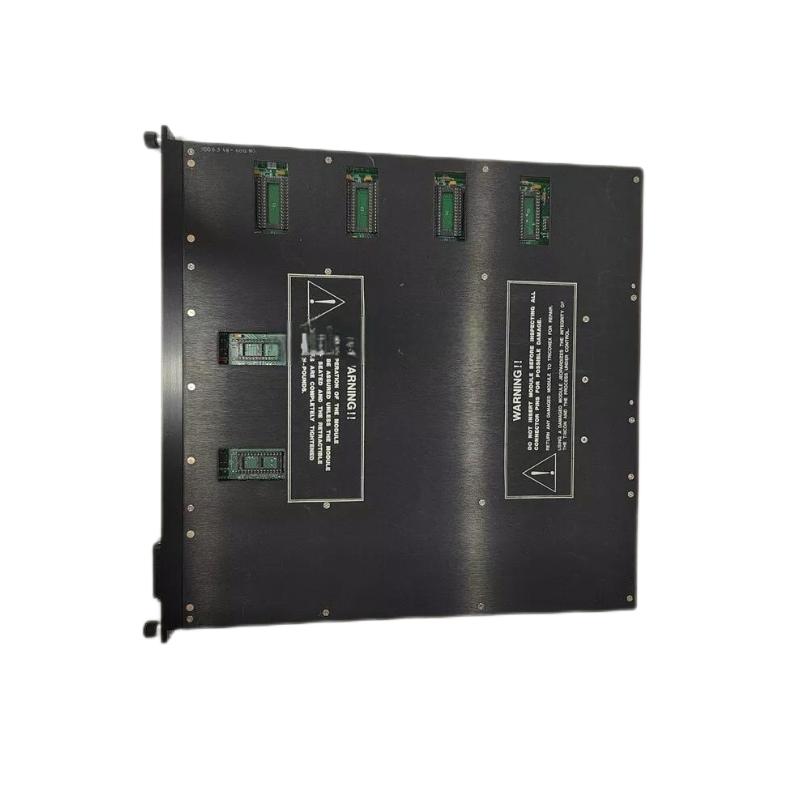

Triconex 3006 I/O Module – Reliable, High-Performance Control for Safety-Critical Systems

Applications

The Triconex 3006 I/O Module is designed for a wide range of safety-critical applications. It is widely used in industries such as:

• Oil & Gas: The 3006 module provides real-time control and monitoring for upstream, midstream, and downstream operations, such as pumping stations, pipeline monitoring, and offshore platforms. Its fault-tolerant design ensures system reliability even in remote or hazardous locations.

• Chemical Processing: In chemical plants, the 3006 I/O module monitors and controls key process variables such as temperature, pressure, and flow, ensuring safe and efficient operation of reactors, distillation columns, and filtration systems.

• Power Generation: The 3006 is used in power plants to monitor and control turbines, boilers, generators, and cooling systems. Its redundant design and advanced diagnostics provide critical support for continuous, safe operation.

• Water Treatment: The 3006 module is employed in water treatment plants to control and monitor water flow, chemical dosing, and filtration processes, ensuring water safety and quality.

• Manufacturing Automation: The 3006 I/O module is utilized in automated manufacturing systems, providing control over conveyors, robotic arms, and other machinery, improving productivity and reducing downtime.

Advantages

• Fault-Tolerant Design: The 3006 I/O module is designed for continuous operation, even in the event of a failure in one of its channels, ensuring that systems remain operational without compromising safety or control.

• High Accuracy: With ±0.1% accuracy for analog inputs, the 3006 ensures precise control and monitoring, critical for sensitive applications such as chemical reactions, power generation, and water treatment.

• Flexible I/O Configuration: The 3006 supports both analog (4-20mA) and digital (dry contact) signals, offering flexibility in interfacing with a variety of field devices, such as sensors, actuators, and control systems.

• Seamless Integration: The 3006 integrates smoothly with Triconex Tricon controllers, providing real-time monitoring, advanced diagnostics, and fault-tolerant control across industrial systems.

• Compact and Durable: The IP20 protection rating provides dust and debris resistance, and the compact design (51 mm x 165 mm x 254 mm) makes the 3006 easy to integrate into system racks or panels.

• Wide Operating Temperature Range: The 3006 I/O module operates effectively in a wide temperature range of -20°C to +60°C, making it suitable for use in diverse industrial environments.

Technical FAQs

1. What types of signals can the Triconex 3006 process?
   The 3006 I/O module supports both analog (4-20mA) and digital (dry contact) signals, providing flexibility in interfacing with field devices.

2. What is the accuracy of the analog inputs?
   The 3006 provides ±0.1% accuracy for analog inputs, ensuring precision in industrial control applications.

3. What power supply is required for the 3006 module?
   The 3006 operates with a 24V DC power supply, which is commonly used in industrial control systems.

4. Can the Triconex 3006 be used in hazardous environments?
   With an IP20 protection rating, the 3006 provides basic protection against dust and debris. Additional enclosures may be required for hazardous or more demanding environments.

5. What is the mounting configuration for the 3006 module?
   The 3006 is designed for rack mounting, making it easy to install into existing system racks or panels.

6. How does the Triconex 3006 integrate with other Triconex systems?
   The 3006 seamlessly integrates with Triconex Tricon controllers, offering real-time monitoring, fault tolerance, and advanced diagnostics across industrial control systems.

7. What industries benefit most from the 3006 module?
   The 3006 I/O Module is ideal for industries such as oil & gas, chemical processing, power generation, water treatment, and manufacturing automation.

8. What is the operating temperature range for the 3006?
   The 3006 operates in a temperature range of -20°C to +60°C, making it suitable for diverse industrial environments.

9. What are the dimensions of the Triconex 3006?
   The 3006 has compact dimensions of 51 mm (W) x 165 mm (H) x 254 mm (D), ensuring easy installation and integration into existing system racks.

10. What is the weight of the Triconex 3006?
    The 3006 weighs 2.0 lbs (0.91 kg), making it easy to handle during installation and maintenance.
