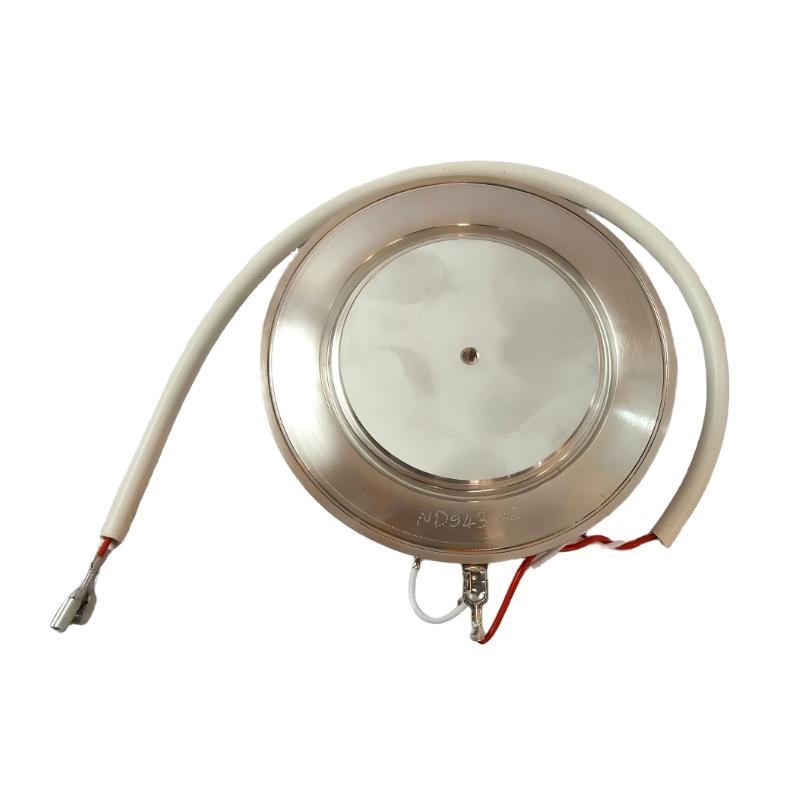

ABB 5STP1752H000 3BHL000986P3016 Thyristor Power Module
ABB 5STP1752H000 3BHL000986P3016 Thyristor Power Module
0.0
Points
Brand:ABB PLC Item No.:5STP1752H000 Product Origin:Sweden (SE) Product Dimensions:140 × 100 × 30 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
ABB’s 5STP1752H000 Thyristor Power Module combines compact design with industrial-grade robustness. It is tailored for engineers seeking efficient, reliable, and high-performance power switching solutions. Its thermal management, high switching capacity, and proven durability make it a preferred choice for demanding electrical systems, from renewable energy inverters to industrial motor drives.
Technical Specifications
Parameter
Specification
Module Type
Thyristor Power Module
ABB Part Number
5STP1752H000 / 3BHL000986P3016
Dimensions
140 × 100 × 30 mm
Weight
0.45 kg
Max Operating Voltage
1200 V
Peak Current
175 A
Switching Type
Phase-controlled thyristor
Thermal Management
Heat sink mounting recommended
Gate Trigger
2–3 V, 50–100 mA
Operating Temperature
-40°C to +125°C
Recommended Related Models
Model
Type
Max Voltage
Peak Current
ABB 5STP2000H000
Thyristor Module
1400 V
200 A
ABB 5STP1500H000
Thyristor Module
1200 V
150 A
ABB 5STP1752H001
Thyristor Module
1200 V
175 A
ABB 5STP1600H000
Thyristor Module
1300 V
160 A
ABB 5STP1800H000
Thyristor Module
1500 V
180 A
ABB 5STP2000H001
Thyristor Module
1400 V
200 A
ABB 5STP1400H000
Thyristor Module
1000 V
140 A
ABB 5STP1700H000
Thyristor Module
1200 V
170 A
ABB 5STP1600H001
Thyristor Module
1300 V
160 A
ABB 5STP1500H001
Thyristor Module
1200 V
150 A
Popular Related Models
Model
Type
Max Voltage
Peak Current
ABB 5STP1750H000
Thyristor Module
1200 V
175 A
ABB 5STP1800H002
Thyristor Module
1500 V
180 A
ABB 5STP2000H003
Thyristor Module
1400 V
200 A
ABB 5STP1600H002
Thyristor Module
1300 V
160 A
ABB 5STP1500H002
Thyristor Module
1200 V
150 A
ABB 5STP1700H001
Thyristor Module
1200 V
170 A
ABB 5STP1400H001
Thyristor Module
1000 V
140 A
ABB 5STP1850H000
Thyristor Module
1500 V
185 A
ABB 5STP1900H000
Thyristor Module
1600 V
190 A
ABB 5STP2000H002
Thyristor Module
1400 V
200 A
Applications
The ABB 5STP1752H000 Thyristor Power Module excels in high-performance power control scenarios, including:
Medium and high-power AC and DC drives
Traction and electric transportation systems
Renewable energy inverters (solar, wind)
Industrial heating and welding
Motor control and power conversion systems
Engineered for durability, it handles demanding industrial workloads with precision.
Advantages
High Efficiency Switching: Optimizes power delivery while minimizing conduction losses.
Compact and Lightweight: Streamlines system design without sacrificing performance.
Industrial-Grade Durability: Withstands voltage and current surges reliably.
Ease of Integration: Standard form factor simplifies installation and upgrades.
FAQs
1. What is the maximum operating voltage for this module?
The module is rated for continuous operation at voltages up to 1200 V, ensuring reliable performance in medium-voltage industrial applications.
2. What is the peak current rating of the 5STP1752H000?
It can handle peak currents up to 175 A, making it suitable for high-power switching and load demands.
3. Can this module operate in a parallel configuration for higher current?
Yes, multiple modules can be configured in parallel with proper gate control and current sharing arrangements.
4. What is the recommended gate trigger voltage and current?
The typical gate trigger voltage ranges between 2–3 V with a current of 50–100 mA, ensuring reliable turn-on under normal operating conditions.
5. What is the typical switching frequency limit?
This thyristor module is optimized for low-to-medium frequency applications, generally up to a few hundred Hz, depending on thermal management.
6. How does the module handle thermal overload or short-circuit conditions?
It is designed to tolerate temporary overloads, but external protective devices are recommended to prevent damage from prolonged thermal or short-circuit stress.
7. Is there any derating required for high-temperature environments?
Yes, operating the module near its maximum temperature limit requires derating the current to maintain safe operation and prolong lifespan.
8. What is the insulation voltage rating between power terminals?
The module features reinforced insulation capable of withstanding industrial voltage isolation requirements, typically in line with IEC standards.
9. How should I mount this module for optimal heat dissipation?
Mounting directly on a properly designed heat sink with thermal interface material is recommended to ensure efficient heat transfer and avoid hotspots.
10. Are there recommended protective components to extend module life under harsh conditions?
Snubber circuits, fuses, or current-limiting reactors are commonly used to protect the module from voltage spikes and inrush currents, enhancing long-term reliability.
