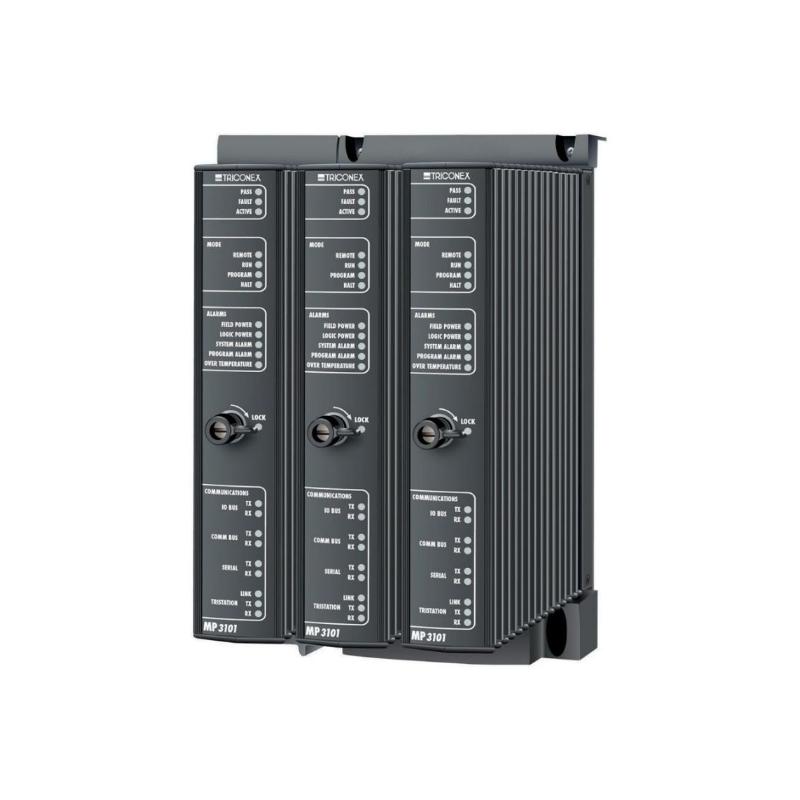

Triconex 3101-1 Triconex 3101-3 3101 Triconex 3101-2

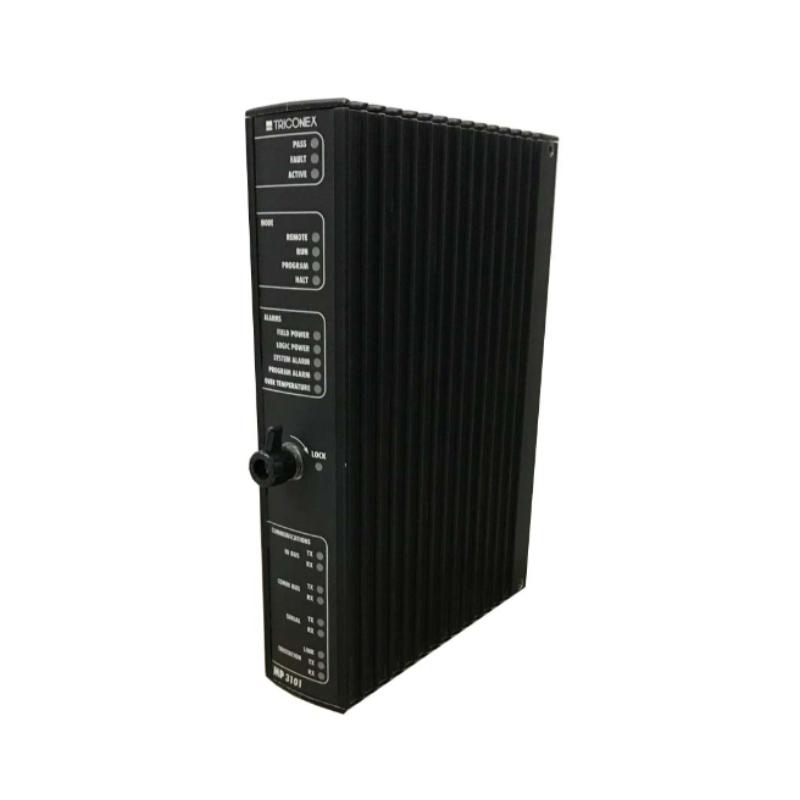

The Triconex 3101 Digital Input Module is a critical component in the Tricon™ safety system, designed for high-integrity safety applications. This module provides reliable, fault-tolerant digital input functionality for SIL 3 (IEC 61508) safety applications, ensuring that your control systems maintain continuous, safe operation in the most demanding industrial environments. With its advanced diagnostics, robust communication features, and compatibility with the Tricon system, the 3101 is the ideal choice for mission-critical applications in industries such as oil & gas, chemical processing, power generation, and more.

The 3101 Digital Input Module is engineered to deliver high availability and flexibility, making it suitable for both small and large safety systems. It offers the reliability you need for ensuring safety while providing seamless integration with other Triconex modules for a complete, fault-tolerant system solution.

Technical Specifications

Feature	Description
Model	Triconex 3101 Digital Input Module
I/O Type	Digital Inputs
Input Voltage Range	24V DC (nominal)
Number of Inputs	16 Digital Inputs (8 input groups with 2 channels each)
Redundancy	Dual redundant processors and power supplies
Power Supply	24V DC (nominal)
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Dimensions (H x W x D)	5.2" x 7.0" x 3.9" (132mm x 178mm x 99mm)
Weight	1.6 kg (3.53 lbs)
Communication Interface	Tricon high-speed, fault-tolerant bus
Certifications	SIL 3 (IEC 61508), FM, ATEX, CSA, CE

Recommended Related Models

Triconex 3102 – Digital Output Module for Tricon System
Triconex 3511 – High-Availability Tricon Processor
Triconex 3508 – Analog Input Module for Tricon System
Triconex 3600 – Communication Module (Modbus, Profibus, and more)

Popular Triconex Models

Triconex 3007 – Safety I/O Module with SIL 3 Certification
Triconex 3501 – Digital Output Module with enhanced fault tolerance
Triconex 3504 – High-Speed Communication Module for Tricon System
Triconex 3510 – Redundant Processor Module

Applications

The Triconex 3101 Digital Input Module is designed for industries where safety, reliability, and real-time monitoring are crucial. Its robust design makes it suitable for various safety-critical applications, including:

Oil & Gas: Ensures continuous monitoring of pipeline systems, offshore rigs, and refinery operations.
Chemical Processing: Protects critical chemical production systems, reactors, and hazardous environments.
Power Generation: Safeguards turbines, boilers, and nuclear power plant shutdown systems.
Mining: Provides reliable interlocks for mining equipment in high-risk environments.
Pharmaceuticals: Ensures compliance with safety regulations for pharmaceutical production and handling of dangerous chemicals.

Advantages

High Fault-Tolerance: The 3101 features redundant processors, power supplies, and input channels to ensure continuous operation even if a fault occurs.
SIL 3 Certification: Fully certified for SIL 3 (IEC 61508) applications, ensuring maximum safety for mission-critical systems.
Seamless Integration: Easily integrates with other Triconex modules for a complete, fault-tolerant safety system.
Wide Temperature Range: Operates effectively in extreme environments with temperatures ranging from -20°C to 60°C (-4°F to 140°F).
Comprehensive Diagnostics: The module offers built-in diagnostics to help identify faults quickly, reducing downtime and maintenance costs.
Flexibility: Supports 16 digital inputs that can be configured based on the specific needs of your safety system.
Industry Certifications: The 3101 is certified by FM, ATEX, and CSA, making it suitable for use in hazardous locations.
Proven Reliability: Trusted in critical industries worldwide, providing peace of mind with its high reliability and long-lasting performance.

Technical FAQs

How many digital inputs does the Triconex 3101 module support?
- The 3101 supports 16 digital inputs, grouped in 8 input groups, with 2 channels per group.
What type of redundancy does the Triconex 3101 provide?
- The module features dual redundant processors and power supplies, ensuring high availability and fault tolerance.
Can the Triconex 3101 be used in hazardous environments?
- Yes, the 3101 is ATEX, FM, and CSA certified, making it suitable for use in hazardous locations.
What is the operating temperature range of the Triconex 3101?
- The 3101 operates within a temperature range of -20°C to 60°C (-4°F to 140°F), ensuring reliable performance in harsh conditions.
What is the communication protocol used by the Triconex 3101?
- The 3101 uses Tricon’s high-speed, fault-tolerant communication bus to communicate with other modules in the Tricon system.
What industries typically use the Triconex 3101?
- The 3101 is used in oil & gas, chemical processing, power generation, mining, and pharmaceutical industries, where safety and reliability are critical.
Is the Triconex 3101 compatible with other Triconex modules?
- Yes, the 3101 is fully compatible with other Triconex modules, enabling easy integration and system expansion.
Does the Triconex 3101 support analog inputs?
- No, the 3101 is designed for digital inputs only. For analog input capabilities, the Triconex 3508 module can be used.
What makes the Triconex 3101 ideal for safety applications?
- The 3101 is designed for SIL 3 applications, offering high fault tolerance and redundancy to ensure safety and prevent system failures.
What are the key benefits of using the Triconex 3101 in a safety system?
- The 3101 provides high reliability, redundant operation, and real-time diagnostics, making it ideal for mission-critical applications in industries requiring continuous, safe operation.
