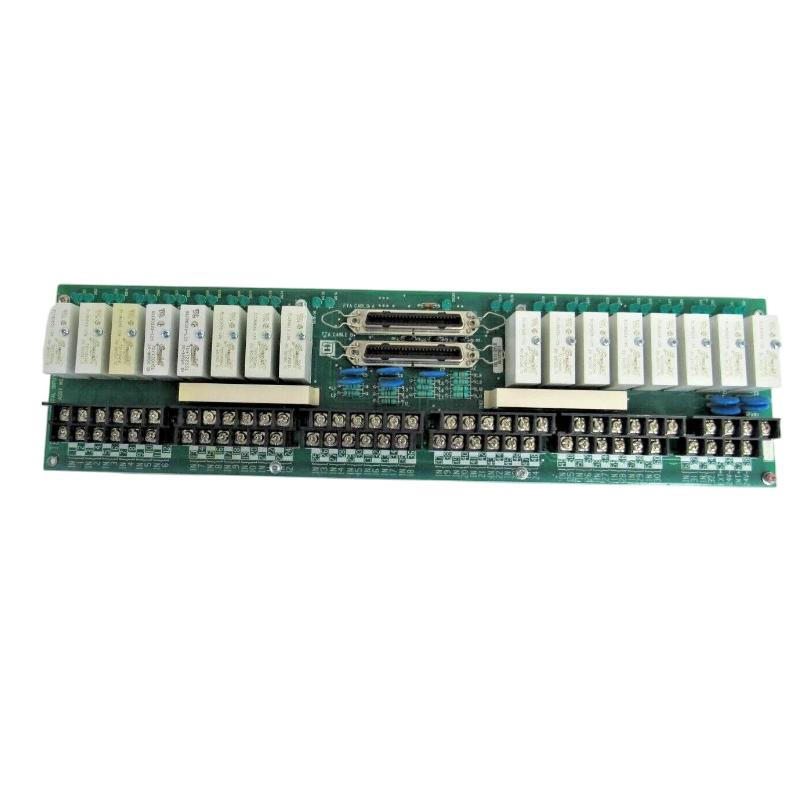

Honeywell MC-TDID52 51304441-275/51304441-250 Numeric Input Module

Applications

The MC-TDID52 Numeric Input Module is engineered for precision digital signal capture in industrial automation systems. Key applications include:

• Distributed control systems (DCS) in manufacturing, power generation, and chemical plants.

• High-speed counting and numeric data acquisition from industrial sensors.

• Integration with PLC and DCS for real-time process monitoring.

• Interface for rotary encoders, flow meters, and other numeric devices.

• Upgrading legacy systems with advanced numeric input capabilities.

Advantages

• Accurate Data Capture: Maintains precise numeric signal readings for reliable control.

• Durable Construction: Built to withstand harsh industrial conditions.

• Seamless Integration: Compatible with Honeywell Experion PKS and TDC 3000 systems.

• Compact Design: 30 mm profile allows efficient panel space usage.

• Enhanced Reliability: Minimizes signal errors with robust digital input handling.

Technical FAQs

1. What input types are supported?
   Supports digital/numeric signals from industrial sensors and encoders.

2. Can it be installed in existing Honeywell racks?
   Yes, it fits standard Honeywell rack-mounted input assemblies.

3. Is hot-swapping supported?
   No; the module should be powered down before installation.

4. Operating temperature range?
   -20°C to 70°C (-4°F to 158°F).

5. Does it provide channel isolation?
   Yes, digital channels are isolated to protect downstream devices.

6. How many input channels does it support?
   Multi-channel, configuration-dependent.

7. Mounting type?
   Rack-mounted within Honeywell input assemblies.

8. Maintenance requirements?
   Minimal; periodic inspection is recommended.

9. Is it compatible with 24V DC systems?
   Yes, designed for standard industrial 24V DC control systems.

10. Expected lifespan of the module?
    Typically exceeds 10 years under normal industrial operating conditions.
