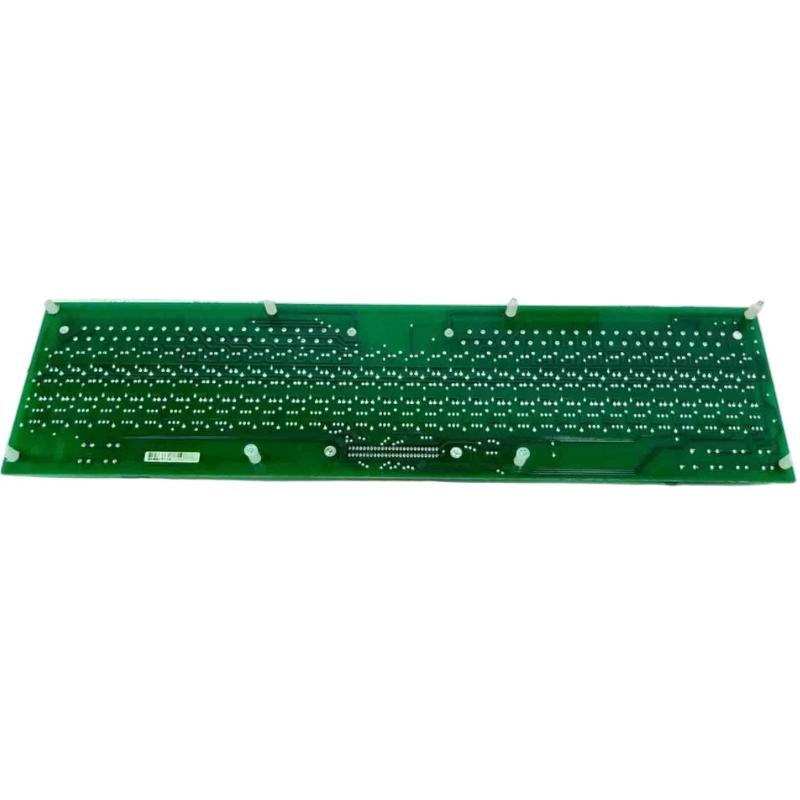

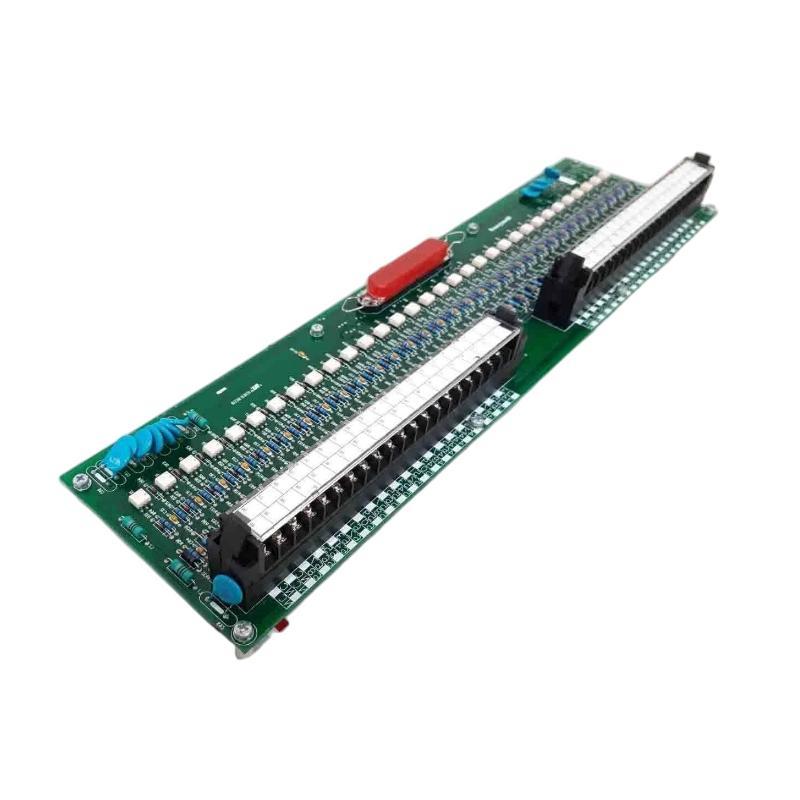

Name: Honeywell MC-TDID72 51303928-150 Numeric Input Module
Brand: Honeywell DCS
SKU: 2899
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Honeywell MC-TDID72 51303928-150 Numeric Input Module delivers accurate numeric signal acquisition for modern industrial control systems. Its slim, durable design ensures reliable operation in space-constrained control panels, while isolated input channels protect critical downstream equipment. Ideal for engineers seeking precision, long-term reliability, and seamless integration with Honeywell DCS and PLC systems.

Technical Specifications

Specification	Details
Model Number	MC-TDID72
Function	Numeric Input Module
Compatible Systems	Honeywell Experion PKS, TDC 3000
Operating Temperature	-20°C to 70°C (-4°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Dimensions	190 mm × 70 mm × 20 mm
Weight	0.52 kg
Input Channels	Multi-channel (system-dependent)
Isolation	Yes
Mounting Type	Rack-mounted

Recommended Related Models

Honeywell MC-TDIH72 51303929-150 Digital Input Module
Honeywell MC-TBAH72 51303930-150 Analog Input Termination Board
Honeywell MC-TDID73 51303931-150 Numeric Input Expansion Module
Honeywell MC-TDIH73 51303932-150 Digital Input Expansion Module
Honeywell MC-TBAH73 51303933-150 Analog Input Rack Module

Popular Related Models

Honeywell MC-TDID74 51303934-150 Numeric Input Module
Honeywell MC-TDIH74 51303935-150 Digital Input Rack Module
Honeywell MC-TBAH74 51303936-150 Analog Input Board
Honeywell MC-TDID75 51303937-150 Numeric Input Expansion Module
Honeywell MC-TDIH75 51303938-150 Digital Input Expansion Module

Applications

The MC-TDID72 Numeric Input Module is built to provide precise digital signal capture in industrial automation and control systems. Typical applications include:

Distributed control systems (DCS) in chemical, power, and manufacturing plants.
Numeric data acquisition from industrial sensors, counters, and encoders.
Integration with PLCs and Honeywell DCS for real-time monitoring.
Signal monitoring and data logging in automated process systems.
Upgrading legacy control racks with reliable numeric input modules.

Advantages

High-Accuracy Input: Ensures precise numeric signal capture for reliable process control.
Rugged Industrial Design: Handles demanding industrial environments with minimal downtime.
Easy System Integration: Compatible with Honeywell Experion PKS and TDC 3000 systems.
Compact Form Factor: Slim 20 mm profile optimizes space in control cabinets.
Enhanced Reliability: Isolated channels reduce signal errors and protect downstream equipment.

Technical FAQs

What type of signals does this module support?
Digital/numeric signals from industrial sensors, encoders, and counters.
Can it be installed in existing Honeywell racks?
Yes, it fits standard Honeywell rack-mounted input assemblies.
Is hot-swapping supported?
No; power should be off during installation.
Operating temperature range?
-20°C to 70°C (-4°F to 158°F).
Does it provide channel isolation?
Yes, all channels are electrically isolated for safety and signal integrity.
How many channels does it support?
Multi-channel; actual number depends on system configuration.
Mounting type?
Rack-mounted in Honeywell input assemblies.
Maintenance requirements?
Minimal; mainly periodic inspection and cleaning.
Is it compatible with 24V DC systems?
Yes, designed for standard 24V DC industrial control circuits.
Expected lifespan of the module?
Typically exceeds 10 years under standard industrial operating conditions.
