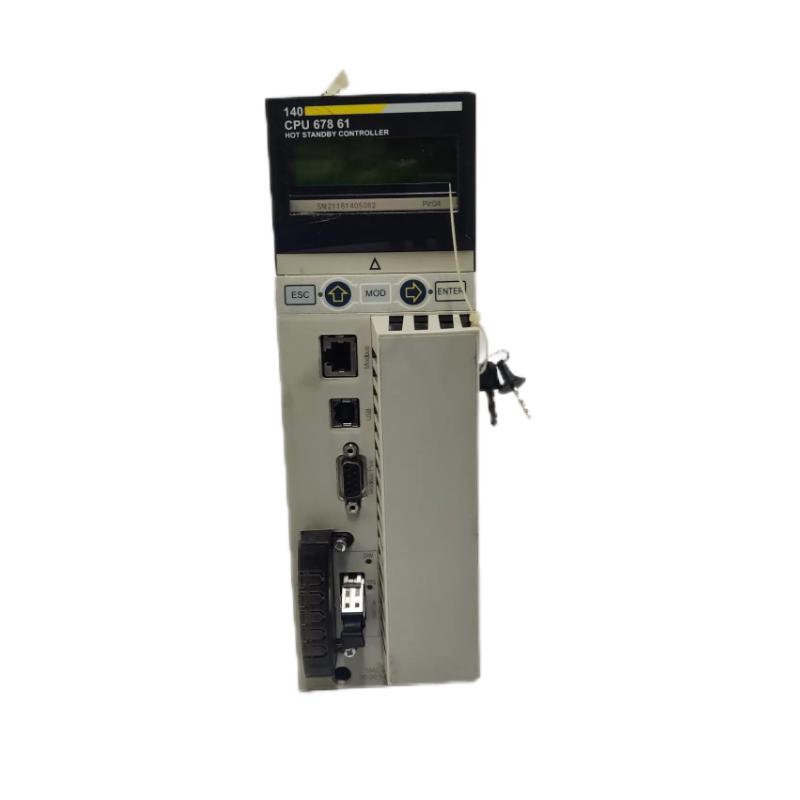

The Schneider Electric 140CPU67861 is an advanced Modicon Quantum Series CPU Module designed for high-performance, large-scale industrial automation systems. Equipped with a 1 GHz processor, this CPU module is engineered to handle demanding tasks with speed and precision. The 140CPU67861 offers 2 MB of program memory and 2 MB of data memory, making it an ideal choice for complex automation applications that require high-speed data processing and real-time control.

As part of the Modicon Quantum series, the 140CPU67861 is built to deliver robust performance in critical industrial environments. Its powerful processing capabilities, flexible communication options, and extensive I/O integration make it the ideal choice for industries such as manufacturing, energy, water treatment, and more. The module ensures reliable performance and seamless integration with other Schneider Electric products, enhancing system efficiency and scalability.

Technical Specifications

Feature	Details
Model	140CPU67861
Type	Modicon Quantum CPU Module
Processor Speed	1 GHz
Program Capacity	2 MB
Memory Size	2 MB RAM
Operating Temperature	0°C to 60°C
Input Voltage	24V DC
Mounting Type	Rack-mounted
Dimensions (WxHxD)	6.3" x 5.9" x 3.0" (160mm x 150mm x 76mm)
Weight	1.9 kg (4.2 lbs)

The 140CPU67861 module features a 1 GHz processor, which ensures fast data processing and quick response times for control tasks. With 2 MB of program memory and 2 MB of data memory, the module can handle large and complex control applications efficiently. The operating temperature range of 0°C to 60°C allows it to function reliably in a wide variety of industrial environments, from factory floors to outdoor installations.

Recommended Related Models

140DAO84300 Digital Output Module: Expands output capabilities with high-speed digital outputs for applications requiring precise control, compatible with the 140CPU67861.
140CPS2140 Power Supply: Provides stable and reliable power to the 140CPU67861 and other connected modules, ensuring consistent system performance.
140ACM01000 Communication Module: Offers robust networking and communication options, allowing the 140CPU67861 to connect seamlessly to other devices via Ethernet, Modbus, or Profibus protocols.

Popular Schneider Electric Models

140CPU67861 – Modicon Quantum CPU Module
140DAI83000 – Digital Input Module
140ACM01000 – Communication Module
140AIA32000 – Analog Input Module
140EIA88100 – Ethernet Communication Module

The Modicon Quantum series offers exceptional scalability, flexibility, and reliability, which is why these models are widely adopted for large-scale industrial automation systems.

Applications

The Schneider Electric 140CPU67861 is designed for high-speed, real-time control and data processing across a wide variety of industries. Some of the key applications include:

Manufacturing Automation: Controls complex automated production lines, robotic systems, and material handling equipment, providing precise and fast control over processes.
Energy & Utilities: Monitors and controls power generation, distribution systems, and energy management applications, helping optimize energy use and reduce costs.
Water and Wastewater Treatment: Manages critical processes like pumping, filtration, and chemical dosing to maintain efficient water treatment operations.
Oil & Gas: Supports real-time control and monitoring in upstream, midstream, and downstream operations, including refineries, pipelines, and offshore platforms.
Pharmaceuticals: Controls sensitive processes such as mixing, filling, and packaging, ensuring precise operations and adherence to regulatory standards.

Advantages

High-Speed Performance: The 1 GHz processor ensures rapid execution of control tasks, which is essential for industries where speed and accuracy are crucial.
Expandable and Scalable: Easily integrates with additional I/O modules and communication devices, enabling future expansion as system demands grow.
Flexible Communication Options: Supports industry-standard protocols such as Ethernet/IP, Modbus, and Profibus, ensuring seamless communication across different network environments.
Wide Temperature Range: The 140CPU67861 operates in temperatures ranging from 0°C to 60°C, making it suitable for diverse industrial environments.
Enhanced Reliability: Built to meet the demands of high-performance applications, the 140CPU67861 offers exceptional reliability, reducing the likelihood of downtime and improving overall system uptime.

Technical FAQs

What is the processor speed of the 140CPU67861?
- The 140CPU67861 is powered by a 1 GHz processor, providing fast execution for real-time control applications.
How much program memory does the 140CPU67861 have?
- The 140CPU67861 features 2 MB of program memory, allowing it to handle large and complex control programs.
What communication protocols does the 140CPU67861 support?
- The 140CPU67861 supports multiple communication protocols, including Ethernet/IP, Modbus, and Profibus, for flexible system integration.
Can the 140CPU67861 be used for motion control applications?
- Yes, the 140CPU67861 can be used in motion control applications by integrating it with Schneider Electric’s motion control modules for precise control of motors and actuators.
What is the operating temperature range of the 140CPU67861?
- The 140CPU67861 operates in a wide temperature range from 0°C to 60°C, making it suitable for use in various industrial environments.
How can I expand the I/O capacity of the 140CPU67861?
- The 140CPU67861 can be expanded using Modicon Quantum I/O modules, allowing you to increase I/O points as needed for your application.
What software is used to configure the 140CPU67861?
- The 140CPU67861 can be configured using Unity Pro or SoMachine software, both of which offer comprehensive tools for programming, monitoring, and diagnostics.
Is the 140CPU67861 suitable for hazardous environments?
- The 140CPU67861 is designed for industrial use, but additional protective measures may be required for hazardous locations, depending on the specific environment.
How do I monitor the performance of the 140CPU67861?
- Performance monitoring can be done using Schneider Electric’s Unity Pro software, which offers diagnostic tools and real-time data collection for system performance analysis.
What is the warranty period for the 140CPU67861?
- The 140CPU67861 comes with a standard 1-year warranty from Schneider Electric, ensuring the module’s reliability and performance.
