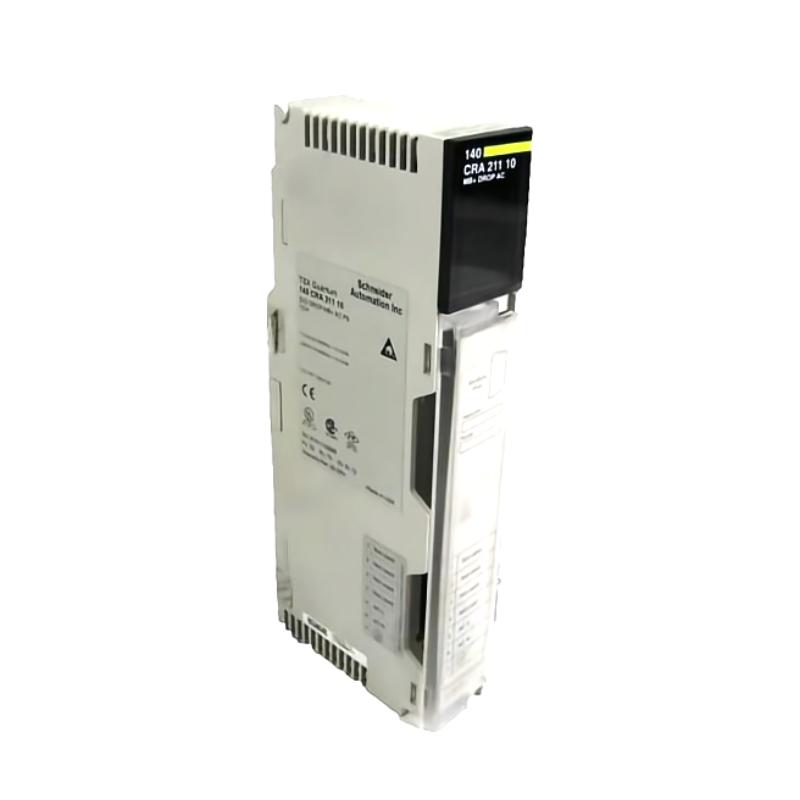

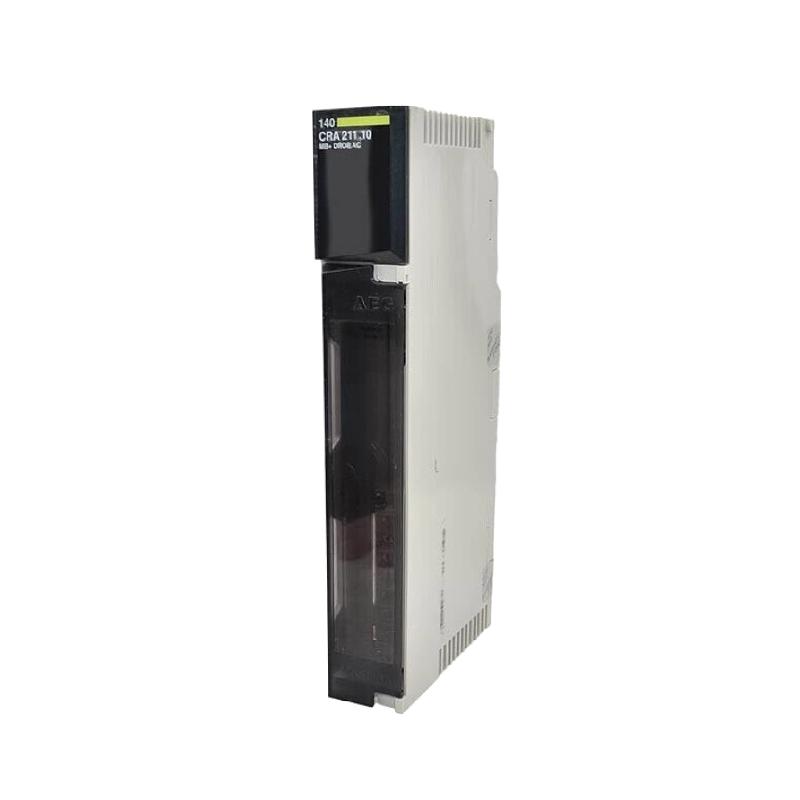

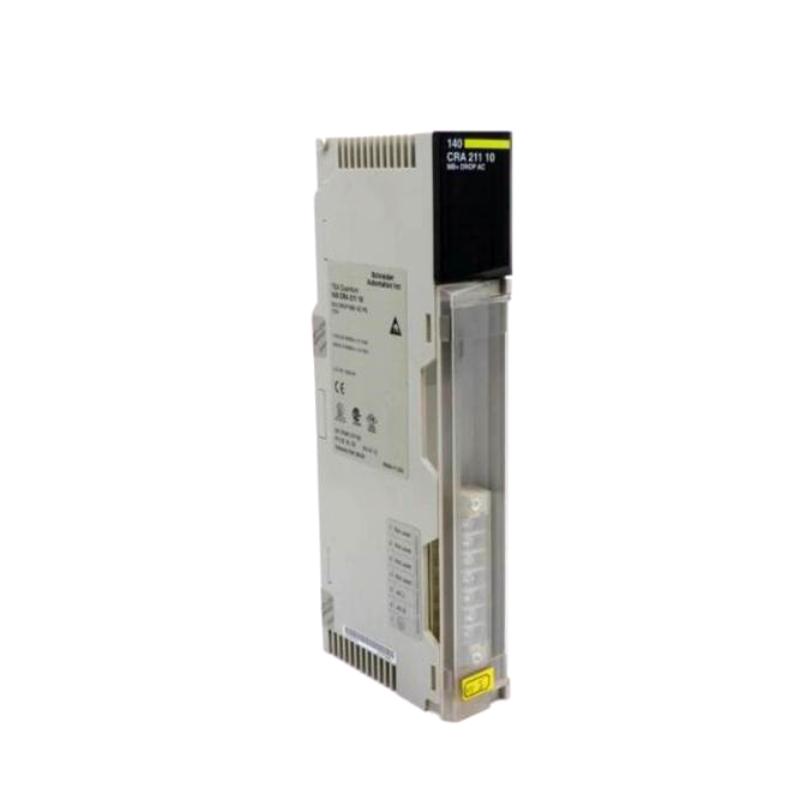

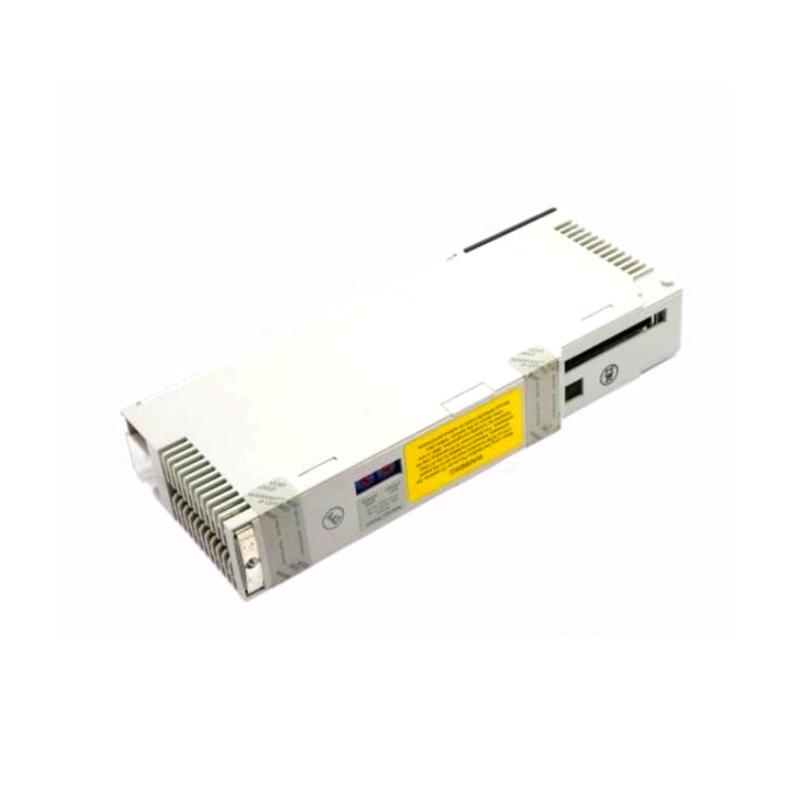

Schneider Electric 140CRA21110 Modicon Quantum Series Rack – Flexible and Scalable I/O System for Industrial Automation

Applications

The Schneider Electric 140CRA21110 rack is designed for use in various industrial sectors that require reliable, scalable automation solutions. Some of the most common applications include:

• Manufacturing Automation: Integrates multiple I/O modules and CPUs to control production lines, robotic systems, and material handling equipment with high precision and speed.

• Energy & Utilities: Optimizes power generation, distribution systems, and energy management applications, helping to monitor and control critical infrastructure.

• Water and Wastewater Treatment: Supports automation for complex processes such as filtration, pumping, and chemical dosing, ensuring compliance with regulations and improving operational efficiency.

• Oil & Gas: Facilitates automation and monitoring of systems in upstream, midstream, and downstream operations, including refineries, pipelines, and offshore platforms.

• Pharmaceuticals: Ensures precise control for processes like mixing, filling, and packaging, which require high levels of accuracy and regulatory compliance.

Advantages

• Modular and Scalable: The 140CRA21110 allows users to customize the system by adding up to 10 modules, including CPUs, I/O, and communication modules, to meet specific application requirements.

• Compact Design: The 19-inch rack is compact and easy to install, making it suitable for environments where space is limited while still providing ample room for expansion.

• Reliable Performance: With a wide operating temperature range of 0°C to 60°C, the 140CRA21110 operates reliably in demanding industrial conditions, ensuring continuous system performance.

• Easy Integration: This rack seamlessly integrates with Schneider Electric’s Modicon Quantum CPUs and I/O modules, enabling smooth communication and control for automated systems.

• Flexible Communication: The 140CRA21110 supports Ethernet/IP, Modbus, and Profibus communication protocols, allowing it to be connected to a variety of industrial devices and networks.

Technical FAQs

1. How many modules can the 140CRA21110 rack accommodate?

   • The 140CRA21110 rack can house up to 10 modules, including CPU, I/O, and communication modules.

2. What is the power supply requirement for the 140CRA21110?

   • The 140CRA21110 rack requires a 24V DC power supply for operation.

3. What is the maximum number of modules I can use in the 140CRA21110?

   • The rack can accommodate up to 10 modules, providing flexibility for various automation needs.

4. Is the 140CRA21110 compatible with all Modicon Quantum modules?

   • Yes, the 140CRA21110 is compatible with a wide range of Modicon Quantum CPU, I/O, and communication modules, offering great flexibility for system configuration.

5. What are the dimensions of the 140CRA21110 rack?

   • The 140CRA21110 has the following dimensions: 17.7" (450 mm) in width, 7.7" (196 mm) in height, and 12.6" (320 mm) in depth.

6. What is the operating temperature range for the 140CRA21110?

   • The 140CRA21110 operates in a temperature range from 0°C to 60°C, ensuring reliability in most industrial environments.

7. Can I use the 140CRA21110 rack in hazardous locations?

   • The 140CRA21110 is designed for industrial use, but for hazardous environments, additional protective measures or certified modules may be required.

8. How is the 140CRA21110 rack mounted?

   • The 140CRA21110 rack is rack-mounted and fits standard 19-inch racks, making it easy to install in most industrial setups.

9. What is the weight of the 140CRA21110 rack?

   • The 140CRA21110 weighs approximately 4.2 kg (9.26 lbs).

10. What software is compatible with the 140CRA21110?

    • The 140CRA21110 rack is compatible with Unity Pro and SoMachine software, which are used for configuration, programming, and diagnostics.
