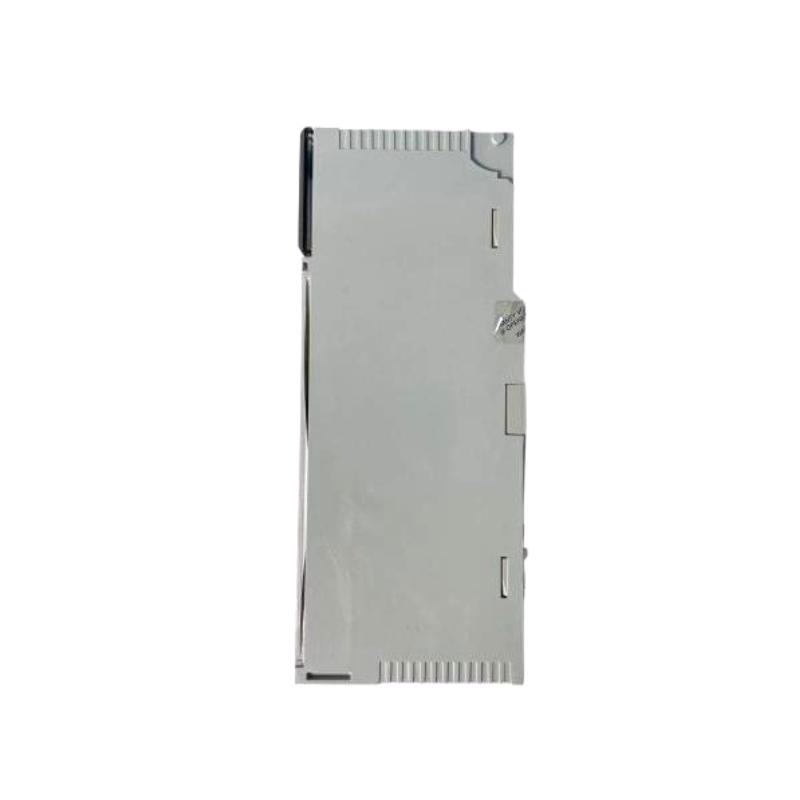

The Schneider Electric 140CRA31200C is an advanced Modicon Quantum Series Rack, designed to house a combination of Modicon Quantum CPUs, I/O modules, and communication modules for large-scale, high-performance automation systems. With the ability to accommodate 16 modules, the 140CRA31200C offers exceptional scalability and flexibility, making it ideal for industries where high data throughput, real-time processing, and system expansion are critical.

As part of the Modicon Quantum series, the 140CRA31200C rack is designed to support complex industrial applications such as manufacturing, energy management, oil & gas, water treatment, and pharmaceuticals, ensuring that your automation system can grow as your needs evolve. This 19-inch rack-mounted system integrates seamlessly with Schneider Electric’s extensive range of I/O, CPU, and communication modules, offering high reliability and easy expansion for diverse automation tasks.

Technical Specifications

Feature	Details
Model	140CRA31200C
Type	Modicon Quantum Rack
Maximum Modules	16 Modules
Mounting Type	Rack-mounted
Rack Size	19-inch
Dimensions (W x H x D)	19.7" x 10.0" x 14.2" (500 mm x 254 mm x 360 mm)
Weight	7.5 kg (16.53 lbs)
Power Supply	24V DC
Compatibility	Modicon Quantum CPU and I/O modules
Operating Temperature	0°C to 60°C

The 140CRA31200C supports up to 16 modules, offering ample capacity for large automation systems that require numerous I/O and CPU modules. With a 19-inch rack design, it can be easily integrated into existing infrastructure, while the operating temperature range of 0°C to 60°C ensures reliable performance in a variety of industrial environments.

Recommended Related Models

140CPU67160 CPU Module: A high-speed Modicon Quantum CPU that offers powerful processing capabilities and is ideal for use with the 140CRA31200C rack in demanding applications.
140CPS2140 Power Supply Module: Provides a stable 24V DC power supply for the 140CRA31200C rack and ensures reliable operation of all connected devices.
140ACM01000 Communication Module: Supports communication protocols like Ethernet/IP, Modbus, and Profibus, enabling easy integration into industrial networks.

Popular Schneider Electric Models

140CRA31200C – Modicon Quantum Rack (16-slot, with enhanced features)
140CPU67160 – Modicon Quantum CPU Module
140DAI83000 – Digital Input Module
140AIA32000 – Analog Input Module
140CPS2140 – Power Supply Module

The Modicon Quantum series is known for its reliability, scalability, and high performance, providing seamless integration and communication across industrial automation systems.

Applications

The Schneider Electric 140CRA31200C rack is ideal for applications in industries that require complex, high-performance automation systems. Some common applications include:

Manufacturing Automation: Used for controlling automated production lines, robotic systems, and material handling processes with high precision and minimal downtime.
Energy & Utilities: Facilitates the management of power distribution, grid monitoring, and energy-efficient systems, helping to optimize overall performance.
Water & Wastewater Treatment: Ensures smooth operation of filtration, pumping, chemical dosing, and treatment processes, maintaining system reliability and efficiency.
Oil & Gas: Supports automation in upstream, midstream, and downstream applications, including oil extraction, refining, and pipeline monitoring.
Pharmaceuticals: Handles precision control for processes such as mixing, filling, and packaging, ensuring compliance with stringent industry regulations.

Advantages

High Scalability: With 16 available slots, the 140CRA31200C rack offers flexibility to accommodate a large number of modules, making it ideal for complex and growing automation systems.
Compact & Efficient Design: Despite its high capacity, the 19-inch rack design ensures a compact and space-saving solution for system integration, fitting into most industrial setups.
Wide Temperature Range: The 0°C to 60°C operating temperature range ensures reliable performance across diverse environmental conditions.
Seamless Integration: The 140CRA31200C is fully compatible with Modicon Quantum CPUs and I/O modules, facilitating smooth communication and control within the system.
Enhanced Reliability: The design is tailored for high-reliability applications, ensuring continuous operation with minimal downtime in mission-critical environments.

Technical FAQs

How many modules can the 140CRA31200C rack accommodate?
- The 140CRA31200C can house up to 16 modules, offering flexibility for larger and more complex systems.
What power supply is required for the 140CRA31200C rack?
- The 140CRA31200C rack requires a 24V DC power supply to operate.
What are the dimensions of the 140CRA31200C rack?
- The 140CRA31200C rack measures 19.7" (500 mm) in width, 10.0" (254 mm) in height, and 14.2" (360 mm) in depth.
Can I use the 140CRA31200C with all Modicon Quantum modules?
- Yes, the 140CRA31200C is compatible with a wide range of Modicon Quantum CPUs, I/O modules, and communication devices.
What is the operating temperature range of the 140CRA31200C?
- The operating temperature range of the 140CRA31200C is from 0°C to 60°C, ensuring reliable operation in most industrial environments.
Is the 140CRA31200C suitable for use in hazardous environments?
- The 140CRA31200C is designed for general industrial environments. Additional protective measures or certified modules may be required for hazardous locations.
How is the 140CRA31200C rack mounted?
- The 140CRA31200C is a rack-mounted unit and fits standard 19-inch racks, making it easy to install in most industrial control setups.
What is the weight of the 140CRA31200C rack?
- The 140CRA31200C weighs approximately 7.5 kg (16.53 lbs).
What software is compatible with the 140CRA31200C?
- The 140CRA31200C is compatible with Unity Pro and SoMachine software for configuration, monitoring, and diagnostics.
What are the advantages of using the 140CRA31200C over smaller models in the Modicon Quantum series?
- The 140CRA31200C offers 16 slots for greater scalability, ideal for more complex and larger systems requiring extensive I/O and higher processing capacity.
