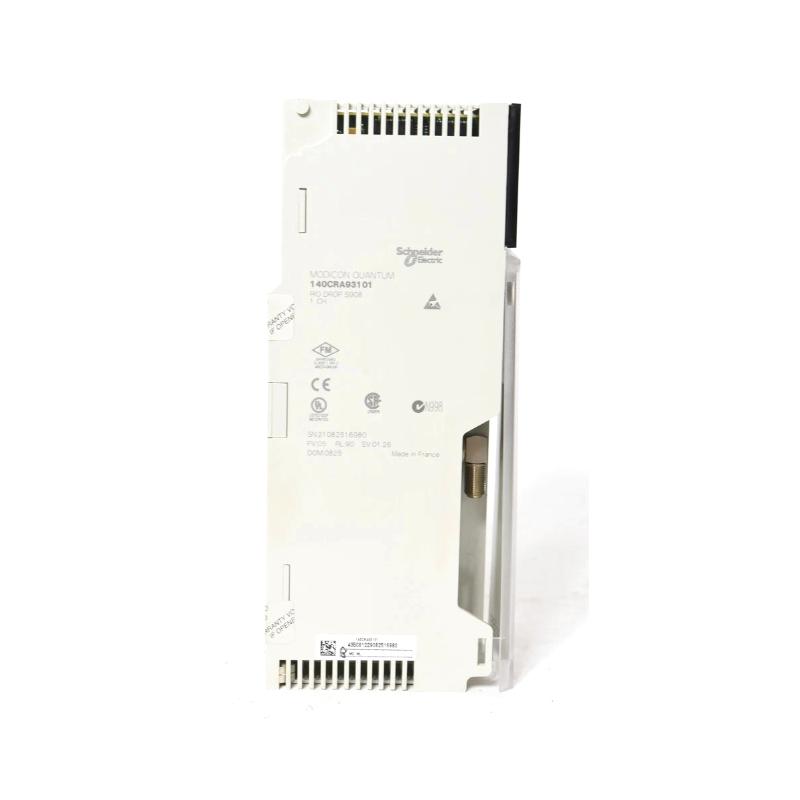

The Schneider Electric 140CRA93101 is a high-performance Modicon Quantum Series Rack designed to support a wide variety of Modicon Quantum modules. This 19-inch rack-mounted system offers exceptional scalability, providing the ideal foundation for medium to large-scale industrial automation systems that require real-time control, high-speed data processing, and easy expansion.

With the capability to accommodate up to 10 modules, the 140CRA93101 is perfect for industries such as manufacturing, energy management, oil & gas, water treatment, and pharmaceuticals, where reliability, flexibility, and performance are essential. The rack is compatible with various Modicon Quantum CPUs, I/O modules, and communication modules, allowing for a highly customizable solution that can grow as your needs evolve.

Technical Specifications

Feature	Details
Model	140CRA93101
Type	Modicon Quantum Rack
Maximum Modules	10 Modules
Mounting Type	Rack-mounted
Rack Size	19-inch
Dimensions (W x H x D)	17.7" x 8.7" x 12.4" (450 mm x 220 mm x 315 mm)
Weight	5.5 kg (12.13 lbs)
Power Supply	24V DC
Compatibility	Modicon Quantum CPU and I/O modules
Operating Temperature	0°C to 60°C

The 140CRA93101 rack is designed to offer a compact yet scalable solution with 10 slots for Modicon Quantum modules. It supports both CPU and I/O modules, ensuring high flexibility for complex automation systems. The system operates within a temperature range of 0°C to 60°C, making it ideal for a wide range of industrial applications.

Recommended Related Models

140CPU67160 CPU Module: A powerful Modicon Quantum CPU module that provides high processing speeds and real-time control, ideal for demanding automation tasks.
140CPS2140 Power Supply Module: Supplies reliable 24V DC power to the 140CRA93101 rack and ensures stable operation of connected modules.
140ACM01000 Communication Module: Offers flexible communication options, such as Ethernet/IP, Modbus, and Profibus, for seamless integration within industrial networks.

Popular Schneider Electric Models

140CRA93101 – Modicon Quantum Rack (10-slot)
140CPU67160 – Modicon Quantum CPU Module
140DAI83000 – Digital Input Module
140AIA32000 – Analog Input Module
140CPS2140 – Power Supply Module

The Modicon Quantum series is known for its scalability and reliability, making it an excellent choice for complex automation systems across various industries.

Applications

The Schneider Electric 140CRA93101 rack is designed for diverse industrial automation applications, providing a robust and scalable solution. Some common applications include:

Manufacturing Automation: Controls automated production lines, robotic systems, and assembly processes, ensuring precision and reducing downtime.
Energy & Utilities: Manages power generation, distribution systems, and energy monitoring to improve efficiency and reliability.
Water & Wastewater Treatment: Controls water filtration, chemical dosing, pumping stations, and other vital processes to maintain water quality.
Oil & Gas: Supports automation in upstream, midstream, and downstream operations, including drilling, refining, and pipeline monitoring.
Pharmaceuticals: Handles critical manufacturing processes like mixing, filling, and packaging, ensuring adherence to strict regulatory standards.

Advantages

Compact Design with Scalability: The 10-slot design allows for easy integration into existing industrial systems, while offering scalability to meet growing automation needs.
Versatile Compatibility: Compatible with Modicon Quantum CPUs, I/O modules, and communication devices, allowing for a highly customizable system.
Reliable Performance: Built for demanding industrial environments, the 140CRA93101 operates with high reliability and minimal downtime.
Wide Temperature Range: The 0°C to 60°C operating temperature range ensures the rack works reliably in a wide range of environments, including harsh industrial conditions.
Future-Proof: The modular design allows for system expansion, ensuring that the 140CRA93101 can evolve to meet future requirements.

Technical FAQs

How many modules can the 140CRA93101 rack accommodate?
- The 140CRA93101 rack can house up to 10 modules, providing flexibility for a wide range of automation systems.
What is the power supply requirement for the 140CRA93101 rack?
- The 140CRA93101 requires a 24V DC power supply.
What are the dimensions of the 140CRA93101 rack?
- The 140CRA93101 measures 17.7" (450 mm) in width, 8.7" (220 mm) in height, and 12.4" (315 mm) in depth.
Can I use the 140CRA93101 with all Modicon Quantum modules?
- Yes, the 140CRA93101 is fully compatible with Modicon Quantum CPUs, I/O modules, and communication devices, offering flexibility for your automation system.
What is the operating temperature range of the 140CRA93101?
- The 140CRA93101 operates within a temperature range of 0°C to 60°C, making it suitable for most industrial environments.
Is the 140CRA93101 suitable for use in hazardous environments?
- The 140CRA93101 is designed for general industrial environments. Additional protective measures may be required for hazardous locations.
How is the 140CRA93101 rack mounted?
- The 140CRA93101 is rack-mounted and fits standard 19-inch racks, allowing for easy installation in most industrial setups.
What is the weight of the 140CRA93101 rack?
- The 140CRA93101 weighs approximately 5.5 kg (12.13 lbs).
What software is compatible with the 140CRA93101?
- The 140CRA93101 is compatible with Unity Pro and SoMachine software for configuration, programming, diagnostics, and monitoring.
What are the advantages of using the 140CRA93101 over smaller models in the Modicon Quantum series?
- The 140CRA93101 offers 10 slots, allowing for greater scalability and customization for medium-sized automation systems that require more I/O and communication modules.
