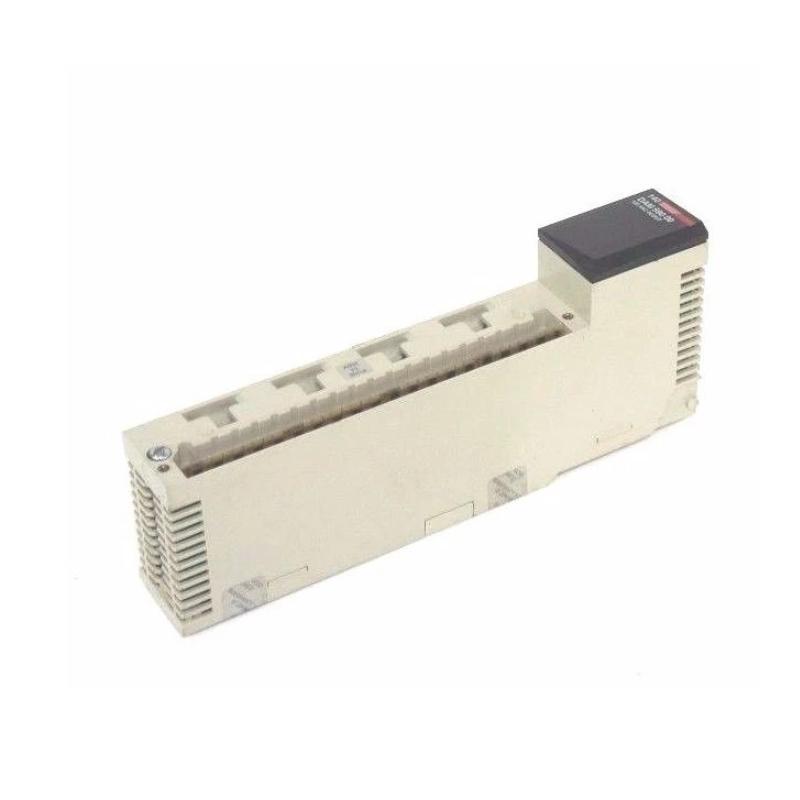

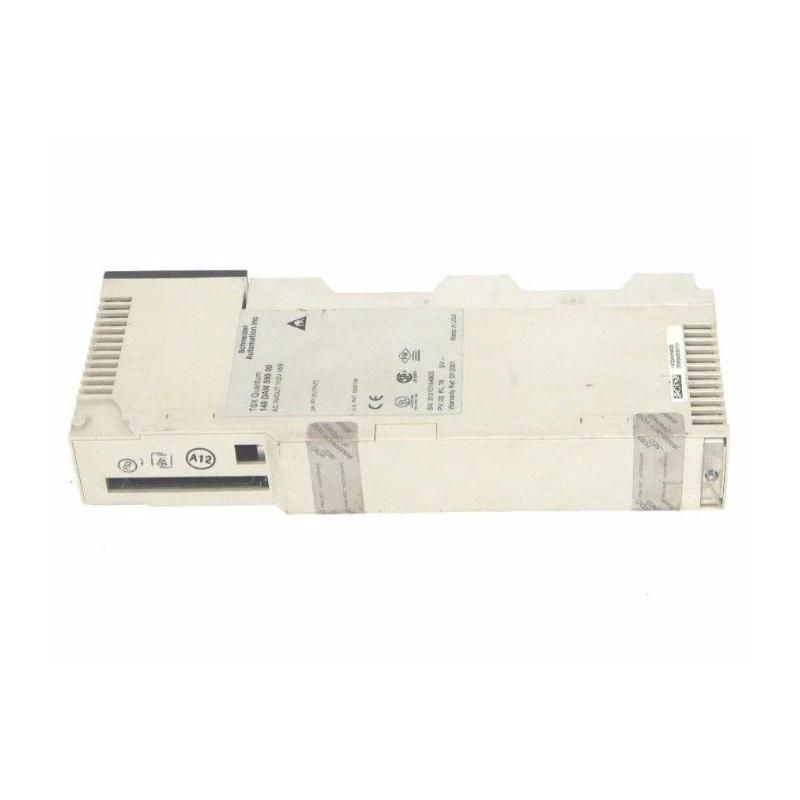

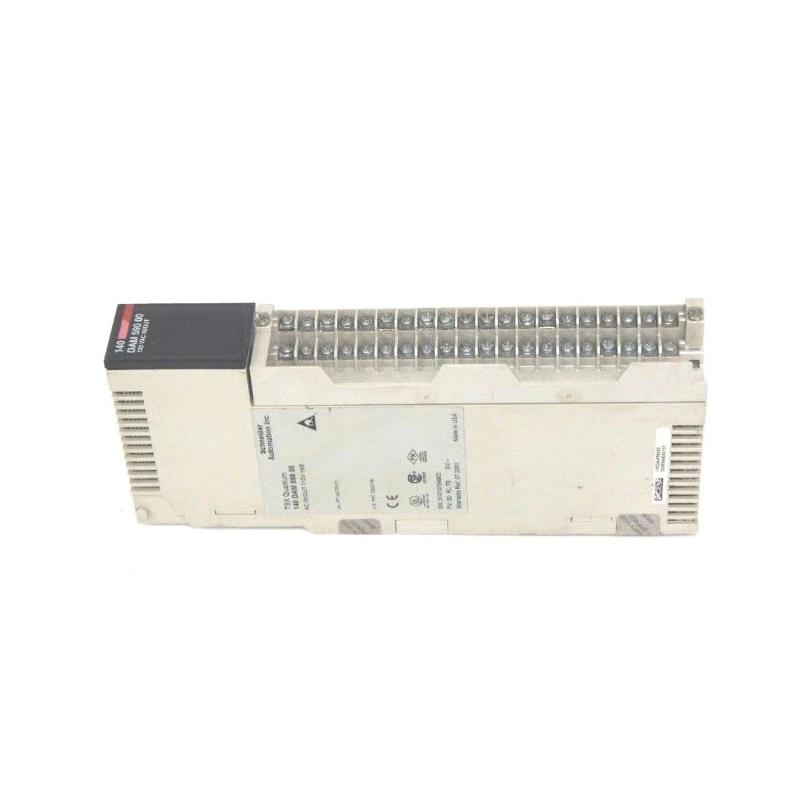

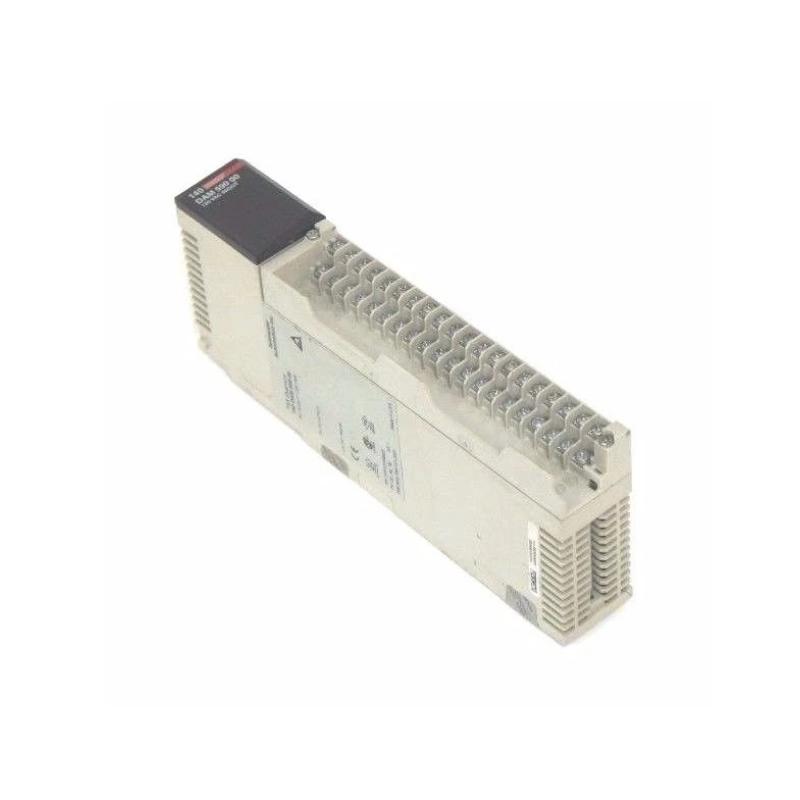

The Schneider Electric 140DAM59000C is a high-performance Digital Input/Output (I/O) module designed for use with the Modicon Premium automation system. This module provides a combination of 16 digital inputs and 16 digital outputs (32 points total), operating at 24V DC. Ideal for industrial automation applications, the 140DAM59000C offers a compact, reliable solution for controlling and monitoring various devices in process control, manufacturing, energy management, and building automation systems. The module's flexible I/O configuration and robust design make it well-suited for demanding environments, where high reliability and continuous operation are essential.

Technical Specifications

Feature	Description
Model Number	140DAM59000C
Module Type	Digital Input/Output Module (32 Points)
Input Voltage	24V DC
Digital Inputs	16 Digital Inputs (24V DC)
Digital Outputs	16 Digital Outputs (24V DC)
Current Rating	5mA per input (typical)
Output Type	Relay or Transistor (depending on configuration)
Mounting Style	Rack Mountable (for Modicon Premium system)
Dimensions (H x W x D)	4.3 x 5.1 x 2.4 inches (110 x 130 x 60 mm)
Weight	0.55 kg
Operating Temperature Range	0°C to 55°C
Humidity	10% to 95%, non-condensing
Certifications	CE, UL, CSA, IECEx
Status Indicators	LED indicators for power and communication

Recommended Related Models

To optimize your Modicon system, consider these complementary Schneider Electric products:

140CRA93100: Modicon Premium I/O Rack (16 slots)
140PRA93100: Modicon Premium Power Supply Module
140CPS11400: Modicon Ethernet Communication Processor
140DTA35300: Modicon Digital Output Module (16 points)
140DOA35300: Modicon Digital Output Module (32 points)

Popular Schneider Electric Models

Schneider Electric offers a variety of modular and customizable solutions for industrial automation. Some of the most popular Modicon Premium models include:

140CPU67160: Modicon Premium CPU with 1.5MB memory
140CRA93110: Modicon Premium I/O Rack (32 slots)
140PRA93100: Modicon Premium Power Supply Module
140EHC02000: Modicon Analog I/O Module (8 input/8 output)
140NOA93100: Modicon Premium I/O Power Supply Module

Applications

The 140DAM59000C module is perfect for industrial applications that require both analog signal acquisition and control. Its use cases include:

Automated Manufacturing: Monitoring and controlling parameters like temperature, pressure, and flow within production lines to maintain consistency and optimize operations.
Energy Management: Collecting data from energy meters and controlling output devices to optimize power consumption, ensuring energy efficiency and cost savings.
Water and Wastewater Treatment: Collecting data from sensors such as pH meters and flow sensors while controlling actuators like valves for effective water treatment processes.
Building Automation: Integrating environmental control systems such as HVAC and lighting, by both monitoring conditions (temperature, humidity) and controlling outputs (heating/cooling systems).
Oil & Gas: Monitoring critical parameters such as pressure and temperature and controlling actuators to regulate flow and ensure operational safety in potentially hazardous environments.

Advantages

The 140DAM59000C provides multiple advantages for industrial automation systems:

Flexible I/O Configuration: Offering 16 digital inputs and 16 digital outputs, the module allows you to monitor and control a wide range of devices simultaneously.
24V DC Operation: The module operates with 24V DC signals, which are commonly used in industrial control systems, ensuring compatibility with a variety of devices.
Compact and Efficient: The 140DAM59000C is compact in size, making it easy to integrate into existing systems, while also providing high performance and reliability.
Continuous Operation: Designed to operate in harsh industrial environments, it provides robust performance with a temperature range of 0°C to 55°C.
Seamless Integration: The module easily integrates into Schneider Electric’s Modicon Premium system, allowing for smooth communication and control in larger automation architectures.
Reliable Communication: The module features LED indicators for real-time status updates, ensuring that system diagnostics are readily available.

Technical FAQs

What is the total number of I/O points in the 140DAM59000C?
The module provides a total of 32 I/O points: 16 digital inputs and 16 digital outputs.
What voltage does the 140DAM59000C operate at?
The module operates with 24V DC signals, which is typical for many industrial control systems.
What is the current rating for the inputs of the 140DAM59000C?
The typical current rating for the inputs is 5mA per input.
What types of outputs are supported by the 140DAM59000C?
The module supports relay or transistor outputs, depending on the configuration.
What is the operating temperature range of the 140DAM59000C?
The module operates within an ambient temperature range of 0°C to 55°C, suitable for most industrial environments.
Can the 140DAM59000C be used for controlling machinery?
Yes, this module is ideal for controlling machinery, sensors, and actuators in applications such as manufacturing automation and process control.
What is the weight of the 140DAM59000C?
The module weighs approximately 0.55 kg (1.21 lbs), making it lightweight and easy to handle during installation.
Does the 140DAM59000C support hazardous environment use?
Yes, the module is IECEx certified, which means it is suitable for use in hazardous environments, such as those found in oil & gas or chemical processing plants.
What certifications does the 140DAM59000C hold?
The module holds CE, UL, CSA, and IECEx certifications, ensuring compliance with international safety standards.
How does the 140DAM59000C compare to other Schneider Electric I/O modules?
The 140DAM59000C is distinguished by its 32 I/O points and its ability to interface with 24V DC devices, making it a versatile choice for applications that require both input and output capabilities in industrial control systems.
