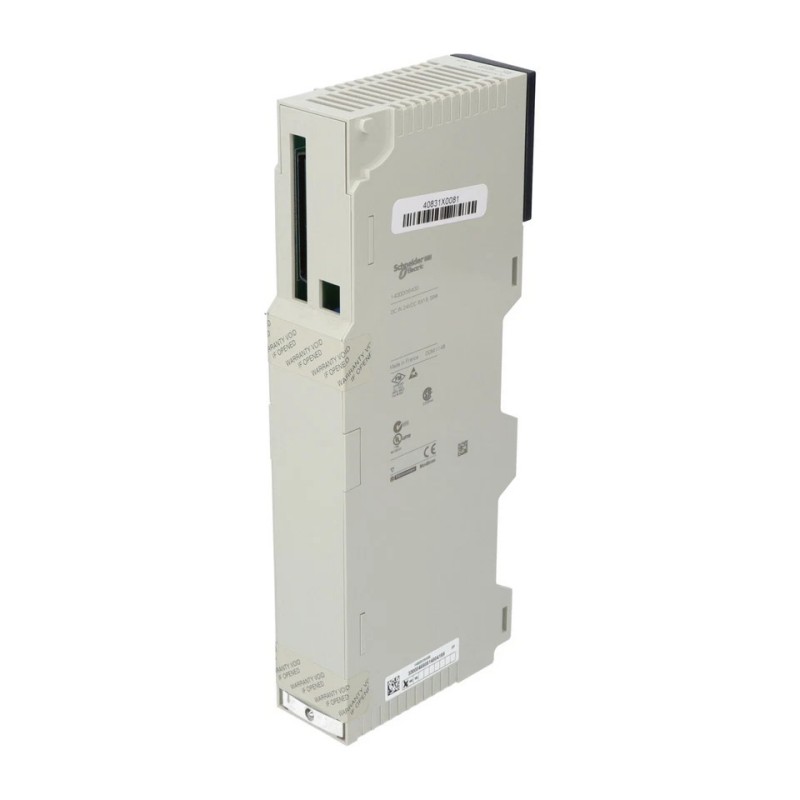

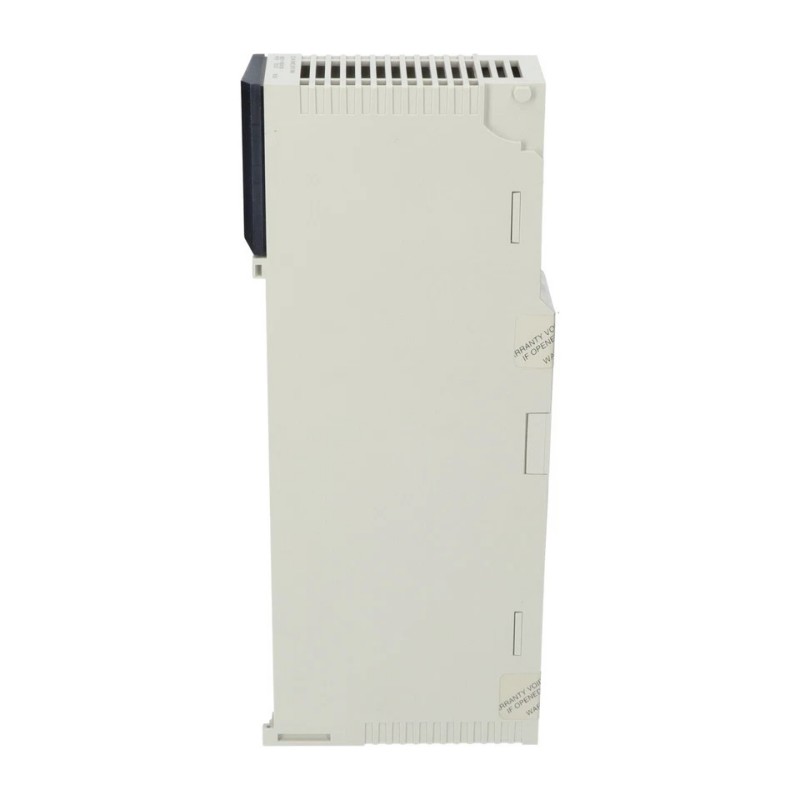

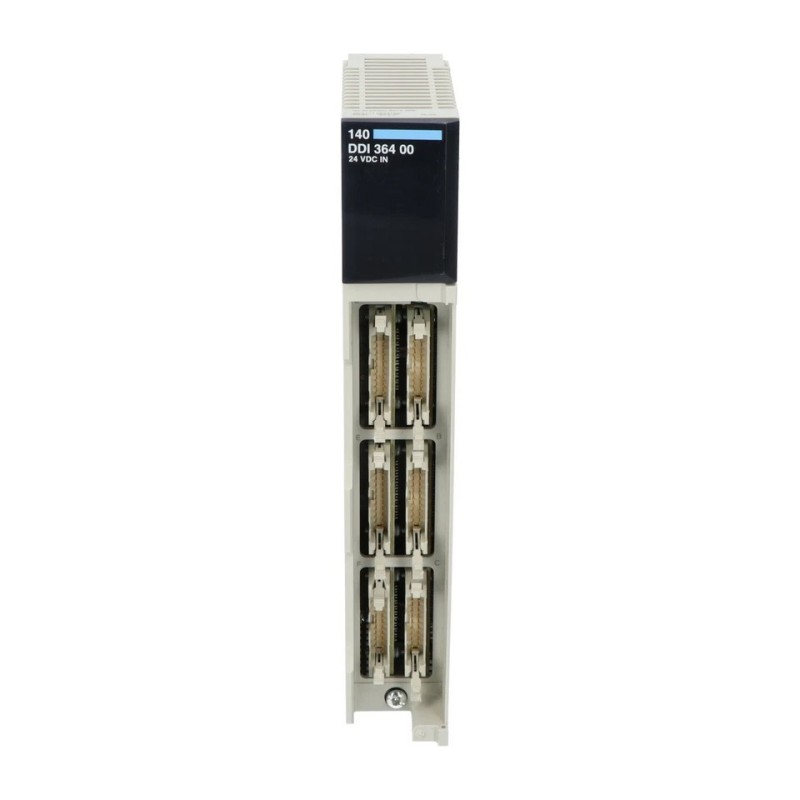

Schneider 140DDI36400 24V DC Digital Input Module with 32 Channels – High-Speed and Reliable Input Control for Complex Industrial Systems

Applications

The 140DDI36400 Digital Input Module is versatile and can be applied to a wide range of industrial automation systems, including:

• Manufacturing Automation: Monitors signals from a variety of field devices, such as sensors and switches, to control production lines and machines.

• Process Control: Ensures fast and accurate signal detection from proximity sensors, limit switches, and safety devices in processing systems.

• Packaging Systems: Provides input control for packaging machinery, ensuring smooth and reliable operations across the packaging process.

• Material Handling: Integrates seamlessly into automated material handling systems, such as conveyor belts, robotic arms, and sorting mechanisms.

• Building Automation: Controls inputs for various electrical systems, such as HVAC, lighting, and security in commercial and industrial buildings.

Advantages

• High Input Capacity: The module provides 32 digital inputs, making it ideal for large-scale applications where numerous signals need to be monitored simultaneously.

• Fast Response Time: With a typical response time of just 1 ms, the 140DDI36400 ensures that your system reacts swiftly to changes in input signals.

• Robust Isolation: Galvanic isolation between the inputs and the system helps protect against electrical noise and prevents system malfunctions due to electrical interference.

• Compact and Space-Efficient: Despite its high input capacity, the module's compact design (90 mm x 90 mm x 90 mm) allows it to fit into tight spaces, making it perfect for installations with limited room.

• Wide Operating Range: The 140DDI36400 is designed to operate in temperatures ranging from -20°C to 60°C, ensuring reliable performance in a variety of industrial conditions.

• Seamless Integration: Fully compatible with Schneider Electric Modicon PLCs, the module integrates effortlessly into existing control systems for flexible and scalable automation solutions.

Technical FAQs

1. How many input channels does the 140DDI36400 support?
   The module supports 32 sinking (negative logic) digital inputs.

2. What is the voltage range for the inputs on this module?
   The input voltage range is from 20.4V to 27.6V DC, making it compatible with most 24V DC systems.

3. What current does each input channel consume?
   Each input channel consumes approximately 6.5 mA of current when the signal is activated.

4. What is the response time of the module?
   The typical response time of the 140DDI36400 is 1 ms, providing fast and reliable input detection.

5. Does the 140DDI36400 provide electrical isolation?
   Yes, the module features galvanic isolation between inputs and the system, which helps protect against electrical surges and interference.

6. How is the 140DDI36400 mounted?
   The module mounts easily onto standard DIN rails, simplifying installation and integration into your system.

7. What is the operating temperature range for the 140DDI36400?
   The module operates within a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for most industrial environments.

8. Can multiple 140DDI36400 modules be used in the same system?
   Yes, additional modules can be integrated to increase the number of inputs in your system as needed.

9. Is the 140DDI36400 compatible with Schneider Modicon PLCs?
   Yes, the module is fully compatible with Schneider Electric’s Modicon PLCs, allowing for easy integration and expansion of your control system.

10. Does the 140DDI36400 require any additional accessories for installation?
    No, the module is designed for quick and easy installation on standard DIN rails, with no additional accessories required for basic setup.
