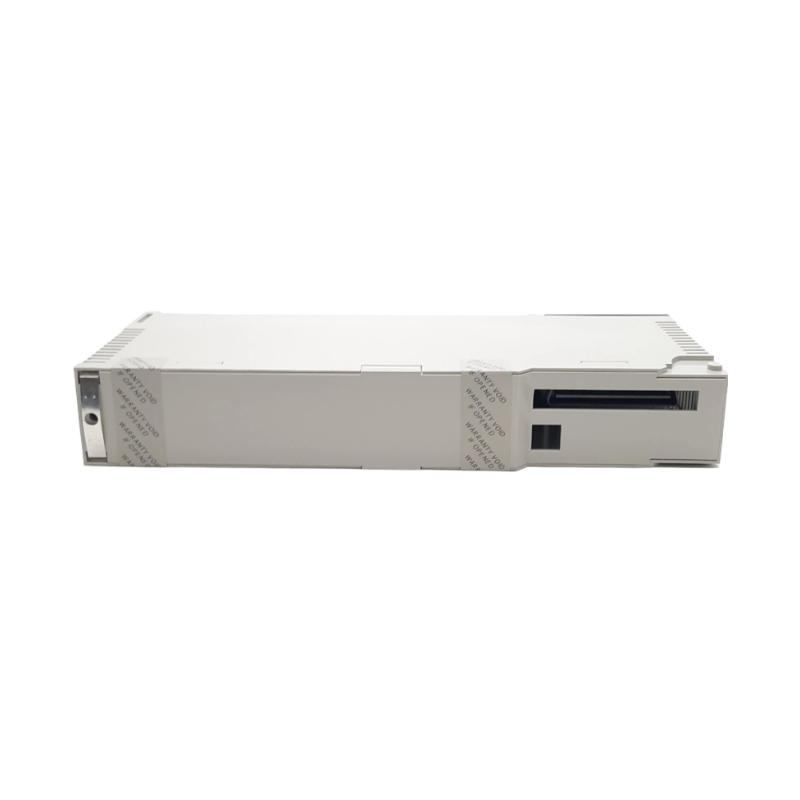

Schneider 140DDI36400C 24V DC Digital Input Module with 32 Channels – High-Speed, Reliable Signal Monitoring for Industrial Automation

Applications

The 140DDI36400C Digital Input Module is designed for a wide range of industrial automation applications, such as:

• Manufacturing Automation: Monitors input signals from a variety of sensors, limit switches, and safety devices used in production lines and factory automation systems.

• Process Control: Ideal for systems that require precise monitoring of proximity sensors, temperature switches, and other devices in industries such as chemical, pharmaceutical, and food processing.

• Packaging Systems: Provides efficient and reliable input control for packaging machinery, ensuring optimal performance in automated packaging lines.

• Material Handling: Facilitates input monitoring for material handling systems like conveyor belts, robotic arms, and sorting mechanisms in warehouses and distribution centers.

• Building Automation: Controls inputs from various devices in building management systems, including HVAC, lighting, and security systems, providing seamless control and monitoring.

Advantages

• High Input Density: The module supports 32 digital input channels, making it ideal for large-scale automation systems requiring a high number of monitored signals.

• Quick Response: The 140DDI36400C offers a fast response time of just 1 ms, ensuring real-time monitoring and control of fast-moving industrial processes.

• Superior Isolation: Galvanic isolation between inputs and the system enhances protection from electrical noise, ensuring stable operation even in harsh environments.

• Compact and Efficient: With its compact design (90 mm x 90 mm x 90 mm), the module offers high input capacity while saving space, making it perfect for installations with space limitations.

• Wide Operating Temperature Range: The 140DDI36400C operates in temperatures ranging from -20°C to 60°C, making it suitable for a variety of industrial environments with fluctuating temperatures.

• Easy Integration: The module integrates seamlessly with Schneider Electric Modicon PLCs, allowing for flexible and scalable automation solutions without the need for additional interfaces or configurations.

Technical FAQs

1. How many digital inputs can the 140DDI36400C support?
   The module supports 32 sinking (negative logic) digital inputs.

2. What is the input voltage range for this module?
   The input voltage range is from 20.4V to 27.6V DC, which is compatible with most standard 24V DC systems.

3. What current does each input channel consume?
   Each input channel consumes approximately 6.5 mA of current when activated.

4. What is the response time of the module?
   The module features a typical response time of 1 ms, ensuring quick detection and processing of input signals.

5. Does the 140DDI36400C offer electrical isolation?
   Yes, it provides galvanic isolation between inputs and the system, which protects against electrical interference and improves the system's reliability.

6. How is the 140DDI36400C mounted?
   The module is designed for easy DIN rail mounting, simplifying installation and maintenance.

7. What is the operating temperature range of the module?
   The module operates within a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for various industrial environments.

8. Can I use multiple 140DDI36400C modules in the same system?
   Yes, multiple modules can be used to scale the number of input channels in your system, depending on your application needs.

9. Is the 140DDI36400C compatible with other Schneider Modicon modules?
   Yes, this module integrates seamlessly with Schneider Electric's Modicon PLCs and other Schneider modules, offering a flexible and scalable automation solution.

10. Does the 140DDI36400C require additional accessories for installation?
    No, the module is designed for quick installation on standard DIN rails with no additional accessories needed for basic setup.
