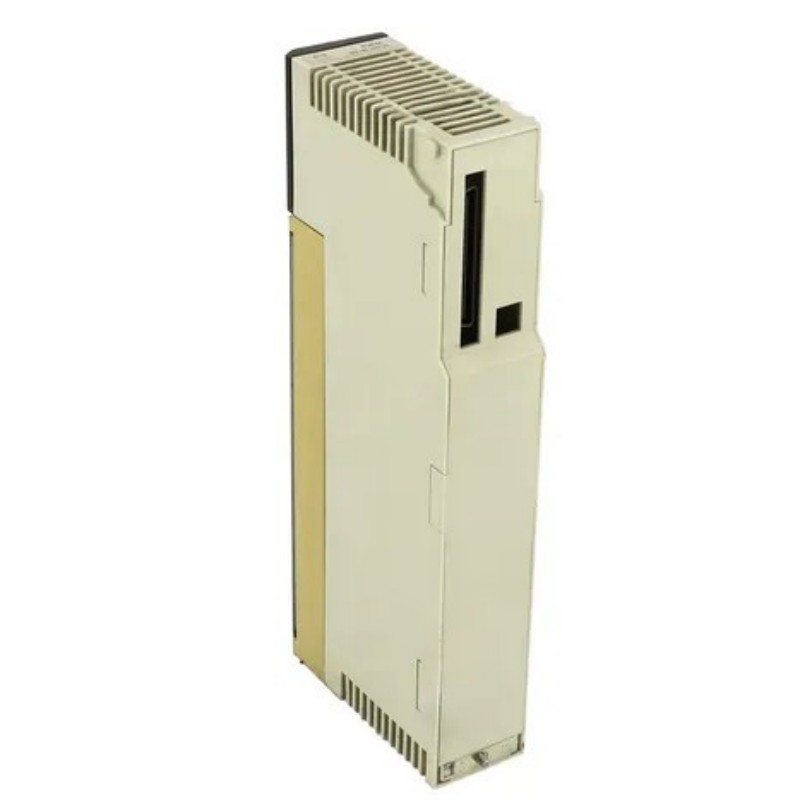

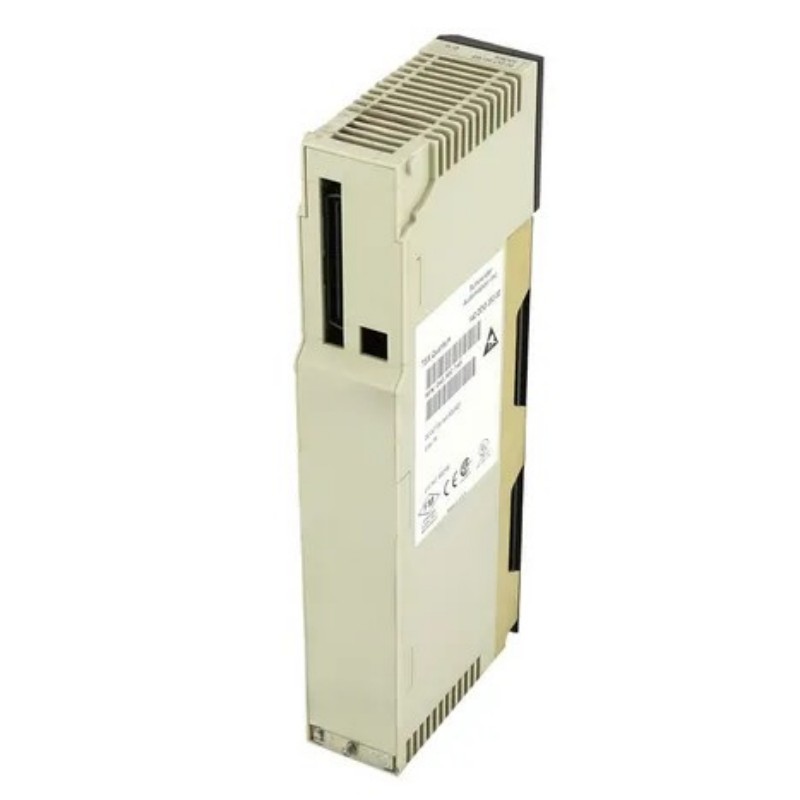

Schneider 140DDO35300 24V DC Digital Output Module with 32 Channels – Reliable and High-Performance Control for Industrial Automation

Applications

The 140DDO35300 Digital Output Module is designed for use in various industrial automation applications, including:

• Manufacturing Automation: Ideal for controlling field devices such as actuators, relays, and other output devices in automated production lines and manufacturing systems.

• Process Control: Provides reliable output control for systems in chemical, pharmaceutical, and food processing industries, enabling seamless operations and system safety.

• Material Handling: Used for controlling output devices in material handling systems such as conveyors, robotic arms, and sorting mechanisms, ensuring smooth and efficient system performance.

• Packaging Systems: Ensures precise control of packaging machinery, offering reliable output control to automate packaging, sealing, and labeling processes.

• Building Automation: Manages the output control for electrical devices in HVAC, lighting, and security systems within large commercial or industrial buildings, contributing to energy efficiency and system reliability.

Advantages

• High Output Capacity: With 32 output channels, the 140DDO35300 offers high-density control, making it perfect for applications that require many output signals in a compact space.

• Fast Response Time: The module delivers a fast response time of 1 ms (typical), ensuring quick switching and minimal delay in output control.

• Galvanic Isolation: The 140DDO35300 provides galvanic isolation between the output channels and the system, ensuring that the system remains protected from electrical noise and surges.

• Compact Design: Despite offering 32 output channels, the module is compact and designed for easy DIN rail mounting, simplifying installation and saving valuable panel space.

• Wide Temperature Range: The module is engineered to operate in a wide temperature range from -20°C to 60°C, making it suitable for diverse industrial environments with varying conditions.

• Seamless Integration: The module integrates easily with Schneider Electric’s Modicon PLC systems, offering scalability and flexibility to grow with your automation system.

Technical FAQs

1. How many digital outputs does the 140DDO35300 support?
   The module provides 32 sourcing (positive logic) digital outputs.

2. What is the output voltage range for the 140DDO35300?
   The module operates at a rated output voltage of 24V DC, which is common for industrial control systems.

3. What is the maximum current supported by each output channel?
   Each output channel can support a maximum current of 0.5 A.

4. What is the response time of the module?
   The 140DDO35300 has a typical response time of 1 ms, ensuring quick activation of connected devices.

5. Does the module provide electrical isolation?
   Yes, the module offers galvanic isolation between the output channels and the control system, protecting the system from electrical surges.

6. How is the 140DDO35300 mounted?
   The module is designed for easy DIN rail mounting, making installation quick and secure.

7. What is the operating temperature range for this module?
   The module operates effectively in temperatures ranging from -20°C to 60°C, allowing it to function in a variety of industrial environments.

8. Can I use multiple 140DDO35300 modules in a single system?
   Yes, multiple modules can be used to increase the number of output channels and meet the needs of more complex control systems.

9. Is the 140DDO35300 compatible with Schneider Modicon PLCs?
   Yes, the module integrates seamlessly with Schneider Electric’s Modicon PLCs, providing a flexible and scalable solution for industrial automation.

10. Are additional accessories required for installation?
    No, the 140DDO35300 is designed for straightforward installation on standard DIN rails, with no additional accessories required.
