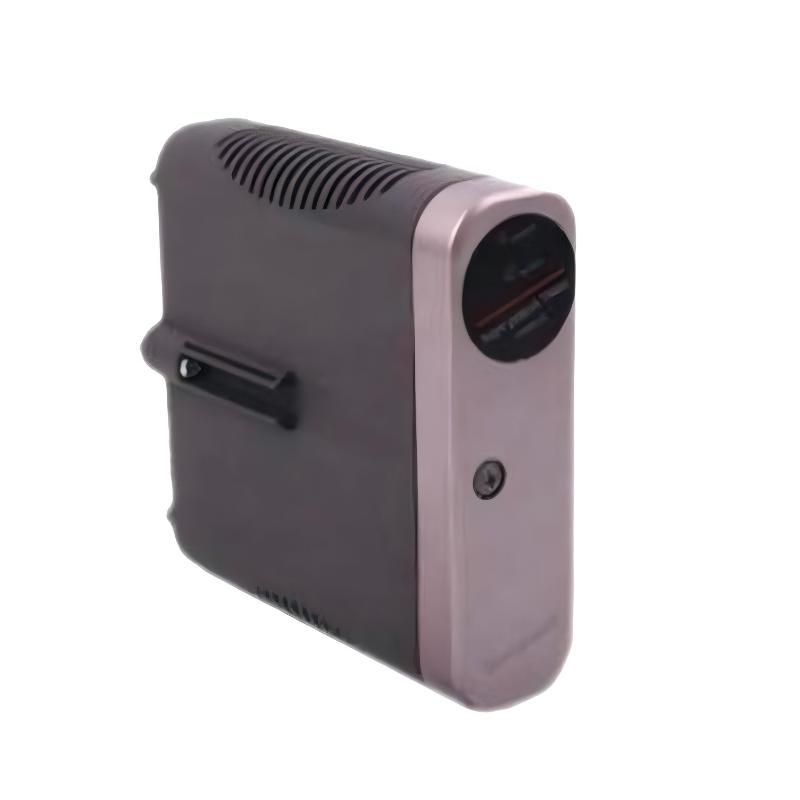

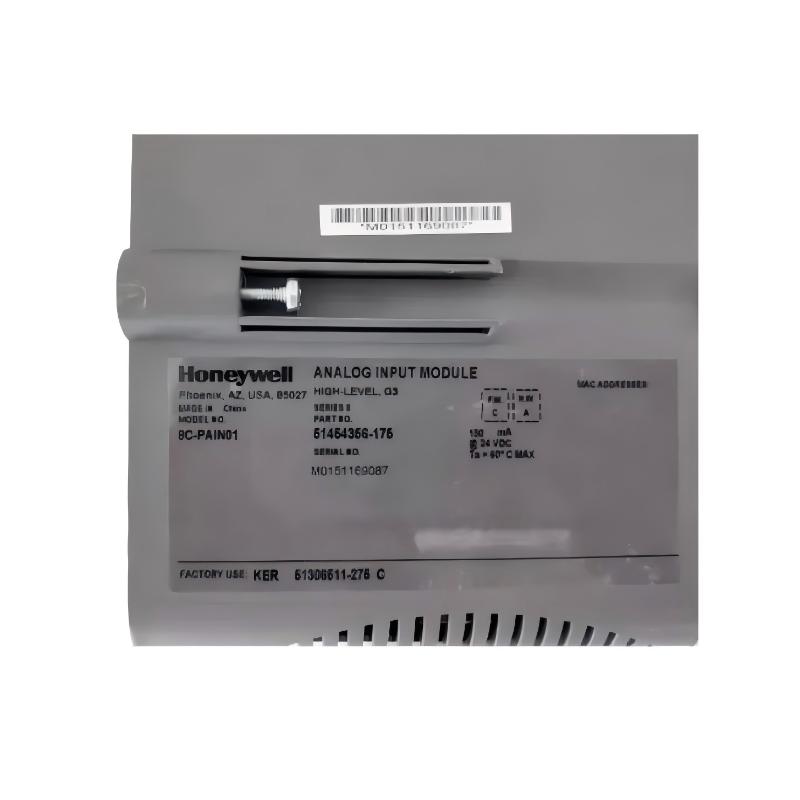

Honeywell 8C-PAIN01 51454356-175 Analog Input Module
Honeywell 8C-PAIN01 51454356-175 Analog Input Module
0.0
Points
Brand:Honeywell DCS Item No.:8C-PAIN01 Product Origin:USA Product Dimensions:157 x 106 x 35 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell 8C-PAIN01 Analog Input Module provides stable, accurate signal acquisition in demanding industrial environments. Its robust design ensures reliable operation under thermal, electrical, and mechanical stress, while intelligent diagnostics help operators identify issues quickly.
This module is an essential component for Honeywell distributed control systems, providing high-fidelity analog data for optimized process control and operational efficiency.
Technical Specifications
Specification
Details
Model
8C-PAIN01 51454356-175 Analog Input Module
Function
Multi-channel analog signal acquisition
Input Type
Standard industrial 4–20 mA and voltage analog signals
The Honeywell 8C-PAIN01 Analog Input Module is designed to capture and process analog signals from field instruments, enabling precise monitoring and control within distributed automation systems.
It is commonly deployed in process industries including petrochemical, power generation, water treatment, and high-precision manufacturing. The module is ideal for reading temperature, pressure, flow, and level signals from standard industrial transmitters.
Advantages
High-Accuracy Signal Processing: Maintains reliable measurements even in electrically noisy or thermally challenging environments.
Multiple Channel Support: Processes several analog inputs simultaneously, simplifying I/O management.
Industrial Robustness: Resistant to vibration, electromagnetic interference, and temperature fluctuations.
Quick Fault Identification: LED indicators allow immediate detection of channel or module issues.
Easy System Integration: Compatible with Honeywell modular systems for smooth expansion or replacement.
Technical FAQs
What types of signals does the 8C-PAIN01 support?
Standard 4–20 mA and voltage-based analog signals.
Is channel isolation provided?
Yes, each input channel is electrically isolated to prevent interference.
Can it operate in harsh industrial conditions?
Yes, it is designed for high vibration, temperature variation, and electrical noise.
Are diagnostics available for each channel?
Yes, LEDs indicate the status and health of individual channels.
Does it require frequent calibration?
No, the module is designed for long-term stability and minimal maintenance.
Can it handle fast-changing process variables?
Yes, input sampling is optimized for dynamic analog measurements.
What software is required for configuration?
Standard Honeywell engineering tools handle configuration and setup.
Is the module compatible with redundant systems?
Yes, it can be used within redundant architectures.
Is installation straightforward?
Yes, a clear terminal layout simplifies mounting and wiring.
Which industries typically deploy this module?
Petrochemical, power, utilities, water treatment, and high-precision manufacturing.
