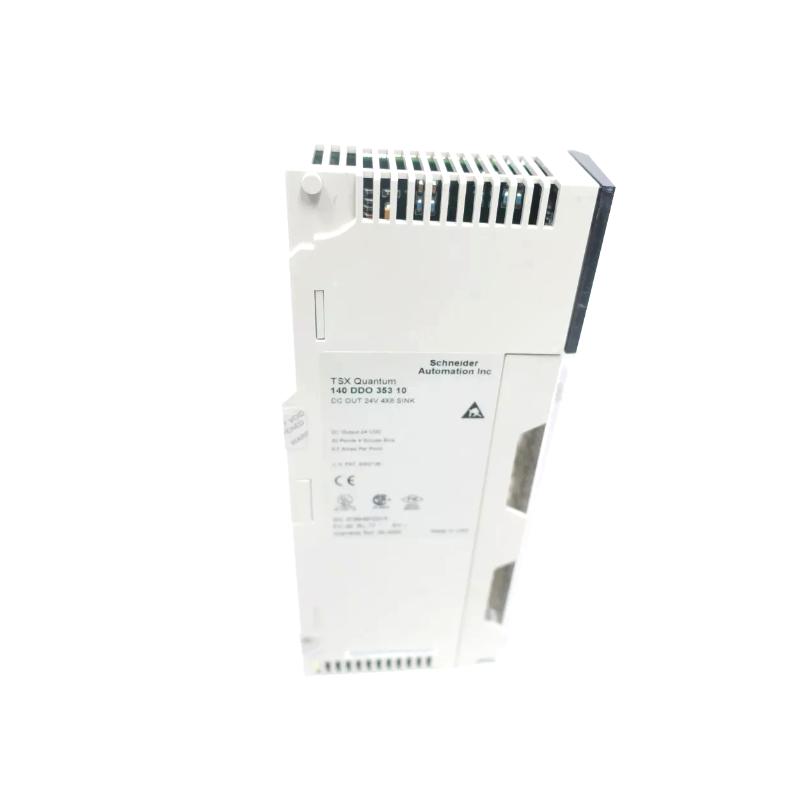

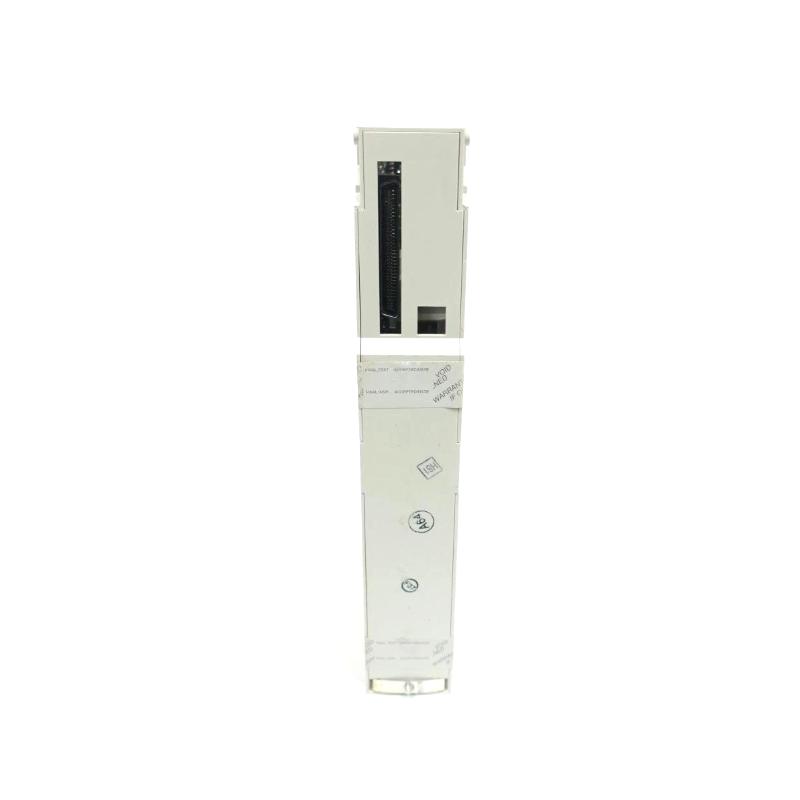

The Schneider Electric 140DDO35310C is an advanced 24V DC digital output module that offers high-density control with 32 output channels. Designed for demanding industrial automation environments, this module provides precise, reliable, and fast output control for a wide range of field devices, such as relays, actuators, and solenoids. With sourcing (positive logic) outputs, the 140DDO35310C is well-suited for controlling digital devices in manufacturing automation, process control, material handling, and building automation systems. Engineered for seamless integration with Schneider Electric’s Modicon PLCs, the 140DDO35310C offers both scalability and high performance, ensuring a smooth and efficient automation process.

Technical Specifications

Model: 140DDO35310C
Type: Digital Output Module
Voltage Rating: 24V DC
Number of Outputs: 32
Output Type: Sourcing (Positive Logic)
Rated Output Voltage: 24V DC
Output Current per Channel: 0.5 A (max)
Isolation: Galvanic Isolation between output channels and the control system
Response Time: 1 ms (typical)
Mounting Type: DIN Rail Mount
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Dimensions: 180 mm x 90 mm x 90 mm
Weight: 0.85 kg

Recommended Related Models

Schneider 140DDI35300C: 32-Point Digital Input Module for expanded input control
Schneider 140DDO15310C: 16-Point Digital Output Module for smaller applications
Schneider 140DDM69000C: 64-Point Digital I/O Module for larger-scale systems

Popular Schneider Models

Schneider 140CPU65150: High-performance CPU for Modicon M340 series
Schneider 140CRA93100: Communication Processor for Modicon PLCs
Schneider 140DRA84000: Relay Output Module for industrial control applications

Applications

The 140DDO35310C Digital Output Module is perfect for use in a range of industrial automation applications:

Manufacturing Automation: Provides reliable output control for field devices like actuators and relays, enabling automated production lines, robotic systems, and material handling processes.
Process Control: Ideal for controlling critical output devices such as pumps, valves, and solenoids in chemical, food, pharmaceutical, and other process industries.
Material Handling Systems: Manages output signals to ensure smooth operation of conveyors, sorting machines, and robotic arms in automated warehouses or factories.
Packaging Systems: Controls output devices in packaging machines, such as filling stations and labeling systems, to improve the efficiency and reliability of packaging lines.
Building Automation: Controls outputs for devices in HVAC, lighting, and security systems, contributing to energy efficiency and optimized operation of commercial and industrial buildings.

Advantages

High Output Density: The 140DDO35310C provides 32 output channels, making it ideal for applications that require a large number of output points in a compact form.
Fast Response Time: The module ensures quick switching of output devices with a typical response time of just 1 ms, ensuring that time-sensitive processes run efficiently.
Galvanic Isolation: Electrical isolation between the output channels and the control system protects the system from electrical surges and noise, ensuring long-term reliability.
Compact Design: Despite supporting 32 outputs, the module's compact design (180 mm x 90 mm x 90 mm) ensures that it can be installed in space-constrained environments, and it can be easily mounted on standard DIN rails.
Wide Temperature Range: With an operating temperature range from -20°C to 60°C, the 140DDO35310C is versatile enough to be used in various industrial environments, even those with extreme temperature fluctuations.
Seamless Integration: Fully compatible with Schneider Electric’s Modicon PLCs, the 140DDO35310C integrates easily into your automation system, providing scalability and flexibility for future expansion.

Technical FAQs

How many digital outputs does the 140DDO35310C support?
The 140DDO35310C supports 32 sourcing (positive logic) digital outputs.
What is the voltage rating of the outputs?
The module operates with a rated output voltage of 24V DC, which is standard for many industrial automation applications.
What is the maximum current for each output channel?
Each output channel can handle up to 0.5 A of current.
What is the typical response time of the module?
The 140DDO35310C has a typical response time of 1 ms, ensuring fast and accurate switching for time-sensitive applications.
Does the module offer electrical isolation?
Yes, the module provides galvanic isolation between the output channels and the system, protecting it from electrical interference and surges.
How is the 140DDO35310C mounted?
The module is designed for DIN rail mounting, allowing for easy installation and space-efficient integration into control panels.
What is the operating temperature range for this module?
The 140DDO35310C operates within a temperature range of -20°C to 60°C, making it suitable for a wide range of industrial environments.
Can I use multiple 140DDO35310C modules in the same system?
Yes, you can easily scale your system by adding multiple modules to expand the number of output channels as needed.
Is the 140DDO35310C compatible with Schneider Modicon PLCs?
Yes, this module is fully compatible with Schneider Electric’s Modicon PLCs, providing seamless integration and enhancing the flexibility of your automation system.
Are any additional accessories needed for installation?
No, the 140DDO35310C is designed for quick installation on DIN rails, and no additional accessories are required for basic setup.
