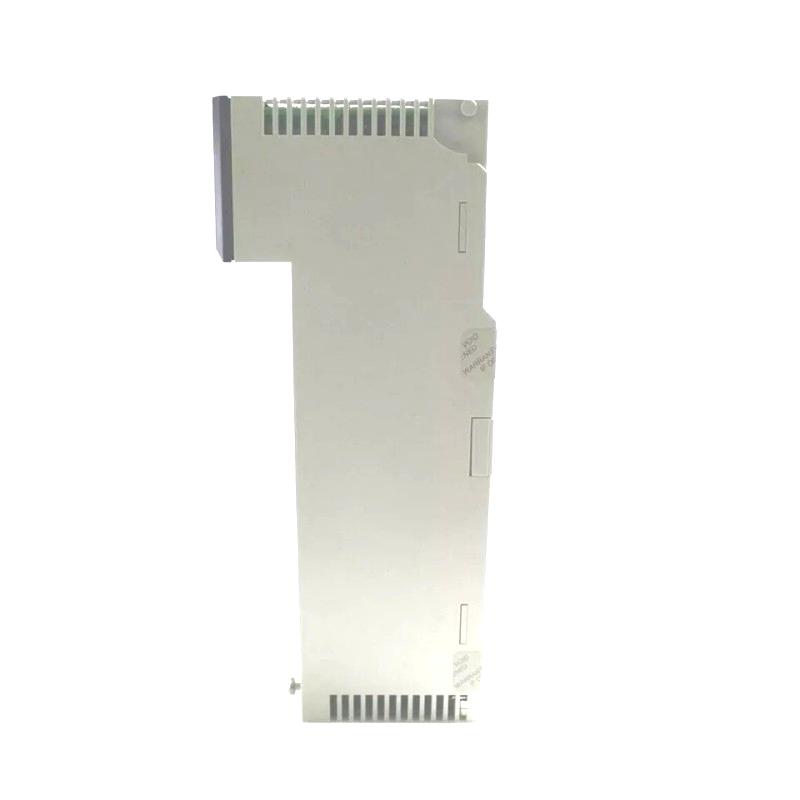

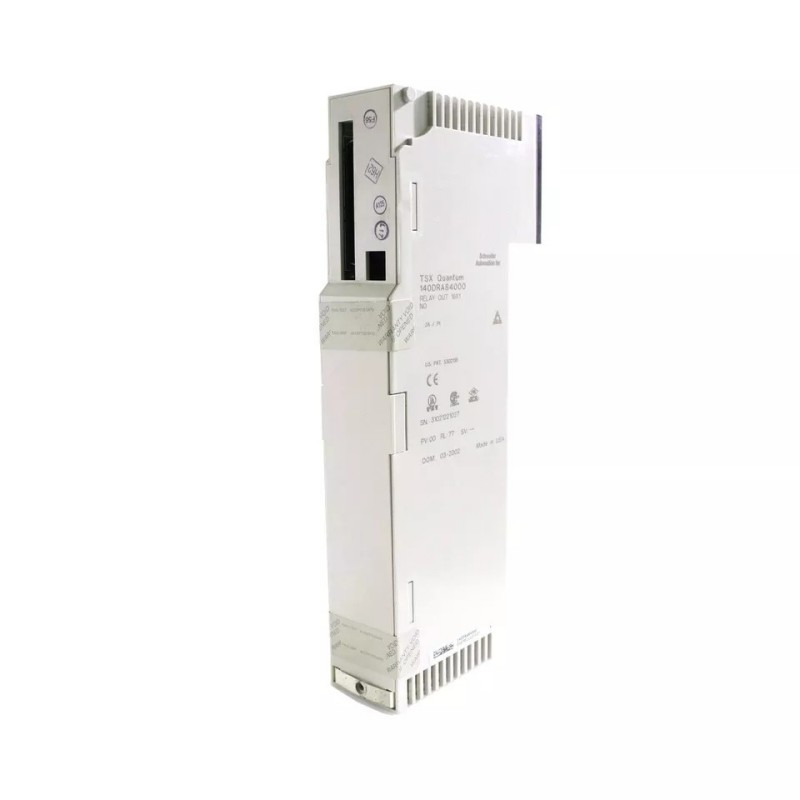

Schneider 140DRA84000 Relay Output Module – High-Performance, Reliable Control for Industrial Automation Systems

Applications

The 140DRA84000 Relay Output Module is ideal for applications where high-power switching is required for controlling various industrial devices. Its versatile relay outputs make it suitable for:

• Manufacturing Automation: Controls actuators, motors, and other machinery in production lines, assembly systems, and robotic systems.

• Process Control: Perfect for controlling high-power devices such as pumps, fans, and valves in process industries, including chemical, food, and beverage manufacturing.

• Material Handling: Ensures the operation of heavy-duty machinery such as conveyors, automated storage systems, and robotic arms in warehouses and distribution centers.

• Building Automation: Controls HVAC systems, lighting, and security equipment in commercial and industrial buildings, optimizing energy use and improving overall system performance.

• Packaging Systems: Reliable switching of equipment like filling stations, packaging machines, and conveyors in high-speed packaging lines.

Advantages

• High-Current Relay Outputs: The module offers outputs rated for 5 A (resistive load) per channel, allowing it to handle a wide range of industrial devices that require higher power.

• Galvanic Isolation: Provides electrical isolation between output channels and the control system, enhancing system reliability and protection against electrical surges.

• Compact Design: With dimensions of 90 mm x 140 mm x 90 mm, the 140DRA84000 offers high performance in a compact footprint, making it ideal for installations with limited space.

• Fast Switching Speed: The module features a typical response time of 10 ms, enabling rapid switching for real-time control of field devices.

• Wide Temperature Range: The 140DRA84000 operates efficiently in environments with temperatures ranging from -20°C to 60°C, making it suitable for a variety of industrial applications.

• Seamless Integration: Fully compatible with Schneider Electric’s Modicon PLC systems, the module provides easy inte

Technical FAQs

1. How many relay outputs does the 140DRA84000 provide?
   The 140DRA84000 module offers 8 relay outputs.

2. What is the rated current for each output channel?
   Each relay output channel can handle up to 5 A (resistive load).

3. What is the rated voltage for the relay outputs?
   The relay outputs are rated for 250V AC or 30V DC, allowing compatibility with a wide range of devices.

4. What is the response time of the module?
   The typical response time is 10 ms, providing fast switching capabilities.

5. Does the module offer electrical isolation?
   Yes, the 140DRA84000 provides galvanic isolation between the output channels and the control system, ensuring enhanced protection against electrical disturbances.

6. How is the 140DRA84000 mounted?
   The module is designed for easy DIN rail mounting, making installation quick and secure.

7. What is the operating temperature range for this module?
   The 140DRA84000 operates in temperatures ranging from -20°C to 60°C, making it suitable for a variety of industrial environments.

8. Can I use multiple 140DRA84000 modules in the same system?
   Yes, multiple modules can be used to increase the number of relay outputs, providing scalability for larger systems.

9. Is the 140DRA84000 compatible with Schneider Modicon PLCs?
   Yes, the module is fully compatible with Schneider Electric’s Modicon PLC systems, allowing easy integration into your existing automation infrastructure.

10. Are any additional accessories required for installation?
    No, the 140DRA84000 is designed for simple installation on DIN rails, with no additional accessories required for basic setup.
