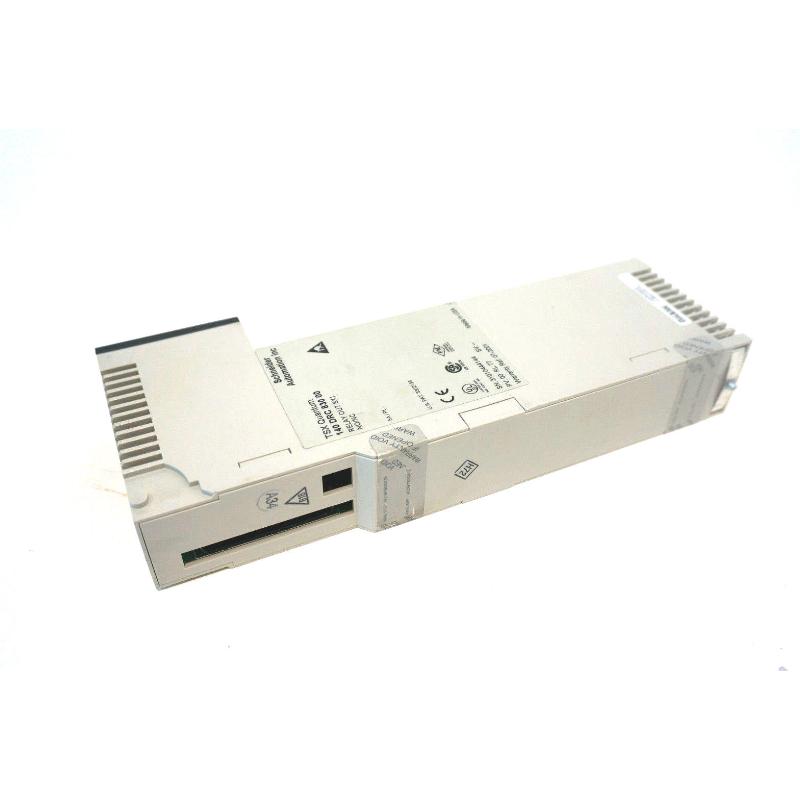

Schneider 140DRC83000 Relay Output Module – Versatile and High-Performance Control for Industrial Applications

Applications

The 140DRC83000 Relay Output Module is perfect for applications where switching of high-power devices is required, offering versatility and reliable control in various sectors, including:

• Manufacturing Automation: Controls motors, actuators, and other machinery in production lines, robotic systems, and automated machinery, ensuring smooth, uninterrupted operation.

• Process Control: Ideal for controlling pumps, fans, valves, and other devices in industries such as food processing, chemicals, and pharmaceuticals, ensuring precise operation and safety.

• Material Handling: Used for driving high-power output devices such as conveyors, sorting systems, and robotic arms in warehouses, logistics centers, and assembly lines.

• Building Automation: Controls HVAC systems, lighting, and security devices in commercial and industrial buildings, optimizing energy usage and system efficiency.

• Packaging Systems: Provides reliable switching for packaging machines, labeling systems, and automated packaging lines, ensuring continuous and efficient operation.

Advantages

• High Current Capacity: Each of the 8 relay outputs supports up to 5 A (resistive load), making it suitable for controlling powerful industrial devices such as motors, lights, and actuators.

• Galvanic Isolation: The 140DRC83000 module provides galvanic isolation between the output channels and the control system, protecting the system from electrical noise, surges, and other disturbances.

• Fast Response Time: With a typical response time of just 10 ms, the module enables rapid switching of output devices, ensuring high-speed control in time-sensitive industrial processes.

• Compact and Efficient Design: Despite its high current capacity, the 140DRC83000 is compact, with dimensions of 90 mm x 140 mm x 90 mm, making it ideal for installations with limited space.

• Wide Operating Temperature Range: The module is designed to operate in a wide temperature range from -20°C to 60°C, ensuring reliable performance in a variety of industrial environments.

• Seamless Integration: Fully compatible with Schneider Electric’s Modicon PLC systems, the 140DRC83000 integrates effortlessly into your existing automation setup, offering scalability and flexibility for future expansion.

Technical FAQs

1. How many relay outputs does the 140DRC83000 provide?
   The 140DRC83000 offers 8 relay outputs, each capable of switching high-power devices.

2. What is the rated current for each output channel?
   Each relay output channel can handle up to 5 A (resistive load).

3. What is the rated voltage for the relay outputs?
   The relay outputs are rated for 250V AC or 30V DC, allowing for versatile device control.

4. What is the typical response time of the module?
   The 140DRC83000 features a typical response time of 10 ms, enabling fast switching.

5. Does the module provide electrical isolation?
   Yes, it offers galvanic isolation between the output channels and the control system to protect the system from electrical interference.

6. How is the 140DRC83000 mounted?
   The module is designed for easy DIN rail mounting, simplifying installation in control panels.

7. What is the operating temperature range for this module?
   The 140DRC83000 operates within a temperature range of -20°C to 60°C, suitable for most industrial environments.

8. Can multiple 140DRC83000 modules be used together?
   Yes, you can scale your system by adding additional modules to meet your output control needs.

9. Is the 140DRC83000 compatible with Schneider Modicon PLCs?
   Yes, it integrates seamlessly with Schneider Electric’s Modicon PLC systems, providing a flexible and scalable solution.

10. Are any additional accessories needed for installation?
    No, the 140DRC83000 module is designed for simple installation with no additional accessories required beyond the DIN rail mounting.
