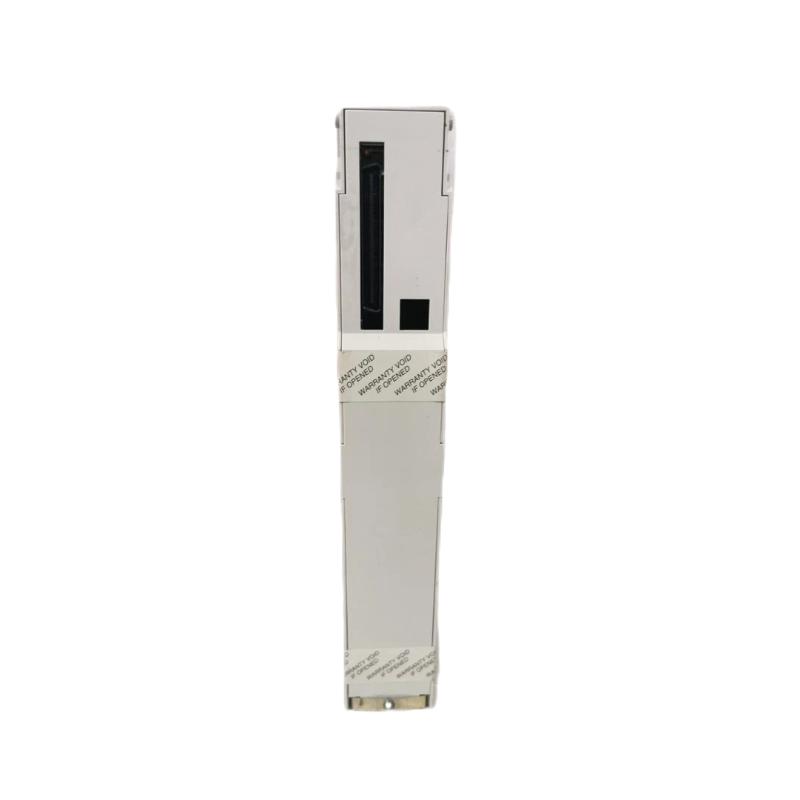

The Schneider Electric 140NOE77101 Ethernet Communication Module is a high-performance solution designed to enable seamless communication between Schneider Electric’s Modicon PLC systems and Ethernet-based industrial networks. This module offers robust Ethernet/IP and Modbus TCP/IP protocol support, ensuring fast and reliable data exchange across various devices and systems. Whether for real-time monitoring, control, or integration of remote devices, the 140NOE77101 provides a reliable and scalable solution for industrial applications that demand high-speed communication and network flexibility.

Technical Specifications

Model: 140NOE77101
Type: Ethernet Communication Module
Communication Protocols: Modbus TCP/IP, Ethernet/IP
Ethernet Ports: 1 x 10/100/1000 Mbps Ethernet Port
Operating Voltage: 24V DC
Power Consumption: 3.2 W (typical)
Mounting Type: DIN Rail Mount
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Dimensions: 90 mm x 140 mm x 90 mm
Weight: 0.45 kg
Status Indicators: LED indicators for power, network, and communication status

Recommended Related Models

Schneider 140CRA93100: Communication Processor for Modicon PLCs with enhanced networking features
Schneider 140EHC20200: Ethernet Communication Module with multiple Ethernet ports for complex network setups
Schneider 140DDM69000C: 64-Point Digital I/O Module for comprehensive control system expansion

Popular Schneider Models

Schneider 140CPU65150: High-performance CPU for Modicon M340 series PLCs
Schneider 140CRA93100: Communication Processor for expanding Modicon PLC communication capabilities
Schneider 140DDM69000C: 64-Point Digital I/O Module for large-scale I/O handling in industrial applications

Applications

The 140NOE77101 Ethernet Communication Module is suitable for a variety of industrial automation applications that require robust communication capabilities. Some common uses include:

Manufacturing Automation: Facilitates fast and reliable communication between PLCs, production lines, and robotic systems, ensuring synchronization and optimized control in manufacturing environments.
Process Control: Enables seamless communication for control of valves, pumps, and other process equipment in industries such as chemicals, food processing, and pharmaceuticals.
Building Automation: Integrates building management systems (BMS) with Ethernet/IP-enabled devices, allowing centralized control of HVAC, lighting, and security systems across commercial and industrial buildings.
Material Handling Systems: Supports communication between automated material handling systems, such as conveyors and robotic arms, ensuring smooth operation and minimizing system downtime in logistics and distribution centers.
Energy Management: Enables communication with energy meters and control devices, facilitating real-time monitoring and optimization of energy consumption in industrial settings.

Advantages

High-Speed Ethernet Communication: The 140NOE77101 supports 10/100/1000 Mbps Ethernet speeds, providing rapid and reliable data transfer across your network, ensuring fast response times for industrial applications.
Protocol Flexibility: With support for both Modbus TCP/IP and Ethernet/IP, the module is versatile and compatible with a wide range of industrial devices and systems, offering more flexibility in network integration.
Compact and Efficient Design: Despite offering advanced communication capabilities, the module is compact (90 mm x 140 mm x 90 mm), saving valuable space in control panels while ensuring reliable network connectivity.
Seamless Integration with Modicon PLCs: The module is fully compatible with Schneider Electric’s Modicon PLC systems, making it easy to integrate and scale your existing automation infrastructure.
Enhanced Reliability: Operating within a temperature range of -20°C to 60°C, the module delivers reliable performance even in challenging industrial environments, ensuring continuous operation in demanding conditions.
LED Status Indicators: The 140NOE77101 includes LED indicators for power, network, and communication status, enabling real-time feedback and simplifying monitoring and troubleshooting.

Technical FAQs

What communication protocols does the 140NOE77101 support?
The 140NOE77101 supports Modbus TCP/IP and Ethernet/IP protocols, allowing for flexible integration with various industrial devices and systems.
What is the Ethernet speed supported by this module?
The module supports Ethernet speeds of up to 1 Gbps (1000 Mbps), ensuring fast and reliable data transfer in real-time applications.
How many Ethernet ports does the 140NOE77101 have?
The 140NOE77101 is equipped with 1 Ethernet port, which supports 10/100/1000 Mbps speeds.
What is the operating voltage for the 140NOE77101?
The 140NOE77101 operates on a 24V DC supply, making it suitable for industrial environments.
What is the typical power consumption of the module?
The typical power consumption of the 140NOE77101 is 3.2 W, offering an energy-efficient solution for industrial communication networks.
How is the 140NOE77101 mounted?
This module is designed for DIN rail mounting, which simplifies installation and ensures a secure fit within control panels.
What is the operating temperature range for the 140NOE77101?
The module operates within a temperature range of -20°C to 60°C, making it suitable for most industrial environments.
Does the module feature status indicators?
Yes, the 140NOE77101 comes with LED indicators for power, network, and communication status, providing real-time monitoring of the system.
Can multiple 140NOE77101 modules be used in the same system?
Yes, you can use multiple modules to expand the network and enhance system scalability and reliability.
Is the 140NOE77101 compatible with Schneider Modicon PLCs?
Yes, the 140NOE77101 is fully compatible with Schneider Electric’s Modicon PLC systems, allowing easy integration into your existing control infrastructure.
