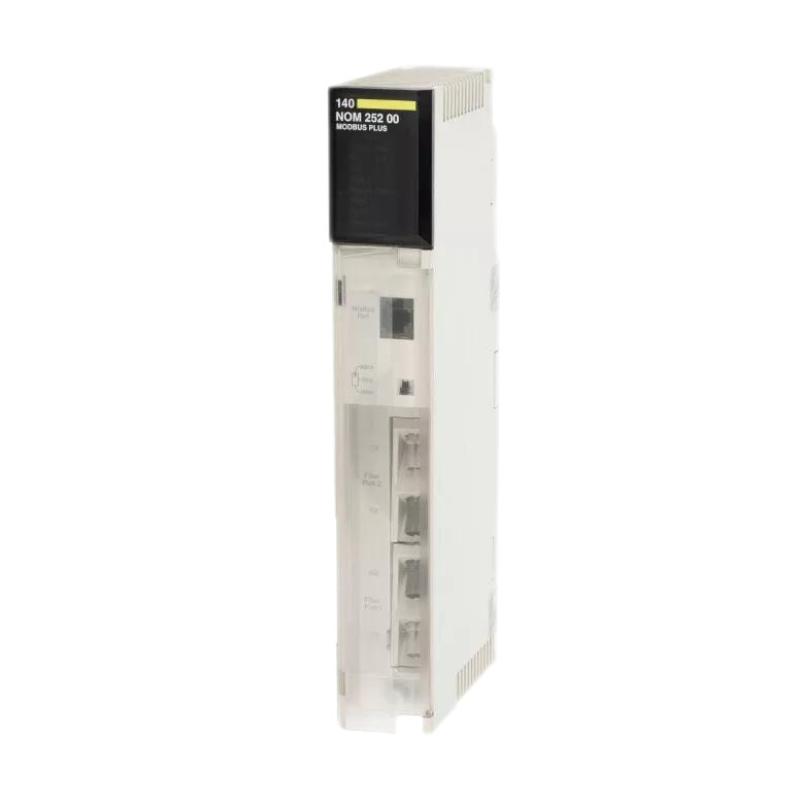

Schneider 140NOM25200 Modbus Communication Module – Advanced Communication for Industrial Control Systems

Applications

The 140NOM25200 Modbus Communication Module is designed for use in diverse industrial applications where robust communication is crucial. Some common applications include:

• Manufacturing Automation: Connects automated machines, PLCs, and sensors to ensure precise, synchronized control in production lines. Ideal for environments where speed and reliability are paramount.

• Process Control: Facilitates communication between PLCs and critical process equipment such as sensors, valves, and actuators in industries like chemical processing, pharmaceuticals, and food production.

• Building Automation: Integrates HVAC systems, lighting controls, security systems, and other building devices with Modbus-enabled components, enabling centralized monitoring and management.

• Material Handling Systems: Supports communication between automated material handling devices like conveyors, robotic arms, and sorting machines, improving operational efficiency in warehouses and distribution centers.

• Energy Management: Enables real-time monitoring of energy meters, power distribution systems, and other devices, allowing for the optimization of energy consumption across manufacturing and industrial facilities.

Advantages

• Dual Communication Protocols: The 140NOM25200 supports both Modbus RTU (RS-485) and Modbus TCP/IP communication protocols, offering flexibility to connect a wide range of industrial devices.

• High-Speed Ethernet Connectivity: With Ethernet speeds of up to 1 Gbps, the module supports fast, efficient data exchange over Modbus TCP/IP networks, crucial for real-time industrial control and monitoring.

• Compact and Efficient Design: The 140NOM25200 features a compact size (90 mm x 140 mm x 90 mm) and DIN rail mounting, saving valuable panel space while ensuring secure installation.

• Reliable Operation in Harsh Environments: With an operating temperature range of -20°C to 60°C, the module is built to withstand the challenging conditions often found in industrial environments.

• Easy Integration with Modicon PLCs: The 140NOM25200 integrates effortlessly with Schneider Electric’s Modicon PLC systems, making it simple to expand or retrofit existing systems with additional Modbus communication capabilities.

• Real-Time Monitoring and Diagnostics: LED status indicators for power, communication, and network activity allow for immediate system health checks and troubleshooting, reducing downtime.

Technical FAQs

1. What communication protocols does the 140NOM25200 support?
   The 140NOM25200 supports both Modbus RTU (RS-485) and Modbus TCP/IP protocols, ensuring compatibility with a wide range of industrial devices.

2. What is the Ethernet speed supported by this module?
   The 140NOM25200 supports Ethernet speeds up to 1 Gbps (1000 Mbps), ensuring high-speed data transfer for Modbus TCP communication.

3. How many ports are available for Modbus communication?
   The module provides 1 RS-485 port for Modbus RTU and 1 Ethernet port for Modbus TCP/IP communication.

4. What is the operating voltage for the 140NOM25200?
   The 140NOM25200 operates on a 24V DC supply, which is common for Schneider Electric’s industrial communication modules.

5. What is the typical power consumption of this module?
   The 140NOM25200 has a typical power consumption of 3.0 W, offering an energy-efficient solution for industrial communication.

6. How is the 140NOM25200 mounted?
   The module is designed for DIN rail mounting, which simplifies installation and provides secure mounting in control panels.

7. What is the operating temperature range for the 140NOM25200?
   The 140NOM25200 operates within a temperature range of -20°C to 60°C, making it suitable for most industrial environments.

8. Does the module have LED status indicators?
   Yes, the 140NOM25200 comes with LED indicators to display power, network, and communication status for real-time monitoring and troubleshooting.

9. Can I use multiple 140NOM25200 modules in a single network?
   Yes, multiple 140NOM25200 modules can be used to expand your network and provide additional communication points.

10. Is the 140NOM25200 compatible with Schneider Modicon PLCs?
    Yes, the 140NOM25200 is fully compatible with Schneider Electric’s Modicon PLC systems, providing seamless integration for communication and control in industrial applications.
