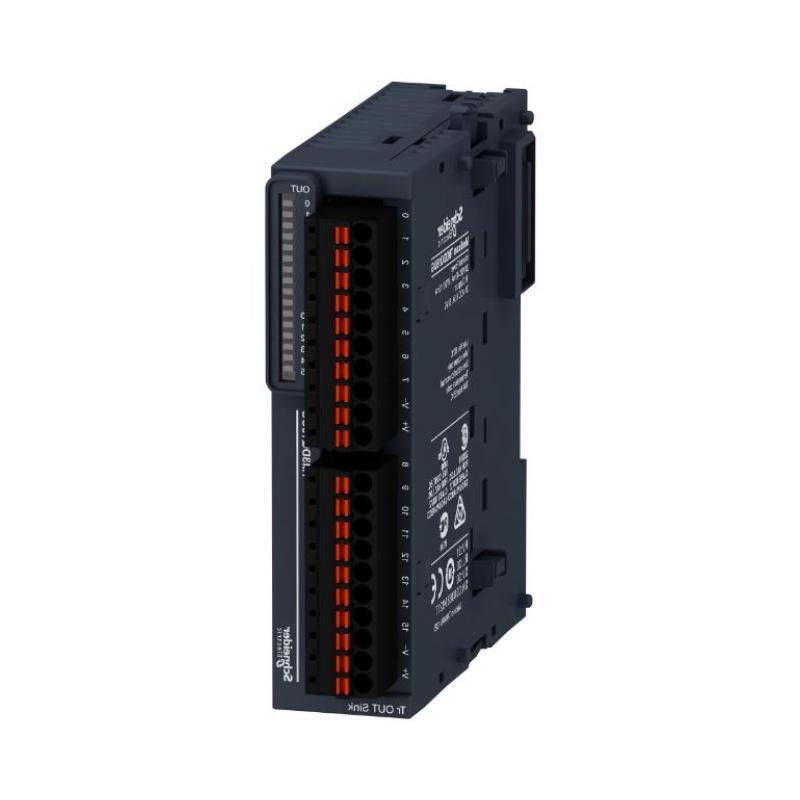

Schneider TM3DQ16UG Modicon TM3 Expansion Module

Application Areas

The Schneider TM3DQ16UG expansion module is designed to extend the capabilities of Modicon TM3 automation systems. With precise digital output functionality, it enhances system flexibility and supports complex industrial control tasks.

Typical applications include:

• Expanding discrete output capacity in TM3 modular systems

• Machine and process automation control

• Integration into compact industrial control panels

• Supervisory control and monitoring (SCADA)

• High-density I/O applications in manufacturing environments

Core Advantages

• Expanded Digital Output: Provides additional 16 discrete outputs for flexible control.

• Compact and Efficient Design: Dimensions of 90 × 81.3 × 21.4 mm allow space-saving installation.

• Durable Construction: Weighing 0.76 kg, designed for reliable industrial performance.

• Seamless TM3 Integration: Fully compatible with TM3 controllers and modules.

• Quick Installation: Modular design simplifies mounting and cabling in control panels.

Technical FAQs

1. What is the main purpose of the TM3DQ16UG module?
   It expands the digital output capability of Modicon TM3 systems.

2. How many discrete outputs does it provide?
   16 digital outputs.

3. What are the physical dimensions?
   90 × 81.3 × 21.4 mm.

4. How much does it weigh?
   0.76 kg.

5. Is it compatible with TM3 modular controllers?
   Yes, fully compatible.

6. Can it be used in compact control panels?
   Yes, its slim design allows easy integration.

7. Is it suitable for industrial automation applications?
   Yes, designed for reliable operation in manufacturing environments.

8. Does it support quick installation and removal?
   Yes, the modular TM3 design ensures efficient mounting.

9. Can it be combined with other TM3 modules?
   Yes, it integrates seamlessly with TM3 I/O and expansion modules.

10. Is technical documentation available?
    Yes, installation and wiring guides are included.
