Product Introduction

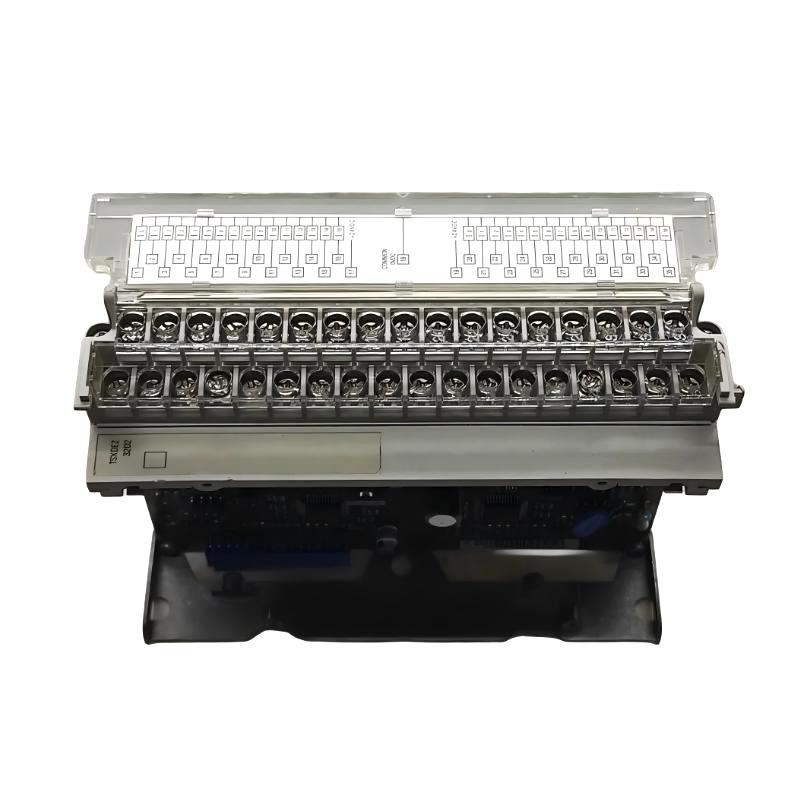

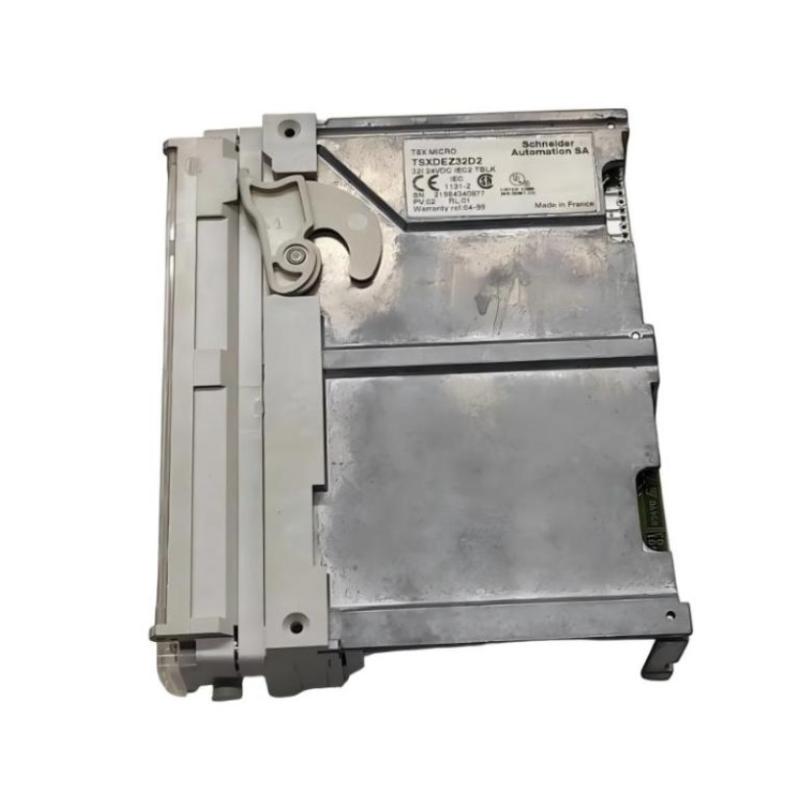

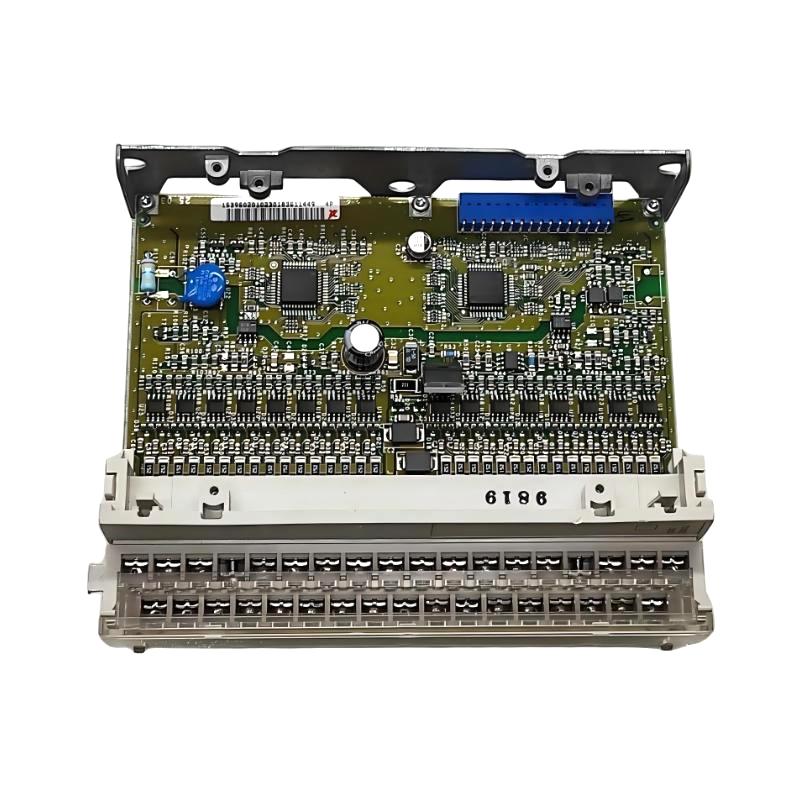

The Schneider TSXDEZ32D2 Discrete Input Module provides precise and reliable digital input functionality for TSX modular PLC systems. With package dimensions of 55 × 180 × 260 mm and a package weight of 0.54 kg, it is easy to install while offering dependable signal acquisition for industrial automation.

Engineered for durability and industrial performance, the TSXDEZ32D2 enhances machine supervision, process monitoring, and safety system integration, ensuring smooth and efficient operations in manufacturing environments.

Technical Specifications

Parameter	Specification
Model	TSXDEZ32D2
Type	Discrete Input Module
Package Dimensions (L×W×H)	55 × 180 × 260 mm
Package Weight	0.54 kg
I/O Type	Digital Inputs (Discrete)
Number of Inputs	32
Application	PLC Signal Acquisition & Automation
Mounting Style	Modular / DIN-rail Compatible
Operating Environment	Industrial
Compatibility	Schneider TSX Modular PLCs

Recommended Related Models

Schneider TSXDEY64D2K Discrete Input Module
Schneider TSXDEY32D2K Discrete Input Module
Schneider TSXCPU434 Modular PLC Controller

Popular Related Models

Schneider 140CPU43400 Processor Module
Schneider 140DDI35320 Digital Input Module
Schneider 140DDO35320 Digital Output Module

Application Areas

The Schneider TSXDEZ32D2 discrete input module is designed for reliable digital signal acquisition in modular PLC systems, offering precise monitoring of industrial processes. Its robust design and 32-channel capacity make it suitable for medium-density input applications where reliability is critical.

Typical uses include:

Collecting discrete signals from sensors and switches
Machine automation and production monitoring
Safety and interlock system integration
Modular TSX PLC system expansion
Industrial process monitoring and diagnostics

Core Advantages

32 Discrete Inputs: Efficiently captures multiple digital signals in compact systems.
Compact Form Factor: Package dimensions of 55 × 180 × 260 mm support tight panel installations.
Lightweight Yet Durable: Weighing 0.54 kg, the module is easy to handle and mount while designed for industrial reliability.
Seamless TMX Integration: Fully compatible with Schneider TSX modular PLCs.
Industrial-Grade Performance: Built to withstand challenging factory conditions.

Technical FAQs

What is the main function of the TSXDEZ32D2 module?
It provides 32 discrete digital inputs for PLC systems.
What are the package dimensions?
55 × 180 × 260 mm.
How much does the package weigh?
0.54 kg.
Is it compatible with TSX modular PLC systems?
Yes, fully compatible with Schneider TSX series controllers.
Can it be used in medium-density automation setups?
Yes, the 32-channel capacity is ideal for medium-density applications.
Does it support industrial process monitoring?
Yes, suitable for machine and factory process monitoring.
Is it suitable for safety or interlock applications?
Yes, precise input acquisition ensures reliable safety monitoring.
Can it be mounted in tight control cabinets?
Yes, compact dimensions allow flexible installation.
Is installation simple and modular?
Yes, designed for quick mounting and seamless integration.
Is technical documentation available?
Yes, detailed guides and wiring diagrams are included.
