Product Introduction

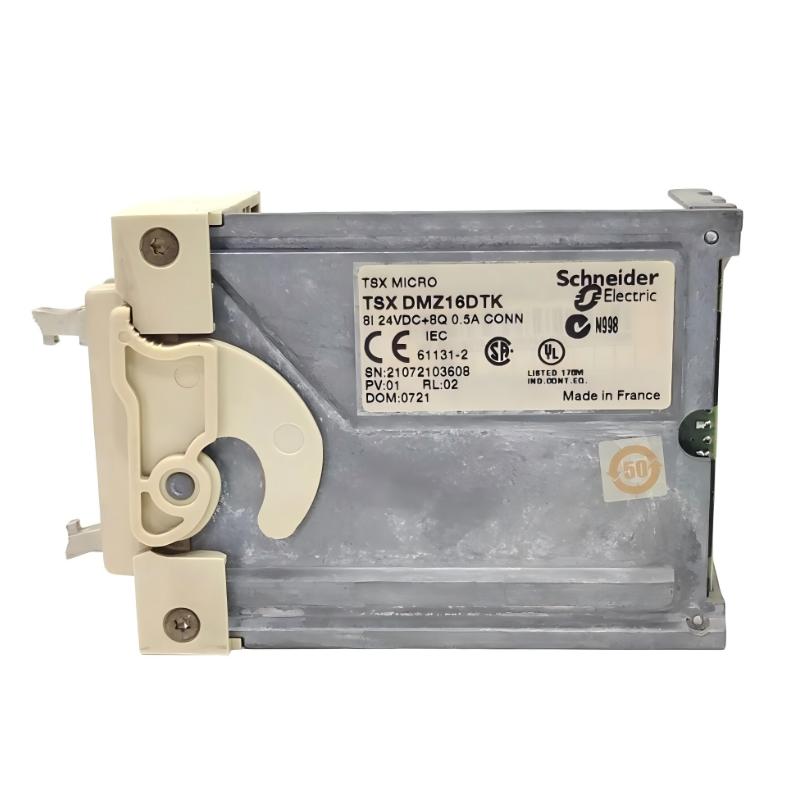

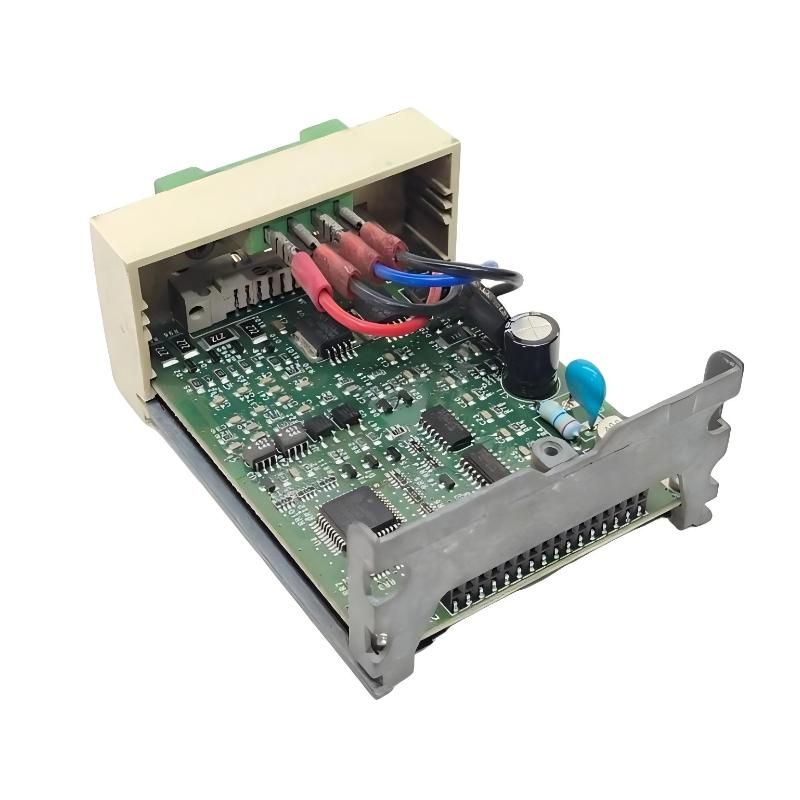

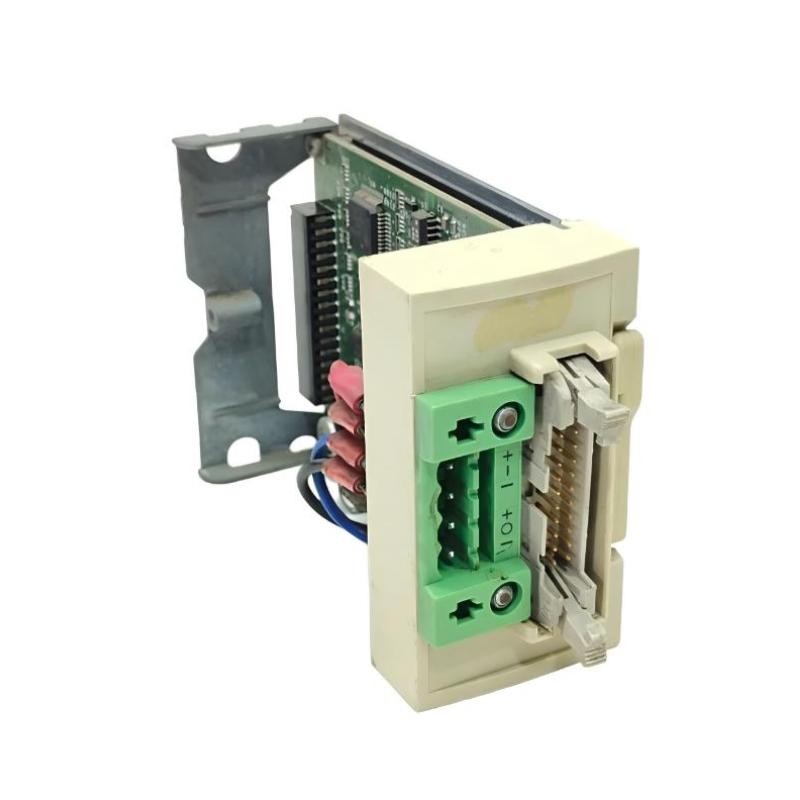

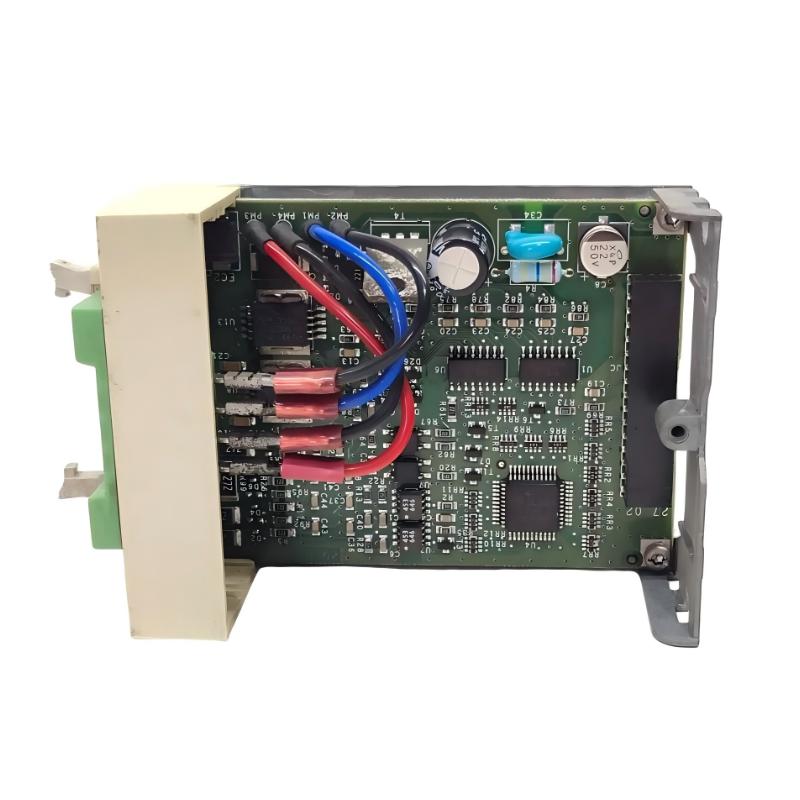

The Schneider TSXDMZ16DTK DC Logic Static I/O Base provides a reliable foundation for modular DC logic I/O modules, enhancing system flexibility and signal reliability.Engineered for industrial durability, the TSXDMZ16DTK ensures stable operation of discrete I/O modules, supports modular PLC expansion, and enables efficient automation and control in manufacturing environments.

Technical Specifications

Parameter	Specification
Model	TSXDMZ16DTK
Type	DC Logic Static I/O Base
Package Dimensions (L×W×H)	260 × 180 × 55 mm
Package Weight	0.16 kg
Application	DC Logic I/O Module Support
Mounting Style	Modular / DIN-rail Compatible
Operating Environment	Industrial
Compatibility	Schneider TSX Modular PLCs

Recommended Related Models

Schneider TSXDMZ32DTK DC Logic I/O Base
Schneider TSXDEY32D2K Discrete Input Module
Schneider TSXDMQ16DTK DC Logic Output Module

Popular Related Models

Schneider 140CPU43400 Processor Module
Schneider 140DDI35320 Digital Input Module
Schneider 140DDO35320 Digital Output Module

Application Scenarios

The Schneider TSXDMZ16DTK DC Logic Static I/O Base is designed for compact and reliable digital I/O applications within modular PLC systems. It provides a stable base for DC logic I/O modules, enabling efficient signal management and system expansion in industrial automation setups.

Typical applications include:

Supporting DC logic discrete input and output modules
Modular PLC system expansion
Machine automation and process control
Signal interface for sensors and actuators
Compact control panel installations

Key Advantages

Stable DC Logic Base: Provides secure mounting for I/O modules while maintaining signal integrity.
Compact and Lightweight: Package dimensions of 260 × 180 × 55 mm and weight of 0.16 kg allow easy installation.
Modular Design: Easily accommodates multiple DC I/O modules for flexible system expansion.
Industrial Reliability: Built for durable performance in factory and automation environments.
Seamless Integration: Compatible with Schneider TSX modular PLC systems for streamlined automation.

Technical FAQs

What is the main function of the TSXDMZ16DTK?
It serves as a DC logic base for discrete I/O modules in modular PLC systems.
What are the package dimensions?
260 × 180 × 55 mm.
How much does the package weigh?
0.16 kg.
Can it support multiple I/O modules?
Yes, it is designed for modular expansion with DC I/O modules.
Is it compatible with TSX modular PLCs?
Yes, fully compatible with Schneider TSX series controllers.
Can it be used in compact control panels?
Yes, the compact design allows flexible panel installation.
Is it suitable for industrial automation environments?
Yes, it is built for reliable operation in factory settings.
Does it support DC logic signal integrity?
Yes, the design ensures stable and precise I/O operation.
Is installation straightforward?
Yes, the modular base allows quick and secure mounting.
Is technical documentation available?
Yes, installation guides and wiring instructions are provided.
