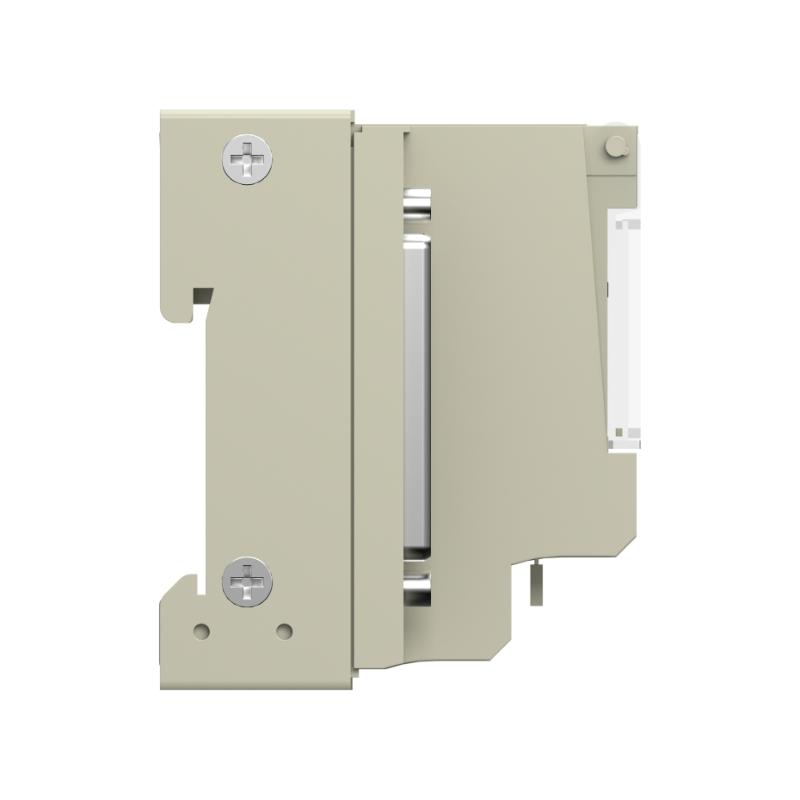

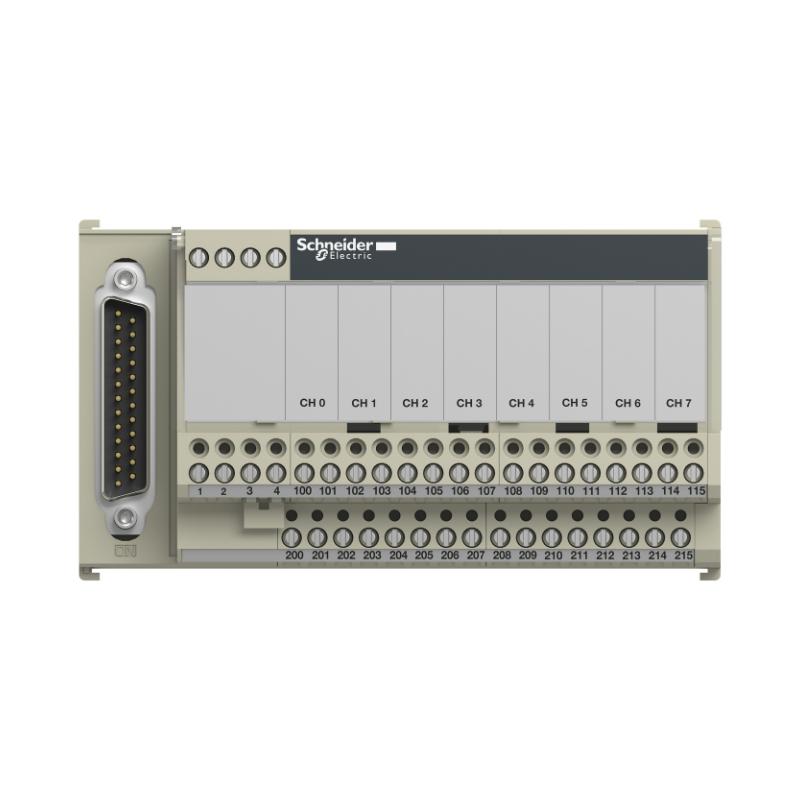

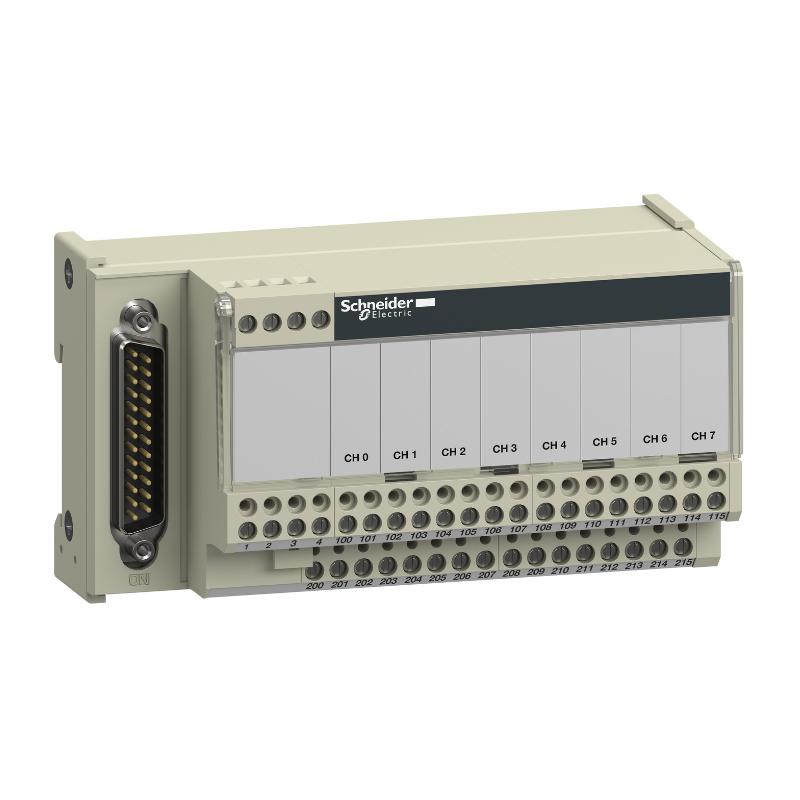

Schneider ABE7CPA03-1 Schneider ABE7CPA03-2 Schneider ABE7CPA03-3

The Schneider ABE7CPA03 Industrial Ethernet Communication Module is designed to meet the communication needs of modern industrial automation systems. It offers advanced features and high-performance connectivity to integrate various devices and components within Ethernet-based networks. With its support for multiple communication protocols and reliable, fast data transfer capabilities, the ABE7CPA03 ensures seamless communication between PLCs, HMIs, sensors, actuators, and other control devices.

The ABE7CPA03 module is ideal for industries that demand high-speed, fault-tolerant communication networks for both real-time monitoring and control, making it an essential component in enhancing system performance, flexibility, and scalability.

Technical Specifications

Model: ABE7CPA03
Type: Industrial Ethernet Communication Module
Dimensions: 140 mm x 120 mm x 60 mm
Weight: 0.6 kg (1.32 lbs)
Power Supply: 24 VDC ± 20%
Network Ports: 2 Ethernet ports (RJ45)
Communication Protocols: EtherNet/IP, Modbus TCP, PROFINET, and DNP3
Data Transfer Speed: 10/100/1000 Mbps (Gigabit Ethernet, auto-negotiation)
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Protection: IP20 ingress protection
Mounting Type: DIN rail mount
Certifications: CE, UL, and RoHS

Recommended Related Models

To enhance your automation network’s capabilities and expand your system functionality, consider these Schneider Electric models:

Schneider ABE7CPA02: Industrial Ethernet Communication Module for smaller-scale systems
Schneider ABE7CPS01: Power Supply Module for Ethernet devices
Schneider ABE7DIO08: Digital Input/Output Module for extended control
Schneider ABE7ANA04: Analog Input/Output Module for precise measurements

These models offer complementary features that integrate seamlessly with the ABE7CPA03, enhancing your industrial automation infrastructure.

Popular Schneider Electric Models

Schneider Modicon M340 – Programmable Logic Controller (PLC)
Schneider Modicon M580 – ePAC Controller
Schneider 171CCS70000 – Communication Module
Schneider 140CPS11400 – Power Supply for Modicon M340
Schneider 171BPS20000 – Power Supply for Automation Systems

These Schneider products are widely used in various industries for their robustness, scalability, and ease of integration with Schneider Electric's range of automation solutions.

Applications

The Schneider ABE7CPA03 Industrial Ethernet Communication Module is designed for demanding industrial applications where reliable, high-speed communication is essential. Some key applications include:

Industrial Automation: Facilitates communication between PLCs, sensors, actuators, and other industrial devices over an Ethernet network for seamless control.
Process Control: Supports real-time data transfer, ensuring smooth and precise control of manufacturing processes in industries such as chemicals, oil & gas, and food processing.
Energy Management: Integrates with energy monitoring and optimization systems to reduce costs and improve energy efficiency across facilities.
Building Automation: Connects building management systems (BMS) for controlling HVAC, lighting, and security systems, enabling efficient energy usage.
Factory Automation: Enables communication between machinery and automated systems, optimizing production lines and enhancing productivity.

Advantages

High-Speed Data Transfer: With Gigabit Ethernet support (10/100/1000 Mbps), the ABE7CPA03 ensures fast and reliable data exchange for real-time communication.
Support for Multiple Protocols: The module supports EtherNet/IP, Modbus TCP, PROFINET, and DNP3 protocols, offering broad compatibility for integration with different systems.
Scalability: The modular design makes it easy to scale your automation system as needed, allowing for future upgrades and expansions.
Easy Installation: Mounting the module on a DIN rail is quick and straightforward, simplifying setup and installation in various environments.
Robust Protection: The module offers IP20 protection, safeguarding it from dust and minor foreign objects, ensuring reliable performance in industrial environments.
Wide Operating Temperature Range: Designed to operate in temperatures from 0°C to 60°C (32°F to 140°F), the ABE7CPA03 can withstand harsh environmental conditions.

Technical FAQs

What communication protocols are supported by the ABE7CPA03?
The module supports EtherNet/IP, Modbus TCP, PROFINET, and DNP3 protocols.
What is the data transfer speed of the ABE7CPA03?
The module supports Gigabit Ethernet with data transfer speeds of 10/100/1000 Mbps (auto-negotiation).
How many Ethernet ports does the ABE7CPA03 have?
The ABE7CPA03 features two Ethernet ports (RJ45) for flexible network integration.
What is the power supply requirement for the ABE7CPA03?
The module operates on a 24 VDC power supply with a ±20% tolerance.
What are the dimensions of the ABE7CPA03?
The module measures 140 mm x 120 mm x 60 mm.
What is the operating temperature range of the ABE7CPA03?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F).
How is the ABE7CPA03 mounted?
It is designed for DIN rail mounting, ensuring easy installation and secure fitting in electrical panels.
Does the ABE7CPA03 offer protection against environmental factors?
Yes, it provides IP20 protection, making it resistant to dust and minor foreign objects.
What certifications does the ABE7CPA03 have?
The module is CE, UL, and RoHS certified, ensuring compliance with international safety and environmental standards.
Is the ABE7CPA03 compatible with other Schneider Electric products?
Yes, the module integrates seamlessly with other Schneider Electric PLCs, controllers, and I/O modules.
