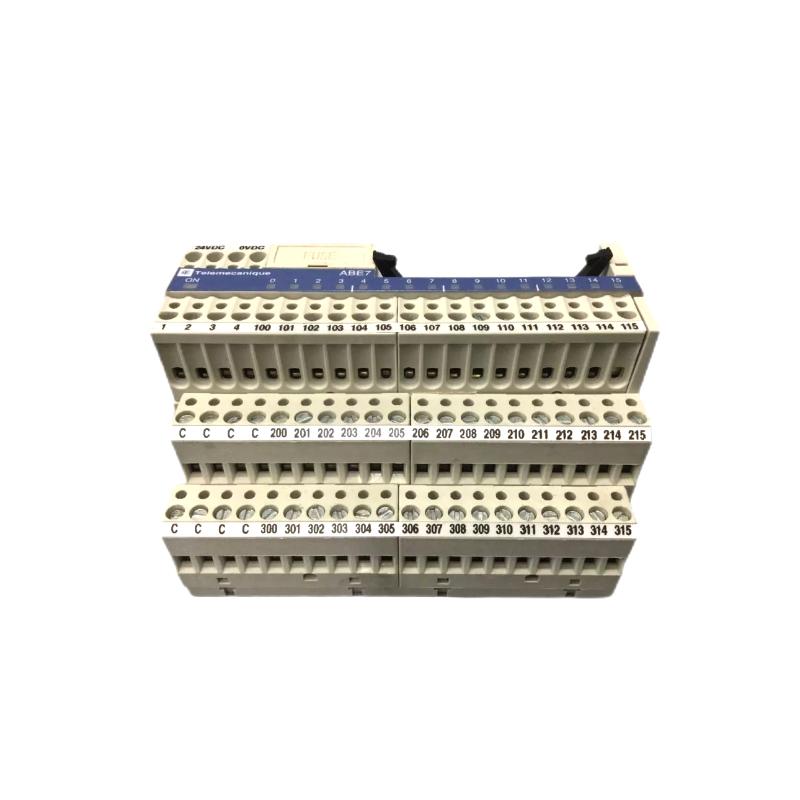

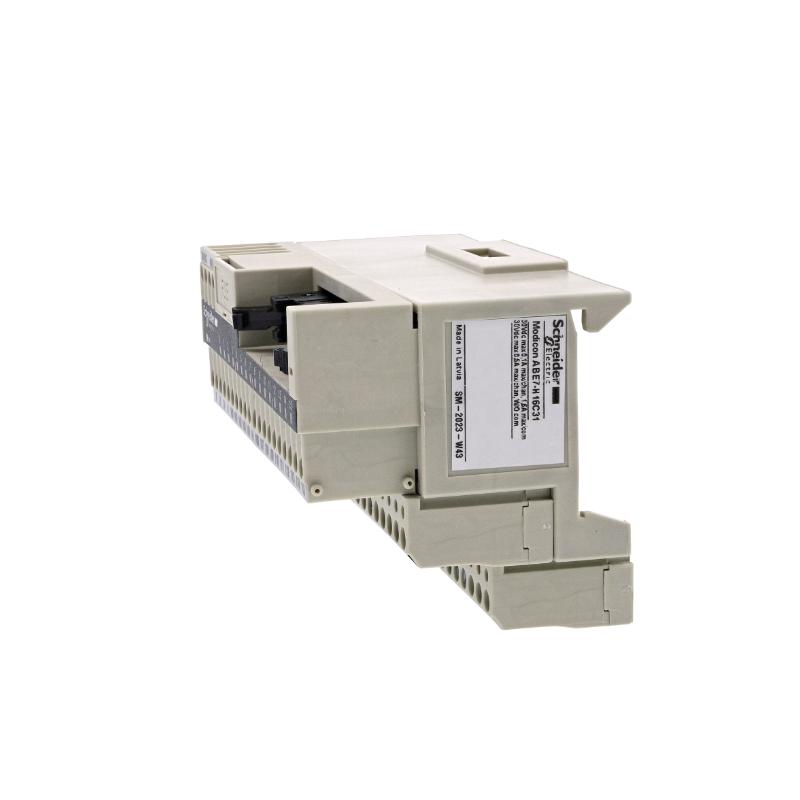

The Schneider ABE7H16C31 Industrial I/O Module is a versatile and high-performance solution designed to enhance industrial automation systems by providing a wide range of digital I/O capabilities. With 16 digital inputs and 16 digital outputs, the ABE7H16C31 is ideal for systems requiring a high density of I/O points while maintaining flexibility, reliability, and ease of integration. This module is engineered to support critical industrial applications where real-time data processing and seamless communication are essential.

The ABE7H16C31 is compatible with Schneider Electric's automation platforms, providing a scalable solution for both simple and complex industrial environments. Its robust design and advanced features ensure optimal performance across various industrial sectors, from manufacturing to energy management.

Technical Specifications

Model: ABE7H16C31
Type: Industrial I/O Module
Dimensions: 150 mm x 120 mm x 95 mm
Weight: 1.1 kg (2.43 lbs)
Power Supply: 24 VDC ± 20%
Inputs: 16 Digital Inputs (24 VDC)
Outputs: 16 Digital Outputs (Relay contacts, 24 VDC/AC)
Communication Protocol: Modbus RTU
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Protection: IP20 ingress protection
Mounting Type: DIN rail mount
Certifications: CE, UL, and RoHS

Recommended Related Models

To further expand and integrate your industrial automation system, consider these Schneider Electric models:

Schneider ABE7H08R21: 8-Point Digital I/O Module for compact systems
Schneider ABE7H16R22: 16-Point Digital I/O Module with additional input/output points
Schneider ABE7CPS01: Power Supply Module for industrial applications
Schneider ABE7ANA06: Analog Input/Output Module for enhanced measurement accuracy
Schneider ABE7DIO16: Digital Input/Output Module for higher I/O density and flexibility

These related modules are designed to provide additional functionality and seamless compatibility with the ABE7H16C31, allowing for efficient and scalable system designs.

Popular Schneider Electric Models

Schneider Modicon M340 – Programmable Logic Controller (PLC)
Schneider Modicon M580 – ePAC Controller
Schneider 171CCS70000 – Communication Module
Schneider 140DRA96000 – Digital I/O Module
Schneider 171BPS20000 – Power Supply for Automation Systems

These Schneider products are widely recognized in industries for their reliability, scalability, and integration with Schneider Electric’s I/O modules and automation solutions.

Applications

The Schneider ABE7H16C31 Industrial I/O Module is well-suited for a wide range of industrial applications that demand high-density I/O control. Some of its key applications include:

Industrial Automation: Collects and processes data from sensors and other automation devices, ensuring the smooth operation of production lines and machinery.
Process Control: Provides real-time control and monitoring in industries such as chemicals, pharmaceuticals, and food & beverage manufacturing.
Building Automation: Supports the control of HVAC systems, lighting, and security in buildings, enhancing energy efficiency and operational control.
Energy Management: Optimizes energy usage and monitors consumption across large-scale industrial facilities, helping to reduce energy costs and improve sustainability.
Factory Automation: Integrates with factory equipment and robots to ensure efficient production processes, reducing downtime and increasing throughput.

Advantages

High I/O Density: With 16 digital inputs and 16 relay outputs, the ABE7H16C31 offers a high-density I/O solution for applications requiring multiple control points in compact spaces.
Seamless Integration: The module supports Modbus RTU communication, making it easy to integrate with existing automation systems and devices.
Flexible Outputs: The relay outputs (24 VDC/AC) provide versatile control for a wide range of loads, offering flexibility in system design.
Compact and Durable Design: Designed for easy installation on DIN rails, the ABE7H16C31 is compact and robust, ensuring durability and space efficiency in industrial environments.
Wide Temperature Range: With an operating temperature range of 0°C to 60°C (32°F to 140°F), the module can be used in a variety of challenging environments.
IP20 Protection: Provides basic protection against dust and minor foreign objects, ensuring reliable operation in industrial settings.

Technical FAQs

What types of inputs and outputs does the ABE7H16C31 module support?
The module provides 16 digital inputs (24 VDC) and 16 relay outputs (24 VDC/AC).
What is the communication protocol of the ABE7H16C31?
The module uses Modbus RTU for communication, ensuring compatibility with a wide range of Schneider Electric devices and other automation systems.
What is the power supply requirement for the ABE7H16C31?
The module requires a 24 VDC power supply with a tolerance of ±20%.
What are the physical dimensions of the ABE7H16C31?
The module measures 150 mm x 120 mm x 95 mm in size.
What is the operating temperature range of the ABE7H16C31?
The module operates in temperatures from 0°C to 60°C (32°F to 140°F).
How is the ABE7H16C31 mounted?
The module is designed for easy installation on a DIN rail, streamlining the setup process in control panels.
What is the protection rating of the ABE7H16C31?
The module has an IP20 ingress protection rating, safeguarding it from dust and minor foreign objects.
What certifications does the ABE7H16C31 have?
The module is CE, UL, and RoHS certified, ensuring it meets international safety and environmental standards.
Is the ABE7H16C31 compatible with other Schneider Electric products?
Yes, the module integrates seamlessly with other Schneider Electric controllers, communication modules, and I/O devices.
What is the weight of the ABE7H16C31?
The module weighs 1.1 kg (2.43 lbs).
