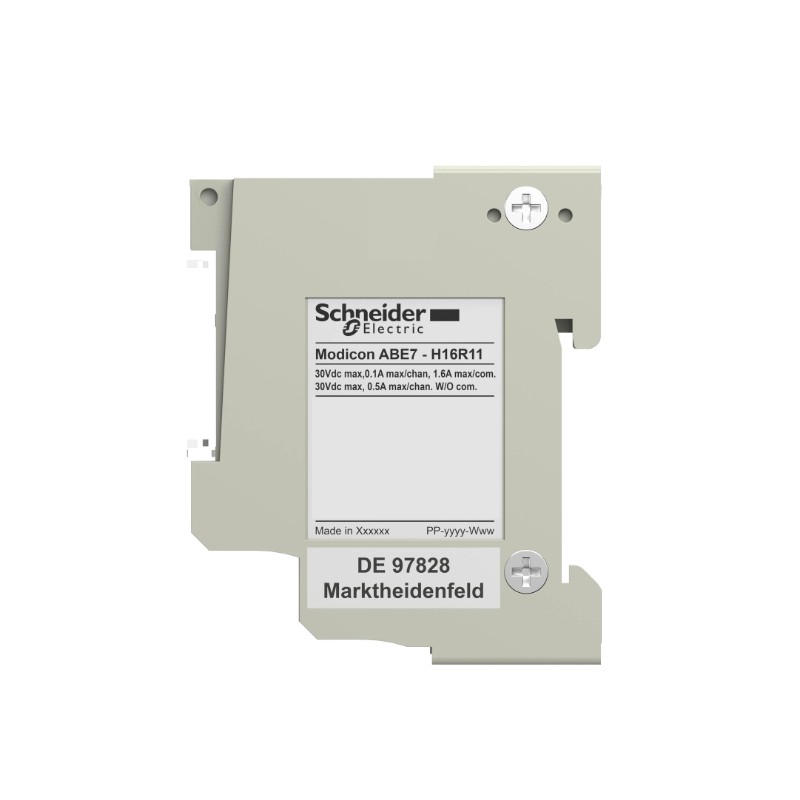

ABE7H16R11-4 ABE7H16R11-3 ABE7H16R11-2 ABE7H16R11-1 The Schneider ABE7H16R11 Industrial I/O Module is a highly efficient and scalable solution designed to provide comprehensive digital I/O capabilities for modern industrial automation systems. With 16 digital inputs and 16 digital relay outputs, the ABE7H16R11 is perfect for medium to large-scale automation applications where high-density I/O processing is needed. The module is built for seamless integration with Schneider Electric's PLCs and other industrial devices, ensuring a reliable, real-time communication network that drives optimal performance in demanding industrial environments.

Whether you're working with manufacturing, energy management, or process control systems, the ABE7H16R11 offers flexibility and reliability to improve operational efficiency and reduce downtime.

Technical Specifications

Model: ABE7H16R11
Type: Industrial I/O Module
Dimensions: 150 mm x 120 mm x 90 mm
Weight: 1.0 kg (2.2 lbs)
Power Supply: 24 VDC ± 20%
Inputs: 16 Digital Inputs (24 VDC)
Outputs: 16 Digital Outputs (Relay contacts, 24 VDC/AC)
Communication Protocol: Modbus RTU
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Protection: IP20 ingress protection
Mounting Type: DIN rail mount
Certifications: CE, UL, and RoHS

Recommended Related Models

For enhancing and expanding your system’s I/O capabilities, consider these Schneider Electric models:

Schneider ABE7H08R11: 8-Point Digital I/O Module for smaller systems or compact installations
Schneider ABE7H16R22: 16-Point Digital I/O Module with additional I/O functions
Schneider ABE7CPS01: Power Supply Module for industrial I/O systems
Schneider ABE7ANA04: Analog Input/Output Module for precise measurements
Schneider ABE7DIO16: 16-Point Digital Input/Output Module for larger-scale systems

These complementary models integrate seamlessly with the ABE7H16R11, providing a broader range of features and functionalities for your industrial automation needs.

Popular Schneider Electric Models

Schneider Modicon M340 – Programmable Logic Controller (PLC)
Schneider Modicon M580 – ePAC Controller
Schneider 171CCS70000 – Communication Module
Schneider 140DRA96000 – Digital I/O Module
Schneider 171BPS20000 – Power Supply for Automation Systems

These popular Schneider products offer comprehensive automation solutions and are ideal complements for the ABE7H16R11 module in a variety of industrial applications.

Applications

The Schneider ABE7H16R11 Industrial I/O Module is perfect for applications that require flexible, high-density I/O processing. Some key use cases include:

Industrial Automation: Integrates seamlessly with automation controllers to handle multiple input and output signals from sensors, actuators, and other devices.
Process Control: Ideal for industries like chemical, oil & gas, and food & beverage, where real-time data acquisition and processing are critical.
Building Automation: Efficiently manages building systems such as HVAC, lighting, and security to optimize energy use and maintain environmental comfort.
Energy Management: Enables real-time monitoring and control of energy consumption, helping businesses reduce costs and improve energy efficiency.
Factory Automation: Facilitates communication between factory equipment, PLCs, and robots, ensuring smooth production processes with minimal downtime.

Advantages

High I/O Density: With 16 digital inputs and 16 relay outputs, the ABE7H16R11 provides extensive I/O capacity in a compact design, making it suitable for larger systems and applications with higher input/output demands.
Reliable Communication: The module uses the Modbus RTU communication protocol, ensuring it can easily integrate with existing Schneider Electric PLCs, HMIs, and other automation devices.
Flexible Control: The 16 relay outputs (24 VDC/AC) offer flexibility for controlling a variety of devices, including actuators, relays, and alarms.
Compact and Durable: The module’s compact size allows for efficient use of space in control panels, while its robust design ensures longevity and reliable performance in industrial environments.
Wide Operating Temperature Range: The ABE7H16R11 operates in a temperature range of 0°C to 60°C (32°F to 140°F), making it versatile for use in a range of industrial settings.
IP20 Protection: The module is protected against dust and minor foreign objects, ensuring smooth operation even in moderately harsh industrial environments.

Technical FAQs

What types of inputs and outputs does the ABE7H16R11 module support?
The module features 16 digital inputs (24 VDC) and 16 relay outputs (24 VDC/AC).
What is the communication protocol of the ABE7H16R11?
The module communicates using the Modbus RTU protocol, a widely-used standard in industrial automation.
What power supply does the ABE7H16R11 require?
The module requires a 24 VDC power supply with a tolerance of ±20%.
What is the operating temperature range of the ABE7H16R11?
The module operates in temperatures ranging from 0°C to 60°C (32°F to 140°F).
How is the ABE7H16R11 mounted?
The module is designed for easy installation on a DIN rail, ensuring a secure and simple setup in industrial control panels.
What is the protection rating of the ABE7H16R11?
The module has an IP20 protection rating, which safeguards it from dust and minor foreign objects.
How many relay outputs does the ABE7H16R11 have?
The module is equipped with 16 relay outputs, ideal for controlling multiple devices.
What certifications does the ABE7H16R11 have?
The module is CE, UL, and RoHS certified, complying with international safety and environmental standards.
Is the ABE7H16R11 compatible with other Schneider Electric products?
Yes, it is fully compatible with other Schneider Electric PLCs, controllers, communication modules, and I/O devices.
What is the weight of the ABE7H16R11?
The module weighs 1.0 kg (2.2 lbs), making it lightweight for easy installation and handling.
