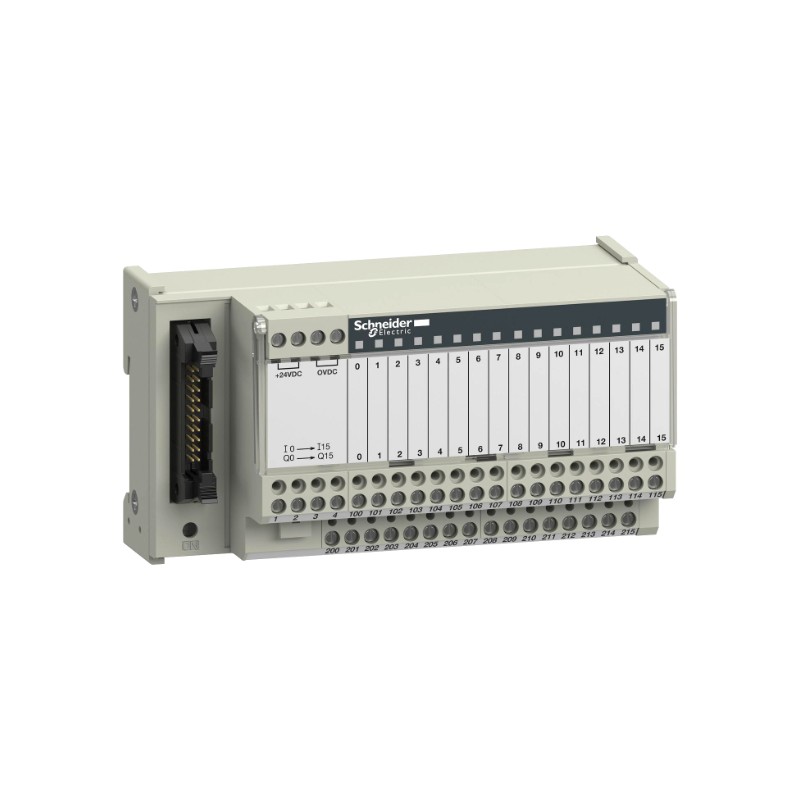

The Schneider ABE7H16R21 Industrial I/O Module is an advanced solution designed to meet the growing demands of modern industrial automation systems. Featuring 16 digital inputs and 16 digital relay outputs, this module offers high-density I/O capabilities, providing the flexibility needed for a broad range of industrial applications. Whether you're integrating the module into a manufacturing line, process control system, or energy management network, the ABE7H16R21 delivers reliable, real-time performance.

With its compact design and robust functionality, the ABE7H16R21 is ideal for expanding and optimizing your industrial automation system. The module is compatible with Schneider Electric’s PLCs and controllers, offering seamless integration into your existing infrastructure. It is engineered for ease of installation, maximum durability, and smooth operation in demanding environments.

Technical Specifications

Model: ABE7H16R21
Type: Industrial I/O Module
Dimensions: 150 mm x 120 mm x 95 mm
Weight: 1.1 kg (2.43 lbs)
Power Supply: 24 VDC ± 20%
Inputs: 16 Digital Inputs (24 VDC)
Outputs: 16 Digital Outputs (Relay contacts, 24 VDC/AC)
Communication Protocol: Modbus RTU
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Protection: IP20 ingress protection
Mounting Type: DIN rail mount
Certifications: CE, UL, and RoHS

Recommended Related Models

To further enhance your system’s capabilities, consider these Schneider Electric models:

Schneider ABE7H08R21: 8-Point Digital I/O Module for smaller or space-constrained systems
Schneider ABE7H16R22: 16-Point Digital I/O Module for additional I/O capacity
Schneider ABE7CPS01: Power Supply Module for I/O system stability
Schneider ABE7ANA06: Analog Input/Output Module for precise data acquisition
Schneider ABE7DIO16: High-density 16-Point Digital I/O Module for complex setups

These models complement the ABE7H16R21 and provide additional I/O functionalities and power options to meet specific industrial automation requirements.

Popular Schneider Electric Models

Schneider Modicon M340 – Programmable Logic Controller (PLC)
Schneider Modicon M580 – ePAC Controller for modern automation systems
Schneider 171CCS70000 – Communication Module for seamless data exchange
Schneider 140DRA96000 – Digital I/O Module for high-performance control
Schneider 171BPS20000 – Power Supply for Automation Systems

These Schneider Electric models are known for their durability and reliability, integrating effortlessly with the ABE7H16R21 for enhanced system performance.

Applications

The Schneider ABE7H16R21 Industrial I/O Module is perfect for a wide array of industrial applications that require high-density I/O control. Here are some of its key applications:

Industrial Automation: Ideal for collecting and processing signals from sensors, actuators, and control devices in manufacturing and assembly lines.
Process Control: Well-suited for chemical, food and beverage, and pharmaceutical industries, where precise control and data processing are critical.
Building Automation: Controls HVAC, lighting, security, and other building systems to optimize energy consumption and system performance.
Energy Management: Monitors and controls energy usage in large facilities, helping to reduce operational costs and improve sustainability.
Factory Automation: Manages robotic systems, automated machinery, and other factory equipment to improve production efficiency and minimize downtime.

Advantages

High I/O Density: The ABE7H16R21 offers 16 digital inputs and 16 relay outputs, providing a high-density solution that allows for easy integration into medium to large-scale automation systems.
Seamless Communication: Supporting Modbus RTU communication, this module ensures smooth and reliable integration with Schneider Electric PLCs and other industrial systems.
Flexible Output Control: The 16 relay outputs (24 VDC/AC) provide flexibility for controlling a wide variety of industrial devices and loads, such as motors, actuators, and alarms.
Compact and Robust Design: Designed for easy installation on DIN rails, the module’s compact size allows it to be integrated into tight spaces while maintaining a high level of performance.
Wide Temperature Range: The module operates in temperatures from 0°C to 60°C (32°F to 140°F), making it ideal for use in a variety of environments.
IP20 Protection: The module features an IP20 protection rating, ensuring reliability in moderate industrial environments by preventing the ingress of dust and foreign objects.

Technical FAQs

What types of inputs and outputs does the ABE7H16R21 module support?
The module has 16 digital inputs (24 VDC) and 16 relay outputs (24 VDC/AC).
What is the communication protocol of the ABE7H16R21?
The module uses Modbus RTU communication, ensuring compatibility with other Schneider Electric devices and systems.
What power supply is required for the ABE7H16R21?
The module requires a 24 VDC power supply, with a ±20% tolerance.
What is the operating temperature range of the ABE7H16R21?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F).
How is the ABE7H16R21 mounted?
The module is designed for easy DIN rail mounting, streamlining installation in control panels.
What is the protection rating of the ABE7H16R21?
The module is rated IP20, offering protection against dust and minor foreign objects.
How many relay outputs does the ABE7H16R21 have?
The module provides 16 relay outputs, offering flexible control for various industrial loads.
What certifications does the ABE7H16R21 have?
The module is CE, UL, and RoHS certified, meeting international standards for safety and environmental responsibility.
Is the ABE7H16R21 compatible with other Schneider Electric products?
Yes, the module integrates seamlessly with other Schneider Electric PLCs, I/O devices, and communication modules.
What is the weight of the ABE7H16R21?
The module weighs 1.1 kg (2.43 lbs).
