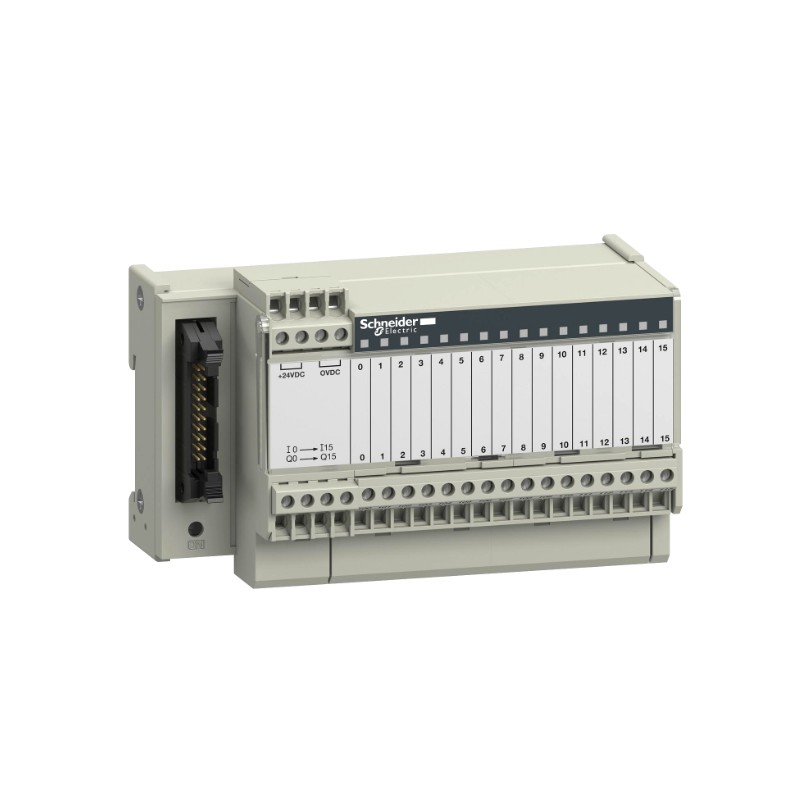

The Schneider ABE7R16S111 Industrial I/O Module is designed to provide high-density, flexible input/output (I/O) capabilities for modern industrial automation systems. This module, featuring 16 digital inputs and 16 digital relay outputs, is built to meet the demands of diverse industrial applications that require robust and reliable control and monitoring. With its compact design and integration capabilities, the ABE7R16S111 is an ideal solution for controlling and monitoring sensors, actuators, and other industrial devices in real-time.

The ABE7R16S111 module is fully compatible with Schneider Electric’s PLCs and other automation products, enabling seamless communication via Modbus RTU. Whether you’re managing a production line, a process control system, or an energy management application, this I/O module offers the performance and flexibility you need to ensure smooth operations and optimize system efficiency.

Technical Specifications

Model: ABE7R16S111
Type: Industrial I/O Module
Dimensions: 150 mm x 120 mm x 95 mm
Weight: 1.1 kg (2.43 lbs)
Power Supply: 24 VDC ± 20%
Inputs: 16 Digital Inputs (24 VDC)
Outputs: 16 Digital Outputs (Relay contacts, 24 VDC/AC)
Communication Protocol: Modbus RTU
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Protection: IP20 ingress protection
Mounting Type: DIN rail mount
Certifications: CE, UL, and RoHS

Recommended Related Models

If you're looking to further expand or customize your automation system, consider these Schneider Electric models:

Schneider ABE7H08R11: 8-Point Digital I/O Module for smaller automation setups
Schneider ABE7H16R22: 16-Point Digital I/O Module for higher I/O capacity
Schneider ABE7CPS01: Power Supply Module for stable operation of I/O modules
Schneider ABE7ANA06: Analog Input/Output Module for precision in measurement applications
Schneider ABE7DIO16: High-density Digital I/O Module for complex systems requiring additional control points

These modules offer complementary functionalities and can be integrated easily with the ABE7R16S111, creating a more flexible and powerful industrial automation system.

Popular Schneider Electric Models

Schneider Modicon M340 – Programmable Logic Controller (PLC) for industrial applications
Schneider Modicon M580 – ePAC Controller for high-end automation systems
Schneider 171CCS70000 – Communication Module for seamless data integration
Schneider 140DRA96000 – Digital I/O Module for digital control systems
Schneider 171BPS20000 – Power Supply Module for industrial automation

These Schneider products are well-suited to integrate with the ABE7R16S111, ensuring a robust and scalable automation solution.

Applications

The Schneider ABE7R16S111 Industrial I/O Module is suitable for a wide range of industrial applications that require high-density I/O control and reliable data processing. Some key applications include:

Industrial Automation: Collecting and processing signals from sensors, actuators, and other devices to automate control processes in manufacturing and assembly lines.
Process Control: Managing complex processes in industries like chemicals, pharmaceuticals, food & beverage, and oil & gas, where precise data acquisition and real-time control are critical.
Building Automation: Controlling systems such as HVAC, lighting, and security, optimizing energy use, and ensuring a comfortable indoor environment.
Energy Management: Monitoring and controlling energy consumption to reduce operational costs and improve sustainability in large facilities.
Factory Automation: Managing machines, robots, and automated production systems, enhancing productivity and minimizing downtime.

Advantages

High I/O Density: With 16 digital inputs and 16 relay outputs, the ABE7R16S111 provides high-density I/O control, making it ideal for applications requiring extensive input/output management.
Seamless Communication: The module uses Modbus RTU communication, allowing for smooth integration with Schneider Electric controllers, HMIs, and other devices.
Flexible Output Control: The 16 relay outputs (24 VDC/AC) provide flexible control for a wide range of devices, including motors, alarms, and actuators, offering versatility for different applications.
Compact Design: The ABE7R16S111 is designed to be compact, fitting easily into control panels and reducing the amount of space required for installation.
Durable and Reliable: With its IP20 protection rating and wide operating temperature range, the module is built to withstand demanding industrial environments, ensuring reliable operation.
Wide Compatibility: Fully compatible with Schneider Electric PLCs and other industrial automation equipment, the ABE7R16S111 integrates seamlessly into existing systems.

Technical FAQs

What types of inputs and outputs does the ABE7R16S111 module support?
The module has 16 digital inputs (24 VDC) and 16 relay outputs (24 VDC/AC).
What is the communication protocol used by the ABE7R16S111?
The module uses Modbus RTU communication, ensuring compatibility with Schneider Electric devices and third-party systems.
What is the power supply requirement for the ABE7R16S111?
The module requires a 24 VDC power supply with a ±20% tolerance.
What are the physical dimensions of the ABE7R16S111?
The module measures 150 mm x 120 mm x 95 mm.
What is the operating temperature range of the ABE7R16S111?
The module operates in temperatures ranging from 0°C to 60°C (32°F to 140°F).
How is the ABE7R16S111 mounted?
The module is designed for easy mounting on DIN rails, simplifying installation in control panels.
What is the protection rating of the ABE7R16S111?
The module has an IP20 protection rating, providing basic protection against dust and minor foreign objects.
What certifications does the ABE7R16S111 have?
The module is CE, UL, and RoHS certified, meeting international standards for safety and environmental compliance.
Is the ABE7R16S111 compatible with other Schneider Electric products?
Yes, the module integrates easily with Schneider Electric PLCs, communication devices, and I/O modules.
What is the weight of the ABE7R16S111?
The module weighs 1.1 kg (2.43 lbs).
