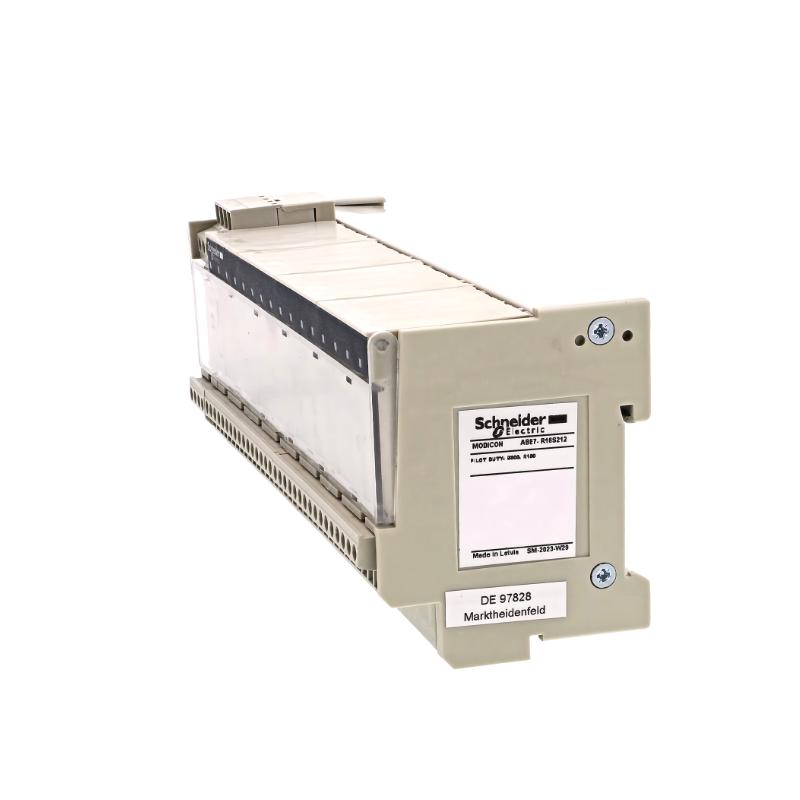

Schneider ABE7R16S212 Industrial I/O Module – Flexible and High-Density Solution for Industrial Automation

The Schneider ABE7R16S212 Industrial I/O Module is ideal for applications that demand high-density I/O control and precise monitoring. Some of the key applications include:

• Industrial Automation: Collecting and processing input signals from sensors, switches, and other control devices, and providing output control to actuators, motors, and alarms.

• Process Control: Ideal for industries like chemicals, pharmaceuticals, and food & beverage, where continuous and precise control of processes is crucial.

• Building Automation: Controls HVAC, lighting, security, and other systems, helping to optimize energy usage and enhance operational efficiency.

• Energy Management: Monitors energy consumption and controls electrical equipment, contributing to improved sustainability and reduced operational costs.

• Factory Automation: Enables automation of machinery, robotic systems, and other production equipment, increasing production efficiency and reducing downtime.

• High I/O Density: The ABE7R16S212 module offers 16 digital inputs and 16 relay outputs, providing compact yet extensive I/O capabilities in a small form factor.

• Reliable Communication: Using Modbus RTU, the module ensures smooth communication between devices, enabling fast and reliable data transfer within the system.

• Versatile Output Control: The 16 relay outputs (24 VDC/AC) allow you to control a wide range of industrial devices, including motors, solenoids, and alarms.

• Durable Design: With an IP20 protection rating, the module provides basic protection against dust and foreign objects, ensuring long-term reliability in moderate industrial environments.

• Wide Temperature Range: The module operates effectively across a broad temperature range from 0°C to 60°C (32°F to 140°F), making it suitable for a variety of industrial environments.

• Compact and Easy to Install: Designed for DIN rail mounting, the module fits easily into standard control panels, reducing installation time and space requirements.

1. What types of inputs and outputs does the ABE7R16S212 module support?
   The module supports 16 digital inputs (24 VDC) and 16 relay outputs (24 VDC/AC).

2. What is the communication protocol of the ABE7R16S212?
   The module uses Modbus RTU communication protocol, ensuring compatibility with Schneider Electric PLCs and other industrial devices.

3. What is the power supply requirement for the ABE7R16S212?
   The module requires a 24 VDC power supply with a ±20% tolerance.

4. What are the dimensions of the ABE7R16S212?
   The module measures 150 mm x 120 mm x 95 mm.

5. What is the operating temperature range of the ABE7R16S212?
   The module operates within a temperature range of 0°C to 60°C (32°F to 140°F).

6. How is the ABE7R16S212 mounted?
   The module is designed for DIN rail mounting, making installation easy and secure.

7. What is the protection rating of the ABE7R16S212?
   The module has an IP20 protection rating, offering protection against dust and minor foreign objects.

8. What certifications does the ABE7R16S212 have?
   The module is CE, UL, and RoHS certified, ensuring compliance with international safety and environmental standards.

9. Is the ABE7R16S212 compatible with other Schneider Electric products?
   Yes, the module integrates easily with Schneider Electric PLCs, I/O devices, and communication modules.

10. What is the weight of the ABE7R16S212?
    The module weighs 1.2 kg (2.65 lbs).
