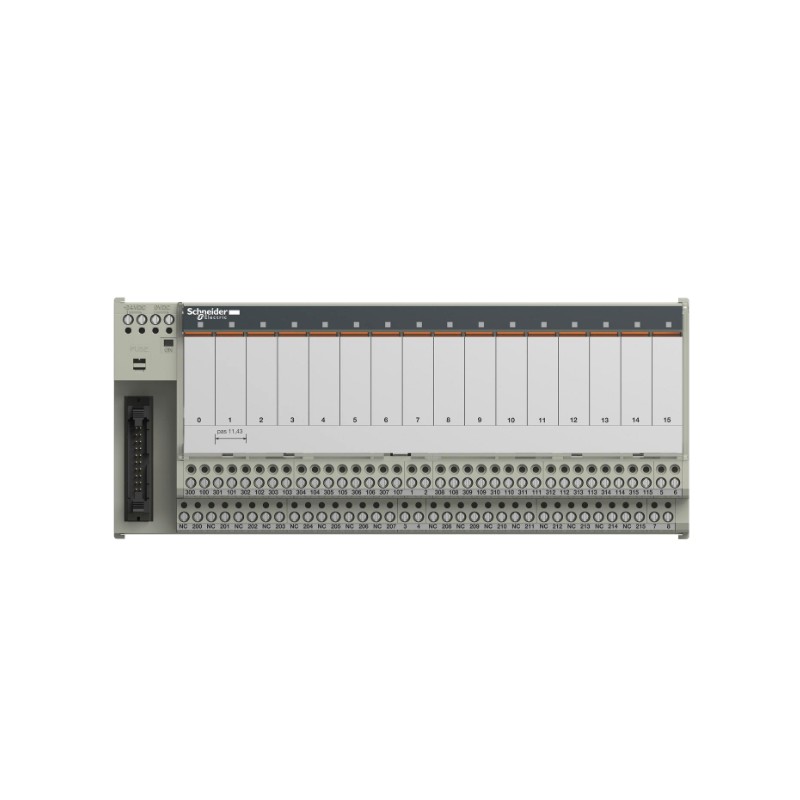

The Schneider ABE7R16T230 Industrial I/O Module is designed to provide flexible and reliable control in complex industrial automation systems. Equipped with 16 digital inputs and 16 relay outputs, this module allows for precise monitoring and control of a wide range of industrial devices such as sensors, actuators, motors, and alarms. It is well-suited for various industrial applications that require real-time data processing, efficient communication, and durable performance in challenging environments.

Featuring Modbus RTU communication protocol, the ABE7R16T230 ensures seamless integration with Schneider Electric’s PLCs and other automation equipment. Its high-density design allows for space optimization, making it perfect for applications where panel space is at a premium but performance cannot be compromised. Additionally, it operates reliably in harsh environments, thanks to its robust construction and wide operating temperature range.

Technical Specifications

Model: ABE7R16T230
Type: Industrial I/O Module
Dimensions: 150 mm x 120 mm x 95 mm
Weight: 1.2 kg (2.65 lbs)
Power Supply: 24 VDC ± 20%
Inputs: 16 Digital Inputs (24 VDC)
Outputs: 16 Digital Outputs (Relay contacts, 24 VDC/AC)
Communication Protocol: Modbus RTU
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Protection: IP20 ingress protection
Mounting Type: DIN rail mount
Certifications: CE, UL, and RoHS

Recommended Related Models

To enhance the functionality of your industrial automation system, consider these complementary Schneider Electric models:

Schneider ABE7H08R21: 8-Point Digital I/O Module for smaller or less complex systems
Schneider ABE7H16R22: 16-Point Digital I/O Module for higher-density I/O applications
Schneider ABE7CPS01: Power Supply Module for stable operation in demanding automation environments
Schneider ABE7ANA04: Analog Input/Output Module for advanced signal processing and control
Schneider ABE7DIO16: High-Density 16-Point Digital I/O Module for complex systems and enhanced automation

These Schneider models work seamlessly with the ABE7R16T230, offering expanded I/O, power management, and control solutions for comprehensive industrial systems.

Popular Schneider Electric Models

Schneider Modicon M340 – High-performance PLC for industrial applications
Schneider Modicon M580 – ePAC Controller for advanced distributed automation
Schneider 171CCS70000 – Communication Module for reliable, high-speed data transfer
Schneider 140DRA96000 – Digital I/O Module for precise and scalable automation
Schneider 171BPS20000 – Power Supply Module ensuring reliable I/O operations

These Schneider products integrate effortlessly with the ABE7R16T230, providing a comprehensive and efficient automation solution.

Applications

The Schneider ABE7R16T230 is ideal for applications requiring high-density digital I/O control and reliable communication. Key applications include:

Industrial Automation: Collecting and processing input signals from sensors, switches, and other devices, and providing output control to actuators, motors, and alarms.
Process Control: Used in industries like chemicals, pharmaceuticals, and food processing, where continuous and accurate control of processes is critical.
Building Automation: Controls HVAC systems, lighting, security, and other building infrastructure, improving energy efficiency and environmental comfort.
Energy Management: Monitors energy usage across systems, optimizing energy consumption and contributing to sustainability efforts.
Factory Automation: Facilitates the control of machinery, automated production lines, and robotics, improving operational efficiency and reducing downtime.

Advantages

High I/O Density: The ABE7R16T230 offers 16 digital inputs and 16 relay outputs in a compact form factor, optimizing space while providing extensive I/O capabilities for your automation systems.
Reliable Communication: The Modbus RTU protocol ensures fast and reliable communication between the module and other devices, enhancing data exchange and integration with existing automation systems.
Versatile Output Control: The 16 relay outputs (24 VDC/AC) allow for flexible control of industrial devices, including motors, valves, alarms, and other critical equipment.
Durable and Compact: With an IP20 protection rating, the module is designed to perform reliably in industrial environments, offering protection against dust and small foreign objects. Its compact design and DIN rail mount ensure easy installation in control panels.
Wide Temperature Range: The module operates effectively within a wide temperature range of 0°C to 60°C (32°F to 140°F), making it suitable for diverse industrial settings.
Easy Integration: Compatible with Schneider Electric PLCs and I/O systems, the ABE7R16T230 integrates effortlessly into your existing infrastructure, reducing setup time and cost.

Technical FAQs

What types of inputs and outputs does the ABE7R16T230 support?
The module offers 16 digital inputs (24 VDC) and 16 relay outputs (24 VDC/AC).
What is the communication protocol used by the ABE7R16T230?
The module uses Modbus RTU communication protocol for seamless integration with Schneider Electric PLCs and other devices.
What is the power supply requirement for the ABE7R16T230?
The module requires a 24 VDC power supply with a ±20% tolerance.
What are the dimensions of the ABE7R16T230?
The module measures 150 mm x 120 mm x 95 mm.
What is the operating temperature range of the ABE7R16T230?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F).
How is the ABE7R16T230 mounted?
The module is designed for DIN rail mounting, allowing for easy installation in control panels.
What is the protection rating of the ABE7R16T230?
It has an IP20 protection rating, providing basic protection against dust and small foreign objects.
What certifications does the ABE7R16T230 have?
The module is CE, UL, and RoHS certified, ensuring compliance with international safety and environmental standards.
Is the ABE7R16T230 compatible with other Schneider Electric products?
Yes, the module integrates seamlessly with Schneider Electric PLCs, I/O devices, and communication modules.
What is the weight of the ABE7R16T230?
The module weighs 1.2 kg (2.65 lbs).
