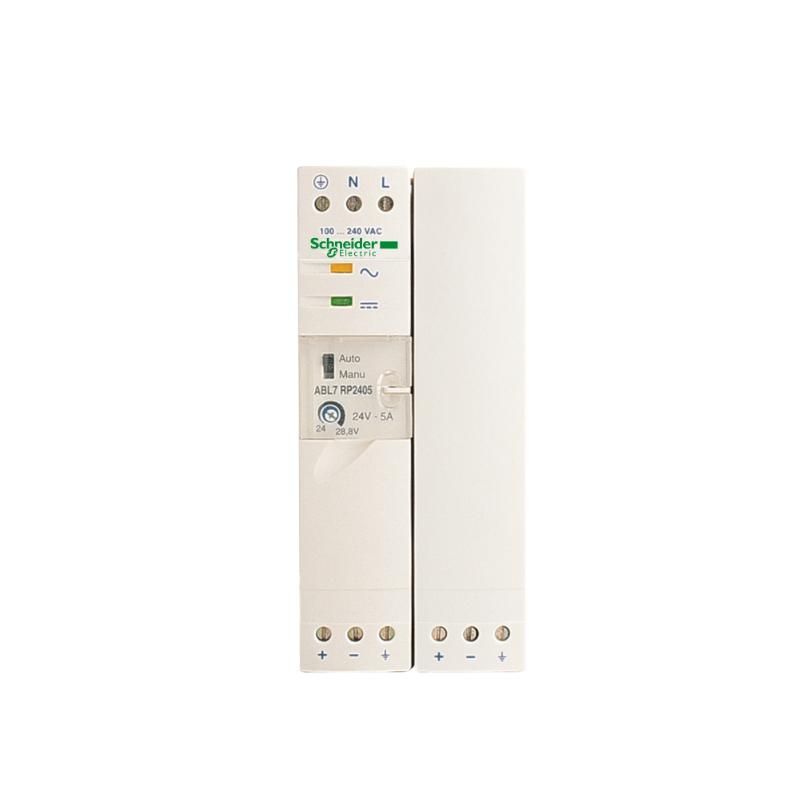

The Schneider ABL7RP2405 Power Supply Module is an advanced solution designed to deliver stable and reliable power to industrial automation systems. This 24 VDC power supply module provides continuous power to a range of Schneider Electric devices, including PLCs, I/O modules, and other automation components. Featuring high efficiency and a rugged design, the ABL7RP2405 ensures the smooth operation of control systems, reducing downtime and improving system reliability in industrial environments.

Designed for integration with Schneider Electric’s comprehensive automation offerings, this power supply module is ideal for use in applications that require a steady and efficient power source. Whether used in manufacturing, process control, or energy management systems, the ABL7RP2405 meets the highest standards of performance, safety, and energy efficiency.

Technical Specifications

Model: ABL7RP2405
Type: Power Supply Module
Input Voltage: 24 VDC (nominal)
Output Voltage: 24 VDC
Power Output: 5 A (maximum)
Dimensions: 120 mm x 125 mm x 70 mm
Weight: 1.1 kg (2.43 lbs)
Operating Temperature: -10°C to 60°C (14°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Protection: IP20 ingress protection
Mounting Type: DIN rail mount
Certifications: CE, UL, RoHS, and EN60950 compliant

Recommended Related Models

For expanded power supply options and integration with your industrial automation system, consider the following Schneider Electric models:

Schneider ABL7PS1202: 12 VDC Power Supply Module for systems requiring lower voltage control
Schneider ABL7RP2403: 24 VDC Power Supply Module with 3.5 A output, ideal for lower power needs
Schneider ABL7PB10: Distribution Box for managing power distribution across multiple devices
Schneider ABL7RB40: Redundant Power Supply Module for systems requiring high availability and continuous power

These models complement the ABL7RP2405 and offer a variety of power management and backup solutions for scalable automation systems.

Popular Schneider Electric Models

Schneider Modicon M340 – A high-performance PLC for complex industrial applications
Schneider Modicon M580 – ePAC controller for advanced distributed automation
Schneider 171CCS70000 – Communication Module for reliable data exchange
Schneider 140DRA96000 – Digital I/O Module for controlling industrial devices
Schneider 171BPS20000 – Power Supply Module designed for reliable I/O operations

These Schneider models integrate seamlessly with the ABL7RP2405, creating a complete solution for industrial control, monitoring, and automation.

Applications

The Schneider ABL7RP2405 Power Supply Module is ideal for a range of industrial applications that demand reliable and continuous power:

Industrial Automation: Powers PLCs, I/O modules, and other control components, ensuring uninterrupted operation of automation systems.
Process Control: Provides stable power to sensors, actuators, and other control devices, maintaining smooth and precise process control in industries like chemicals, food & beverage, and pharmaceuticals.
Energy Management: Supports energy monitoring systems, helping companies optimize energy usage and reduce operational costs.
Factory Automation: Ensures continuous power to factory equipment and production lines, improving efficiency and minimizing downtime.
Building Automation: Powers HVAC, lighting, and security systems in commercial and industrial buildings, enhancing energy efficiency and system reliability.

Advantages

Reliable Power Supply: The ABL7RP2405 provides stable 24 VDC output with a 5 A capacity, ensuring continuous power for critical control systems and industrial devices.
Energy Efficient: Designed for high efficiency, the ABL7RP2405 minimizes power loss, helping reduce energy consumption and improve system sustainability.
Rugged and Durable: With an IP20 protection rating, this module is built to withstand dust and other industrial environmental factors, ensuring long-lasting performance.
Wide Temperature Range: The ABL7RP2405 operates in temperatures ranging from -10°C to 60°C (14°F to 140°F), making it suitable for diverse industrial settings.
Easy Integration: The module integrates effortlessly with Schneider Electric PLCs and I/O systems, simplifying system design and reducing installation time.
DIN Rail Mounting: The ABL7RP2405 is designed for easy DIN rail mounting, making installation quick and secure in control panels.

Technical FAQs

What is the power output of the ABL7RP2405?
The ABL7RP2405 provides a maximum output of 5 A at 24 VDC.
What is the operating temperature range for the ABL7RP2405?
The module operates within a temperature range of -10°C to 60°C (14°F to 140°F).
What certifications does the ABL7RP2405 have?
The module is CE, UL, RoHS, and EN60950 compliant, ensuring it meets international standards for safety and environmental impact.
How is the ABL7RP2405 mounted?
The module is designed for DIN rail mounting, allowing for easy and secure installation in control panels.
What input voltage does the ABL7RP2405 require?
The module requires a nominal 24 VDC input voltage.
What protection rating does the ABL7RP2405 have?
The ABL7RP2405 has an IP20 protection rating, providing protection against dust and small foreign objects.
Can the ABL7RP2405 be used in outdoor applications?
The module is designed for indoor use with an IP20 rating, making it unsuitable for exposure to harsh outdoor environments.
Can the ABL7RP2405 be used for redundant power supply configurations?
Yes, Schneider Electric offers additional redundant power supply modules (such as the ABL7RB40) for systems requiring high availability and continuous power.
What is the weight of the ABL7RP2405?
The module weighs 1.1 kg (2.43 lbs).
What is the output voltage of the ABL7RP2405?
The ABL7RP2405 provides a stable 24 VDC output to power industrial automation systems.
