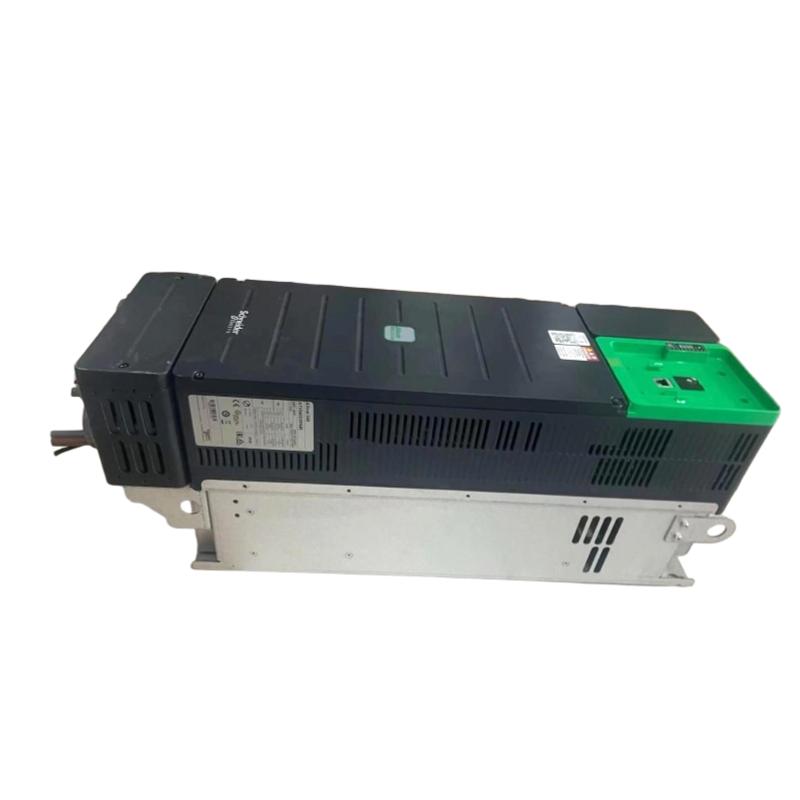

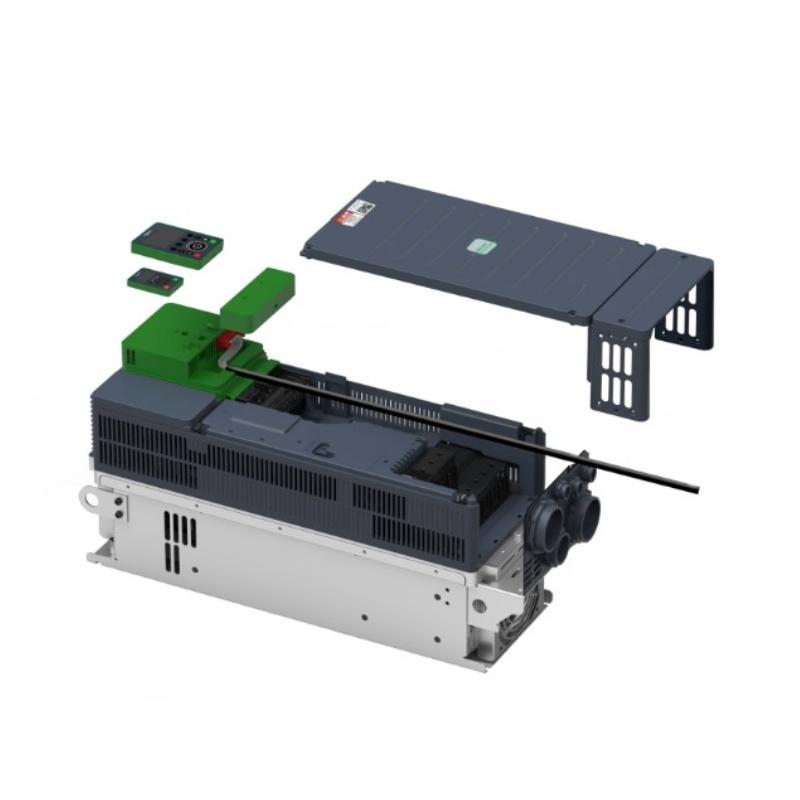

The Schneider ATV340D30N4E is a high-performance Variable Frequency Drive (VFD) designed for demanding industrial motor control applications. With a rated output power of 30 kW, this drive offers precise and energy-efficient control for motors in a wide range of industries, including material handling, HVAC, pumps, and conveyors. Built to handle high-performance tasks with ease, the ATV340D30N4E ensures smoother operations, lower energy consumption, and extended equipment lifespan.

Part of Schneider Electric's ATV340 series, the ATV340D30N4E is designed with advanced control features such as Sensorless Vector Control (SVC), V/f control, and an easy-to-use interface, making it suitable for both basic and complex applications. It provides seamless integration into industrial systems and can be customized to fit the specific needs of various motor-driven applications.

Technical Specifications

Model: ATV340D30N4E
Type: Variable Frequency Drive (VFD)
Power Supply: 3-phase, 380-480 VAC ±10%, 50/60 Hz
Rated Output Power: 30 kW
Rated Output Current: 60 A
Input Current: 42 A
Dimensions: 315 mm x 280 mm x 315 mm
Weight: 17.5 kg (38.5 lbs)
Control Mode: V/f control, Sensorless Vector Control (SVC)
Cooling Method: Forced air cooling with internal fan
Protection: IP20 ingress protection
Mounting Type: Wall-mounted, panel installation
Environmental Conditions:
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 0–95% RH (non-condensing)
Certifications: CE, UL, RoHS, and CSA compliant

Recommended Related Models

To expand your motor control capabilities, Schneider Electric offers several models that complement the ATV340D30N4E:

Schneider ATV340D45N4E: A 45 kW VFD with enhanced features for larger applications requiring higher power output.
Schneider ATV320U75N4C: A 75 kW VFD ideal for applications where higher torque and speed control are needed.
Schneider ATV600: A high-power VFD for larger industrial machinery with more complex motor control requirements.
Schneider ABE7CPA02: An auxiliary control device to enhance and complement Schneider Electric’s motor control systems in various industrial processes.
Schneider ABL8REM24050: A power supply module designed for efficient operation alongside VFDs and motor control systems.

These models provide flexibility in scaling your motor control applications and can be integrated seamlessly with the ATV340D30N4E for optimal performance.

Popular Schneider Electric Models

Schneider Modicon M340 – A high-performance PLC for advanced industrial automation.
Schneider ATV12 – A compact and cost-effective drive for controlling small motors.
Schneider ATV320 – A versatile VFD with a range of power options, ideal for medium-sized applications.
Schneider ATV630 – A premium VFD for high-power motor control systems in demanding industrial environments.
Schneider Altivar 32 – A compact drive for smaller applications that require efficient motor control.

These Schneider products can be easily integrated with the ATV340D30N4E, offering a complete and efficient motor control solution for various industrial applications.

Applications

The Schneider ATV340D30N4E VFD is suitable for a wide variety of motor control applications across different industries:

Pumps: Efficiently controls the operation of pumps in water treatment, HVAC, and industrial fluid management systems, improving energy efficiency and performance.
Fans and Compressors: Ideal for controlling fans and compressors in air conditioning systems, refrigeration, and ventilation, enhancing system efficiency.
Material Handling: Provides precise motor control for conveyors and other material handling equipment, ensuring smooth, uninterrupted operations.
HVAC: Regulates motor speeds for heating, ventilation, and air conditioning systems, reducing energy consumption and improving environmental control.
Manufacturing: Suitable for controlling motors in production lines, enhancing precision, and minimizing downtime in manufacturing processes.
Mining and Minerals: Powers high-torque applications in mining equipment, ensuring reliability and performance in challenging environments.

Advantages

High Power Output: The ATV340D30N4E delivers 30 kW of power, providing reliable motor control for large industrial systems.
Energy Efficiency: By adjusting motor speed to match the load, the drive reduces energy consumption and operational costs, making it an ideal solution for energy-conscious industries.
Advanced Control Features: With V/f control and Sensorless Vector Control (SVC), the ATV340D30N4E delivers precise speed and torque regulation, ensuring smooth and efficient motor operation.
Compact and Robust: Despite its high power output, the ATV340D30N4E features a compact design, allowing it to fit into control panels or be mounted on walls, while providing durability with IP20 ingress protection.
Easy Integration: The ATV340D30N4E integrates seamlessly with other Schneider Electric automation products, such as PLCs, offering a comprehensive and scalable motor control solution.
Enhanced Durability: The forced air cooling system and robust design ensure the drive operates reliably in harsh industrial environments.
User-Friendly Interface: The intuitive user interface simplifies setup, adjustments, and monitoring, reducing the learning curve for operators and technicians.

Technical FAQs

What is the rated output power of the ATV340D30N4E?
The ATV340D30N4E provides a rated output power of 30 kW.
What is the input voltage range for the ATV340D30N4E?
The VFD operates with a 3-phase input voltage of 380–480 VAC ±10%.
What motor control modes does the ATV340D30N4E support?
The drive supports V/f control and Sensorless Vector Control (SVC) for efficient and precise motor control.
What is the operating temperature range of the ATV340D30N4E?
The drive operates within an ambient temperature range of -10°C to 50°C (14°F to 122°F).
What is the weight of the ATV340D30N4E?
The ATV340D30N4E weighs 17.5 kg (38.5 lbs).
Can the ATV340D30N4E be used in outdoor applications?
No, the drive is designed for indoor use with an IP20 protection rating, which protects it from dust and small foreign objects.
What cooling method is used by the ATV340D30N4E?
The drive uses forced air cooling with an internal fan, ensuring it maintains optimal operating temperature under demanding conditions.
What certifications does the ATV340D30N4E have?
It is CE, UL, RoHS, and CSA certified, ensuring it meets international safety and environmental standards.
What is the storage temperature range for the ATV340D30N4E?
The drive can be stored in temperatures ranging from -40°C to 70°C (-40°F to 158°F).
How can I integrate the ATV340D30N4E into my system?
The ATV340D30N4E integrates easily with other Schneider Electric automation products, such as PLCs and I/O modules, offering a scalable and flexible solution for motor control.
