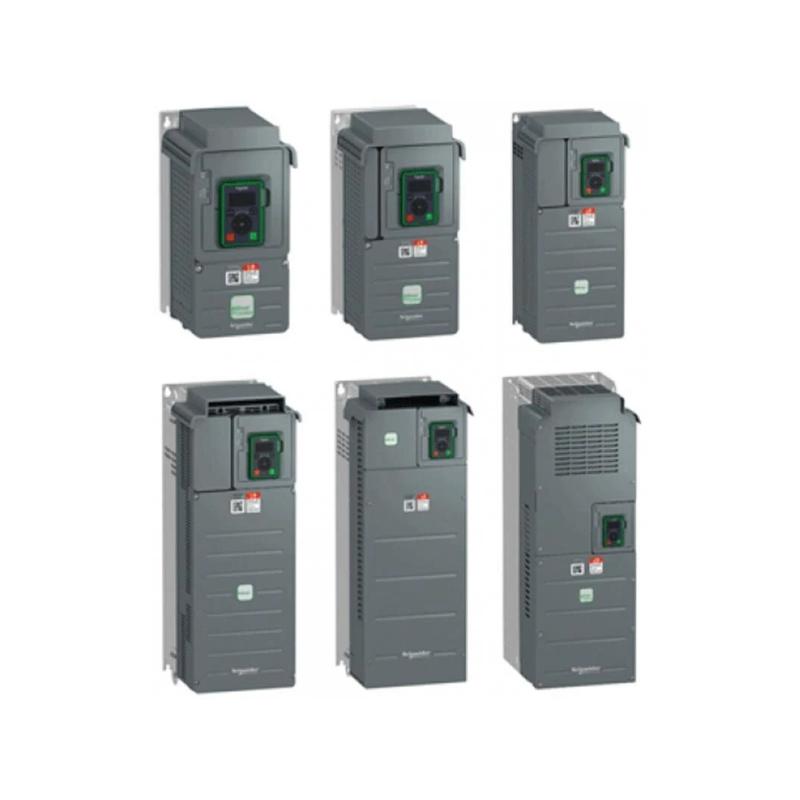

The Schneider ATV610D18N4 is a high-performance Variable Frequency Drive (VFD) engineered for demanding industrial applications that require high-torque, precision motor control. With a rated output power of 18.5 kW, this VFD is designed to control large motors in harsh industrial environments, offering advanced motor control features and energy-efficient performance.

Part of Schneider Electric’s ATV610 series, the ATV610D18N4 provides robust and reliable motor control, making it an ideal solution for applications such as pumps, compressors, conveyors, and HVAC systems. The drive is built with Sensorless Vector Control (SVC), which ensures precise speed and torque regulation, making it highly effective for applications requiring variable load management.

The ATV610D18N4 offers a combination of flexibility, durability, and energy-saving capabilities, making it a top choice for industries where reliable motor control is essential to optimize performance and reduce downtime.

Technical Specifications

Model: ATV610D18N4
Type: Variable Frequency Drive (VFD)
Power Supply: 3-phase, 380–480 VAC ±10%, 50/60 Hz
Rated Output Power: 18.5 kW
Rated Output Current: 35 A
Input Current: 27 A
Dimensions: 380 mm x 240 mm x 460 mm
Weight: 15.5 kg (34.17 lbs)
Control Mode: V/f control, Sensorless Vector Control (SVC)
Cooling Method: Forced air cooling with internal fan
Protection: IP20 ingress protection
Mounting Type: Wall-mounted, panel installation
Environmental Conditions:
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 0–95% RH (non-condensing)
Certifications: CE, UL, RoHS, and CSA compliant

Recommended Related Models

For applications requiring different power capacities or additional features, Schneider Electric offers a variety of complementary models:

Schneider ATV610D22N4: A higher power version (22 kW) suitable for more demanding motor control applications.
Schneider ATV320U22N4C: A more compact drive offering 22 kW of output power for medium-duty applications with space constraints.
Schneider ATV600: A heavy-duty VFD that excels in high-torque applications, ideal for industries with very demanding motor control needs.
Schneider ABE7CPA02: An auxiliary control module to enhance the functionality of Schneider Electric’s motor control systems.
Schneider ABL8REM24050: A power supply module designed for reliable power distribution and compatibility with Schneider Electric VFDs.

These models offer a range of power options and advanced features to ensure you find the ideal solution for your motor control needs.

Popular Schneider Electric Models

Schneider Modicon M340 – A versatile, scalable PLC for advanced automation applications.
Schneider ATV12 – A compact VFD designed for small motors and light industrial applications.
Schneider ATV320 – A medium-power drive that balances performance and energy efficiency, ideal for general-purpose motor control.
Schneider ATV600 – A robust, high-power VFD for heavy-duty industrial applications, including mining and manufacturing.
Schneider Altivar 32 – A compact drive for small to medium motors, suitable for simpler automation tasks.

These Schneider models can integrate seamlessly with the ATV610D18N4, providing flexibility and scalability for a wide range of industrial applications.

Applications

The Schneider ATV610D18N4 is designed for a variety of industrial applications requiring high-torque and precise motor control:

Pumps: Optimizes the operation of water pumps, chemical pumps, and slurry pumps in applications such as water treatment, chemical processing, and industrial fluid transfer.
Compressors: Ideal for controlling air compressors, refrigeration compressors, and HVAC systems to maintain consistent performance while saving energy.
Conveyors: Controls conveyor belts in material handling applications, ensuring smooth operation and minimizing wear and tear on motors.
HVAC Systems: Provides energy-efficient control of HVAC motors, improving the efficiency of heating, ventilation, and air conditioning systems in industrial and commercial buildings.
Manufacturing: Powers motors in production lines and robotic systems, enhancing system efficiency and reducing downtime.
Mining: Effective in handling the motor control needs of heavy-duty equipment used in mining operations, including crushers, mills, and hoists.
Water and Wastewater Treatment: Controls motors in pumping stations, filtration units, and chemical dosing systems in water and wastewater treatment plants, ensuring reliable and efficient operations.

Advantages

High Torque and Precision Control: The ATV610D18N4 provides Sensorless Vector Control (SVC) for high-torque motor control, which is ideal for applications requiring variable load management and precise control.
Energy Efficiency: The VFD optimizes motor speed based on load, significantly reducing energy consumption and lowering operational costs.
Robust Design: With IP20 protection and a durable construction, the ATV610D18N4 is built to withstand demanding industrial environments, ensuring reliability and longevity.
Compact and Easy to Integrate: The drive is designed to fit into confined spaces with a compact form factor, while offering easy integration with other Schneider Electric automation products like PLCs and HMIs.
Versatile Control Features: The V/f control and SVC modes allow for versatile control over motor speed, making it suitable for a wide range of industrial applications.
User-Friendly Interface: The intuitive control panel simplifies setup and monitoring, reducing the need for specialized training and minimizing downtime during installation and maintenance.
Longer Equipment Lifespan: By reducing mechanical stress on motors, the ATV610D18N4 helps to extend the lifespan of motors and associated equipment.

Technical FAQs

What is the rated output power of the ATV610D18N4?
The ATV610D18N4 has a rated output power of 18.5 kW.
What is the input voltage range for the ATV610D18N4?
The VFD operates on 3-phase input voltage of 380–480 VAC ±10%.
What motor control modes does the ATV610D18N4 support?
The drive supports V/f control and Sensorless Vector Control (SVC) for efficient motor control.
What is the operating temperature range for the ATV610D18N4?
The drive operates within the temperature range of -10°C to 50°C (14°F to 122°F).
How much does the ATV610D18N4 weigh?
The ATV610D18N4 weighs 15.5 kg (34.17 lbs).
Can the ATV610D18N4 be used outdoors?
No, the ATV610D18N4 has IP20 protection and is intended for indoor use only.
What cooling method is used in the ATV610D18N4?
The drive uses forced air cooling with an internal fan to ensure proper heat dissipation during operation.
What certifications does the ATV610D18N4 have?
The drive is CE, UL, RoHS, and CSA certified, meeting international safety and environmental standards.
What is the storage temperature range for the ATV610D18N4?
The storage temperature range for the ATV610D18N4 is -40°C to 70°C (-40°F to 158°F).
Can the ATV610D18N4 be easily integrated with other Schneider Electric products?
Yes, the ATV610D18N4 is designed to integrate seamlessly with Schneider Electric’s full suite of automation products, such as PLCs, HMIs, and I/O devices.
