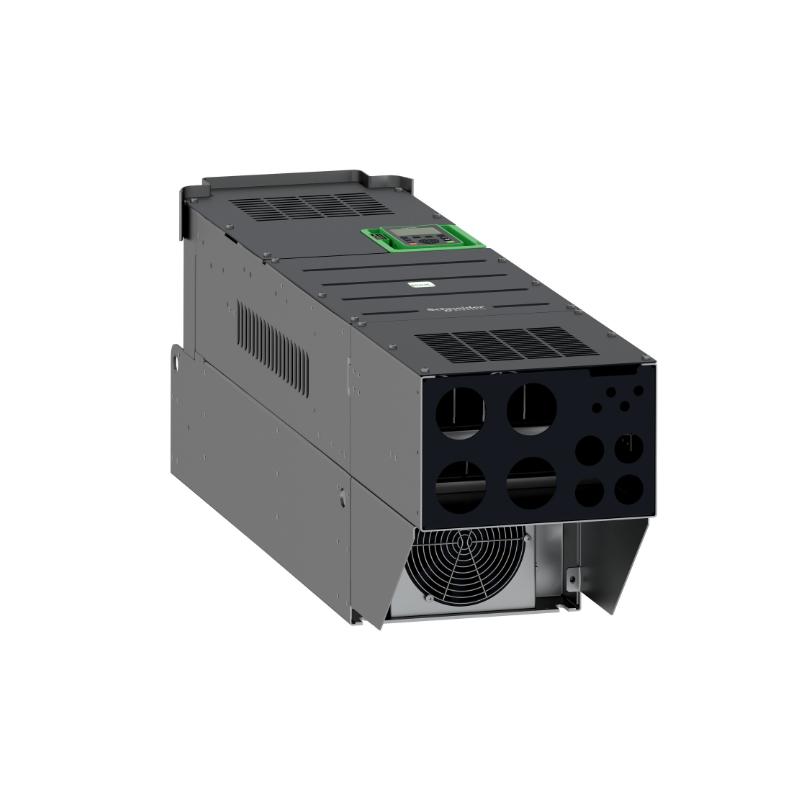

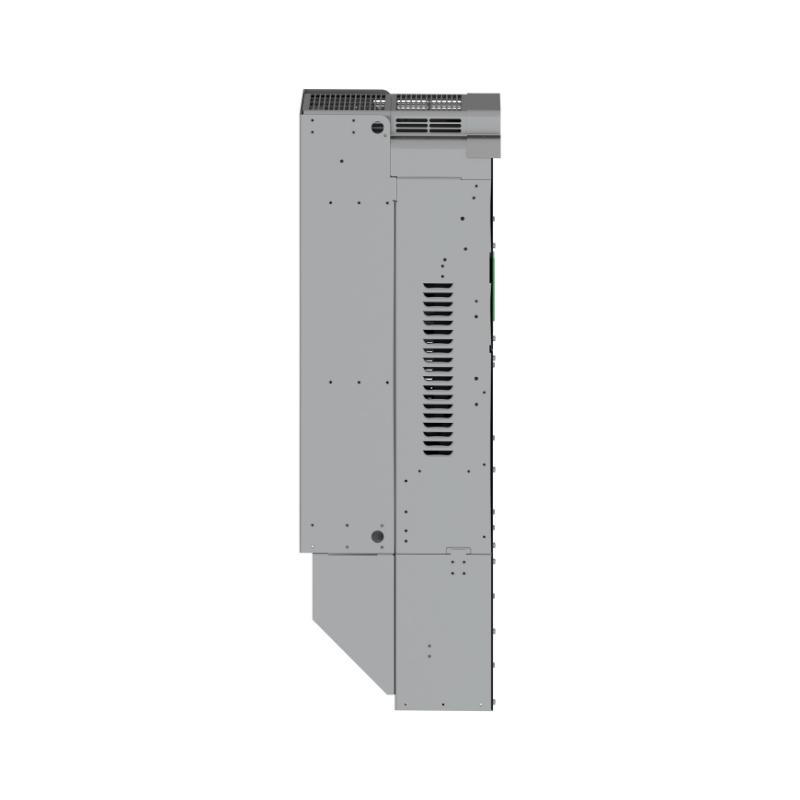

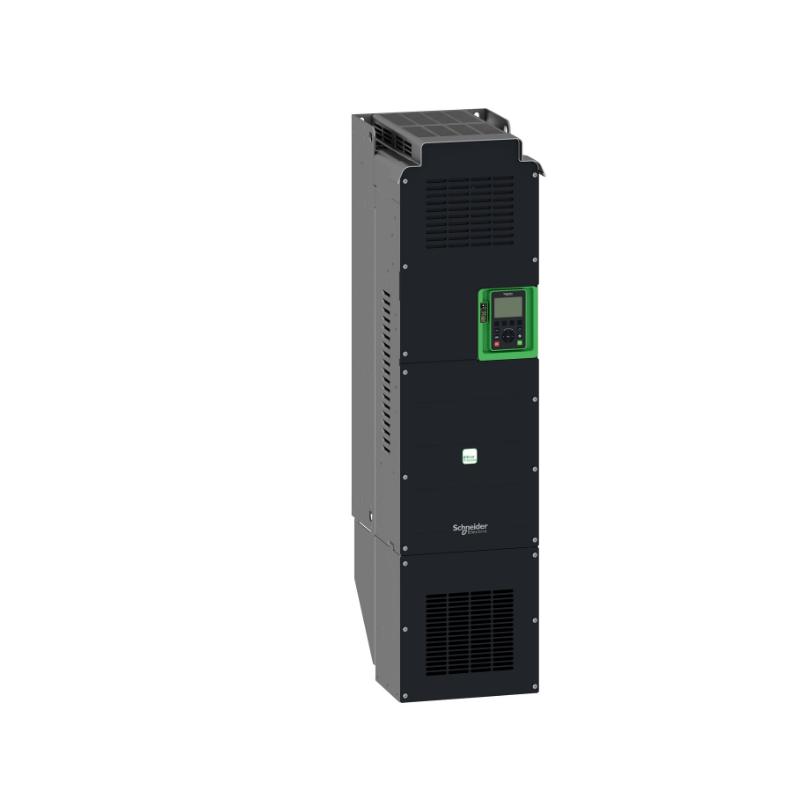

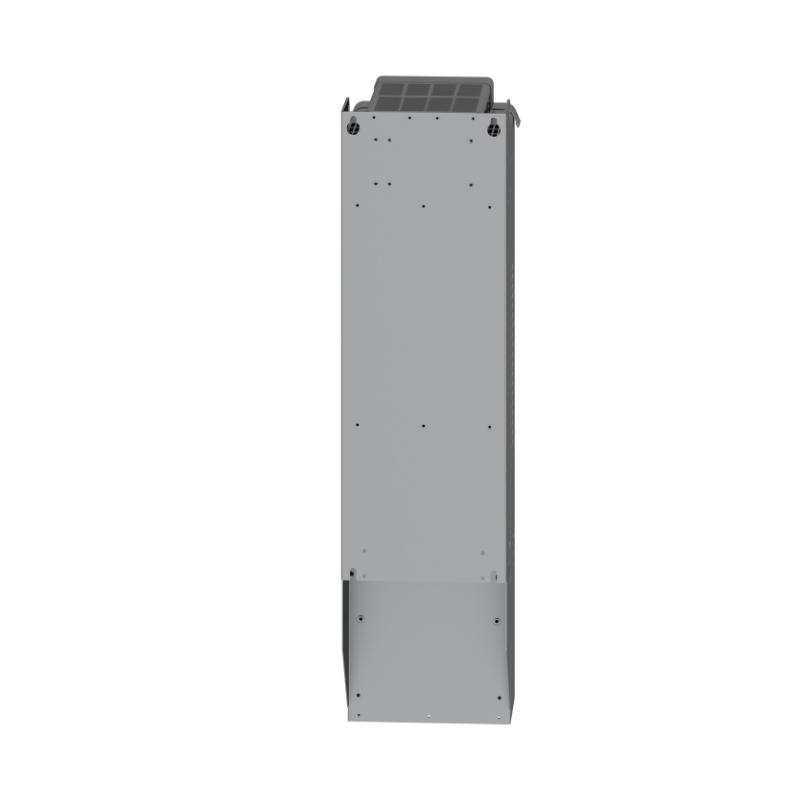

The Schneider ATV630C16N4 is a high-performance Variable Frequency Drive (VFD) designed for controlling motors in demanding industrial applications that require high precision and reliability. With a rated output power of 15 kW, the ATV630C16N4 offers advanced motor control features such as Sensorless Vector Control (SVC) and V/f control, making it ideal for both simple and complex motor-driven systems.

This drive is part of Schneider Electric’s ATV630 series, which is known for its robustness and efficiency in handling high-torque motor control in a variety of industrial sectors. Whether you are controlling pumps, fans, compressors, conveyors, or other heavy-duty applications, the ATV630C16N4 ensures reliable, energy-efficient operation while minimizing system downtime and maintenance costs.

Designed to integrate seamlessly with other Schneider Electric products, the ATV630C16N4 offers flexible installation and advanced capabilities for the most demanding motor control needs.

Technical Specifications

Model: ATV630C16N4
Type: Variable Frequency Drive (VFD)
Power Supply: 3-phase, 380–480 VAC ±10%, 50/60 Hz
Rated Output Power: 15 kW
Rated Output Current: 29 A
Input Current: 22 A
Dimensions: 380 mm x 240 mm x 460 mm
Weight: 14 kg (30.86 lbs)
Control Mode: V/f control, Sensorless Vector Control (SVC)
Cooling Method: Forced air cooling with internal fan
Protection: IP20 ingress protection
Mounting Type: Wall-mounted, panel installation
Environmental Conditions:
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 0–95% RH (non-condensing)
Certifications: CE, UL, RoHS, and CSA compliant

Recommended Related Models

To complement the ATV630C16N4 or for different power requirements, Schneider Electric offers a range of VFDs that integrate seamlessly into various systems:

Schneider ATV630C22N4: A higher power version (22 kW) for applications requiring additional power capacity while maintaining the same advanced control features.
Schneider ATV320U15N4C: A compact VFD solution offering 15 kW of output power, suitable for space-constrained applications with moderate power requirements.
Schneider ATV600: A robust VFD for high-torque, heavy-duty applications, ideal for mining, cement, and large-scale industrial operations.
Schneider ABE7CPA02: An auxiliary control device designed to enhance the functionality of Schneider Electric’s VFD systems.
Schneider ABL8REM24050: A power supply module that ensures stable and reliable operation of VFD systems, supporting enhanced performance.

These models provide additional options for users who may require more power or specific features to meet their industrial automation needs.

Popular Schneider Electric Models

Schneider Modicon M340 – A versatile, scalable PLC designed for automation in industrial applications.
Schneider ATV12 – A compact and affordable VFD suitable for small motors in light industrial applications.
Schneider ATV320 – A cost-effective VFD providing reliable motor control for a variety of general-purpose industrial applications.
Schneider ATV600 – A high-performance VFD for industrial operations requiring large motors and high-torque control.
Schneider Altivar 32 – A user-friendly VFD ideal for small to medium motor control in simpler automation tasks.

These Schneider models can work together with the ATV630C16N4 to create a comprehensive and scalable motor control system.

Applications

The Schneider ATV630C16N4 is ideal for a wide range of industrial applications that require precise motor control and high reliability:

HVAC Systems: Optimizes motor performance in heating, ventilation, and air conditioning systems, improving energy efficiency while ensuring consistent airflow and temperature control.
Pumps: Perfect for controlling motors in water treatment plants, chemical dosing, and industrial fluid pumping applications, ensuring precise flow control and reducing energy consumption.
Compressors: Provides accurate control of air and refrigeration compressors, delivering energy-efficient performance and reducing operational costs.
Conveyors: Ideal for controlling conveyor systems in material handling, mining, and production environments, providing smooth and precise motor operation for efficient movement of goods.
Manufacturing: Powers motors in production lines, robotics, and automated systems, ensuring efficient and adaptable motor control for high-throughput manufacturing processes.
Mining: Designed for use in heavy-duty mining applications, such as crushers, mills, and hoists, ensuring reliable and continuous motor control in extreme conditions.
Water and Wastewater Treatment: Controls motors in pumping stations, filtration systems, and chemical dosing units in water and wastewater treatment, ensuring operational efficiency and reliability.

Advantages

High-Performance Motor Control: The ATV630C16N4 offers Sensorless Vector Control (SVC), providing precise control over motor speed, torque, and acceleration, making it ideal for high-torque applications requiring precise load management.
Energy Savings: By adjusting motor speeds based on load demand, the VFD ensures optimal energy usage, leading to lower operational costs and reduced energy consumption.
Compact and Durable Design: Despite its powerful performance, the ATV630C16N4 is designed with a compact form factor, allowing for easy installation in spaces with limited room. It also features IP20 protection, ensuring durability in harsh industrial environments.
Seamless Integration: This VFD integrates smoothly with other Schneider Electric automation products, such as PLCs, HMIs, and I/O devices, offering a flexible solution for motor control in complex automation systems.
Flexible Installation Options: The ATV630C16N4 is designed for wall mounting or panel installation, making it versatile and adaptable to different setups.
User-Friendly Interface: Equipped with an intuitive display and controls, the ATV630C16N4 is easy to configure and monitor, reducing setup time and minimizing the risk of errors.
Reduced Maintenance Costs: By ensuring optimal motor performance and reducing the strain on equipment, the ATV630C16N4 helps to extend the life of motors and reduce the need for costly repairs or replacements.

Technical FAQs

What is the rated output power of the ATV630C16N4?
The ATV630C16N4 provides a rated output power of 15 kW.
What is the input voltage range for the ATV630C16N4?
The VFD operates on 3-phase input voltage in the range of 380–480 VAC ±10%.
What motor control modes does the ATV630C16N4 support?
The drive supports both V/f control and Sensorless Vector Control (SVC), allowing for efficient and precise motor control across a variety of industrial applications.
What is the operating temperature range for the ATV630C16N4?
The drive operates within a temperature range of -10°C to 50°C (14°F to 122°F).
How much does the ATV630C16N4 weigh?
The ATV630C16N4 weighs 14 kg (30.86 lbs).
Can the ATV630C16N4 be used outdoors?
No, the ATV630C16N4 has IP20 protection, which makes it suitable for indoor use only.
What cooling method is used in the ATV630C16N4?
The ATV630C16N4 uses forced air cooling with an internal fan to ensure the drive operates within safe temperature ranges.
What certifications does the ATV630C16N4 have?
The drive is certified to CE, UL, RoHS, and CSA standards, ensuring compliance with international safety and environmental regulations.
What is the storage temperature range for the ATV630C16N4?
The storage temperature range for the ATV630C16N4 is -40°C to 70°C (-40°F to 158°F).
How can I integrate the ATV630C16N4 with other Schneider Electric products?
The ATV630C16N4 is compatible with other Schneider Electric products, including PLCs, HMIs, and I/O devices, enabling complete, seamless integration for complex motor control systems.
