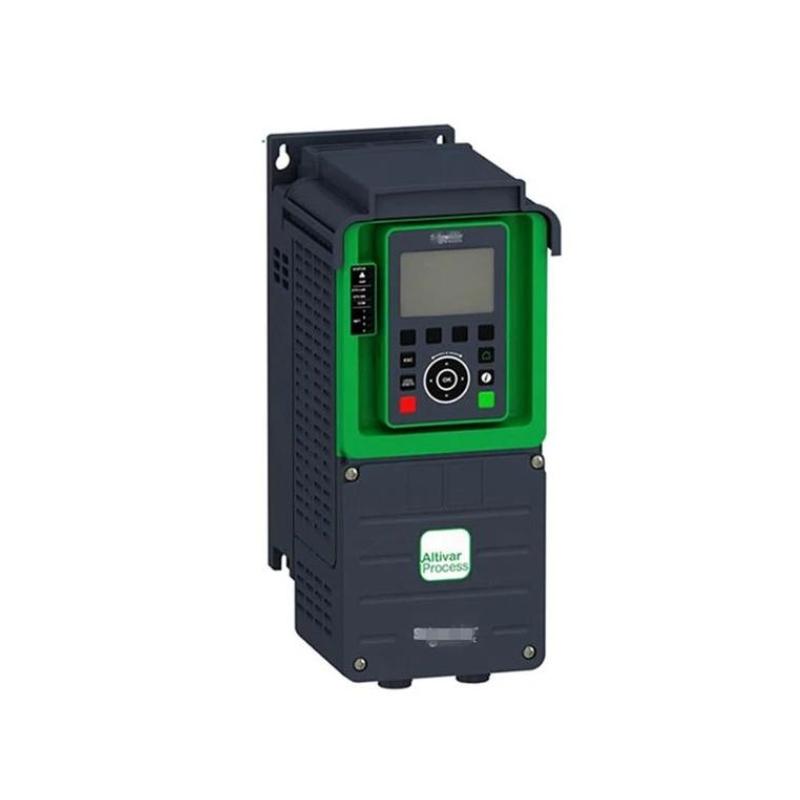

The Schneider ATV630D30N4 is a powerful Variable Frequency Drive (VFD) designed for demanding industrial applications that require high performance, energy efficiency, and precise motor control. With a rated output power of 30 kW, this VFD is ideal for controlling large motors in industries such as manufacturing, water treatment, HVAC, and material handling. The ATV630D30N4 integrates Sensorless Vector Control (SVC) and V/f control to provide exceptional torque management, accurate speed regulation, and reduced energy consumption.

As part of Schneider Electric's ATV630 series, the ATV630D30N4 combines advanced features with reliability and robustness, making it suitable for environments where high torque and high precision are essential. Its versatility in controlling various types of motors—such as pumps, compressors, conveyors, and fans—makes it a highly effective solution for industrial automation.

Technical Specifications

Model: ATV630D30N4
Type: Variable Frequency Drive (VFD)
Power Supply: 3-phase, 380–480 VAC ±10%, 50/60 Hz
Rated Output Power: 30 kW
Rated Output Current: 58 A
Input Current: 43 A
Dimensions: 420 mm x 290 mm x 530 mm
Weight: 23 kg (50.71 lbs)
Control Mode: V/f control, Sensorless Vector Control (SVC)
Cooling Method: Forced air cooling with internal fan
Protection: IP20 ingress protection
Mounting Type: Wall-mounted, panel installation
Environmental Conditions:
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 0–95% RH (non-condensing)
Certifications: CE, UL, RoHS, and CSA compliant

Recommended Related Models

To meet varying application needs, Schneider Electric offers several complementary models:

Schneider ATV630D45N4: A higher power version (45 kW) for applications that demand additional motor control capacity without compromising on performance or efficiency.
Schneider ATV320U30N4C: A more compact solution providing 30 kW output power with advanced energy-saving features, ideal for space-constrained applications.
Schneider ATV600: A heavy-duty VFD for controlling large motors in harsh environments like mining, cement, and steel industries.
Schneider ABE7CPA02: An auxiliary control module that enhances the functionality of Schneider Electric’s motor control solutions, ensuring greater flexibility and integration.
Schneider ABL8REM24050: A power supply module providing reliable power distribution and compatibility with Schneider Electric’s VFD systems for increased stability and uptime.

These models provide flexibility, scalability, and performance options to meet diverse industrial motor control needs.

Popular Schneider Electric Models

Schneider Modicon M340 – A versatile and scalable PLC for advanced industrial automation applications.
Schneider ATV12 – A compact and cost-effective VFD for small motors in light-duty applications.
Schneider ATV320 – A reliable, energy-efficient drive for medium-sized motor control across general industrial applications.
Schneider ATV600 – A robust and heavy-duty VFD solution for large-scale, high-torque industrial operations.
Schneider Altivar 32 – A user-friendly drive designed for small to medium motors, ideal for basic automation tasks.

These Schneider models integrate well with the ATV630D30N4, creating a complete and scalable motor control and automation solution.

Applications

The Schneider ATV630D30N4 is ideal for high-power, high-torque applications that require precise control of motor speeds. Common applications include:

HVAC Systems: The drive optimizes motor control in HVAC systems, enhancing energy efficiency in heating, ventilation, and air conditioning units, and ensuring consistent climate control.
Pumps: It’s perfect for controlling large pumps used in water treatment plants, chemical processing, and industrial fluid pumping systems, ensuring smooth operation and reducing energy usage.
Compressors: The ATV630D30N4 provides excellent control for air compressors and refrigeration systems, maintaining consistent performance while reducing energy consumption.
Conveyors and Material Handling: It offers efficient motor control for conveyor systems in warehouses, manufacturing plants, and material handling applications, improving productivity and reducing wear on mechanical components.
Manufacturing: Powers motors in automated production lines, robotic systems, and heavy-duty manufacturing processes, offering precise speed and torque control.
Mining and Heavy Industries: The VFD is suitable for controlling motors in crushers, mills, and other high-torque machinery used in mining and heavy industrial applications, ensuring reliable, efficient operation.
Water and Wastewater Treatment: It is used to control motors in pumping stations, filtration units, and dosing systems, ensuring reliable performance in water and wastewater treatment facilities.

Advantages

High Torque and Precision Control: The ATV630D30N4 utilizes Sensorless Vector Control (SVC), providing precise motor control, even under variable loads, ensuring optimal performance in demanding applications.
Energy Efficiency: By adjusting motor speed based on load conditions, the VFD reduces energy consumption, helping industries save on operational costs while ensuring smooth system operation.
Compact and Robust Design: The ATV630D30N4 is built with a compact form factor and IP20 protection, making it suitable for both space-constrained environments and harsh industrial settings.
Seamless System Integration: Schneider Electric’s ATV630 series integrates easily with other automation products, such as PLCs, HMIs, and I/O devices, offering a cohesive solution for complex systems.
User-Friendly Interface: The intuitive control panel simplifies setup, operation, and monitoring, reducing the need for specialized training and minimizing downtime during maintenance.
Extended Motor Lifespan: By reducing mechanical stress on motors, the ATV630D30N4 helps extend the lifespan of motors and other components, leading to lower maintenance costs and fewer replacements.
Versatile Installation Options: The ATV630D30N4 can be easily mounted on panels or walls, providing flexibility in installation without compromising its performance.

Technical FAQs

What is the rated output power of the ATV630D30N4?
The ATV630D30N4 has a rated output power of 30 kW.
What input voltage does the ATV630D30N4 support?
The drive operates on 3-phase input voltage of 380–480 VAC ±10%.
What motor control modes does the ATV630D30N4 support?
The drive supports V/f control and Sensorless Vector Control (SVC), making it highly efficient for various motor control applications.
What is the temperature range for the ATV630D30N4?
The ATV630D30N4 operates within an ambient temperature range of -10°C to 50°C (14°F to 122°F).
How much does the ATV630D30N4 weigh?
The ATV630D30N4 weighs 23 kg (50.71 lbs).
Can the ATV630D30N4 be used outdoors?
No, the ATV630D30N4 has IP20 protection and is designed for indoor use only.
What cooling system is used in the ATV630D30N4?
The drive uses forced air cooling with an internal fan for optimal heat dissipation and continuous performance.
What certifications does the ATV630D30N4 have?
The drive is CE, UL, RoHS, and CSA certified, meeting global safety and environmental standards.
What is the storage temperature range for the ATV630D30N4?
The storage temperature range for the ATV630D30N4 is -40°C to 70°C (-40°F to 158°F).
Can the ATV630D30N4 be integrated with other Schneider Electric products?
Yes, the ATV630D30N4 integrates seamlessly with other Schneider Electric automation systems, including PLCs, HMIs, and I/O devices, providing a comprehensive solution for motor control.
