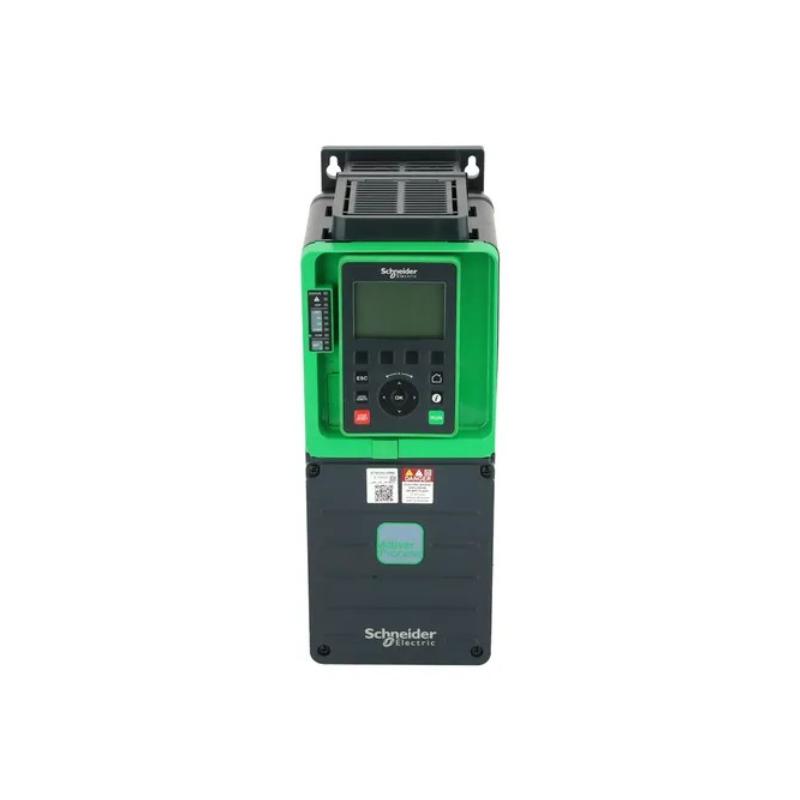

The Schneider ATV930U30N4 is a robust Variable Frequency Drive (VFD) that provides precise motor control for medium-power industrial applications. With a 30 kW rated output, the ATV930U30N4 is optimized for controlling motors in environments where performance, energy efficiency, and reliability are key. Part of Schneider Electric's ATV930 series, this VFD integrates advanced technologies like Sensorless Vector Control (SVC) and V/f control, ensuring high efficiency and smooth operation across a variety of load conditions.

Ideal for applications such as HVAC systems, pumps, conveyors, and manufacturing processes, the ATV930U30N4 provides exceptional performance while helping to reduce energy consumption and operational costs. Its flexible configuration options make it suitable for a wide range of industrial sectors, including food and beverage, water treatment, and automated material handling.

Technical Specifications

Model: ATV930U30N4
Type: Variable Frequency Drive (VFD)
Power Supply: 3-phase, 380–480 VAC ±10%, 50/60 Hz
Rated Output Power: 30 kW
Rated Output Current: 58 A
Input Current: 43 A
Dimensions: 430 mm x 230 mm x 580 mm
Weight: 18 kg (39.7 lbs)
Control Mode: V/f control, Sensorless Vector Control (SVC)
Cooling Method: Forced air cooling with internal fan
Protection: IP20 ingress protection
Mounting Type: Wall-mounted or panel installation
Environmental Conditions:
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 0–95% RH (non-condensing)
Certifications: CE, UL, RoHS, and CSA compliant

Recommended Related Models

For different applications that require higher or lower power ratings, Schneider Electric offers several alternative VFDs:

Schneider ATV930U45N4: A 45 kW VFD offering increased power for medium- to large-scale industrial applications.
Schneider ATV320U30N4: A compact and affordable alternative for medium-power applications requiring 30 kW output in smaller spaces.
Schneider ATV630U30N4: A more rugged, heavy-duty VFD for environments that require high durability and advanced control features.
Schneider ABE7CPA02: An auxiliary control module that enhances monitoring and control capabilities of Schneider Electric VFDs.
Schneider ABL8REM24050: A power supply module to ensure optimal power distribution in Schneider Electric’s drive systems.

These models provide a comprehensive selection for various motor control needs across multiple industries.

Popular Schneider Electric Models

Schneider ATV12 – A compact VFD for small-to-medium motors, ideal for basic motor control applications like fans and pumps.
Schneider ATV320 – Offers advanced control for small- to medium-sized motors, commonly used in HVAC systems and simple automation processes.
Schneider ATV600 – A heavy-duty VFD designed for high-torque environments, perfect for industrial equipment in harsh conditions.
Schneider Modicon M340 – A modular and flexible PLC for medium-to-large-scale automation systems, often used in manufacturing and control systems.
Schneider Altivar 32 – A user-friendly, cost-effective VFD for smaller motor control tasks, ideal for simpler systems in smaller industries.

These models can be integrated with the ATV930U30N4 to provide a tailored solution to specific motor control requirements.

Applications

The Schneider ATV930U30N4 is designed to meet the needs of a wide range of medium-power applications:

HVAC Systems: Controls motors for air handling units, fans, and pumps, ensuring optimal energy efficiency and smooth operation in heating, ventilation, and air conditioning systems.
Pumps: Ideal for fluid control in water treatment facilities, chemical processes, and industrial pumping applications, providing reliable, energy-efficient motor management.
Conveyors: Perfect for controlling the motors of conveyors used in material handling systems, ensuring smooth operation and reducing wear and tear on equipment.
Manufacturing Processes: Provides precise motor control for production lines, assembly machines, and automated systems, enhancing system reliability and output quality.
Food and Beverage Industry: Optimizes energy use in food production processes like mixing, blending, and packaging, where precise motor control and efficiency are critical.
Water and Wastewater Treatment: Ensures smooth operation of pumps, compressors, and other equipment, contributing to energy savings in water distribution and treatment systems.

Advantages

Precise Motor Control: With Sensorless Vector Control (SVC) and V/f control, the ATV930U30N4 offers high precision in motor speed, torque, and acceleration control, even under varying load conditions.
Energy Efficiency: The VFD adjusts motor speed according to load requirements, reducing energy consumption and operational costs while maintaining optimal performance.
Compact and Flexible Design: The ATV930U30N4 is compact and designed for wall-mount or panel-mount installations, providing flexibility for space-constrained environments.
Integration with Schneider Electric Systems: The ATV930U30N4 integrates seamlessly with other Schneider Electric products, including PLCs, HMIs, and I/O modules, enabling a complete automation solution.
Durability and Reliability: With IP20 protection, the drive is designed for reliability in industrial environments, while the internal fan ensures optimal cooling.
Longer Equipment Life: By reducing mechanical stress on motors and other components, the ATV930U30N4 extends the lifespan of machinery and reduces maintenance needs.
User-Friendly Interface: The drive comes with an intuitive control panel and software interface, simplifying setup, monitoring, and diagnostics.

Technical FAQs

What is the rated output power of the ATV930U30N4?
The ATV930U30N4 provides 30 kW of output power, making it suitable for medium-power industrial applications.
What voltage range does the ATV930U30N4 support?
The ATV930U30N4 supports a 3-phase input voltage range of 380–480 VAC ±10%, with a frequency of 50/60 Hz.
What motor control modes are available on the ATV930U30N4?
It supports V/f control and Sensorless Vector Control (SVC) for high-precision motor control under variable load conditions.
What is the operating temperature range for the ATV930U30N4?
The operating temperature range is -10°C to 50°C (14°F to 122°F).
How much does the ATV930U30N4 weigh?
The ATV930U30N4 weighs 18 kg (39.7 lbs).
Can the ATV930U30N4 be used outdoors?
No, the ATV930U30N4 is rated with IP20 protection, making it suitable for indoor use only.
What cooling method is used in the ATV930U30N4?
The ATV930U30N4 utilizes forced air cooling with an internal fan to ensure optimal performance and temperature regulation.
What certifications does the ATV930U30N4 have?
It is certified with CE, UL, RoHS, and CSA, meeting international safety and environmental standards.
What is the storage temperature range for the ATV930U30N4?
The storage temperature range is -40°C to 70°C (-40°F to 158°F).
Can the ATV930U30N4 be integrated with other Schneider Electric products?
Yes, it integrates seamlessly with other Schneider Electric systems, including PLCs, HMIs, and I/O modules, providing a complete motor control solution.
