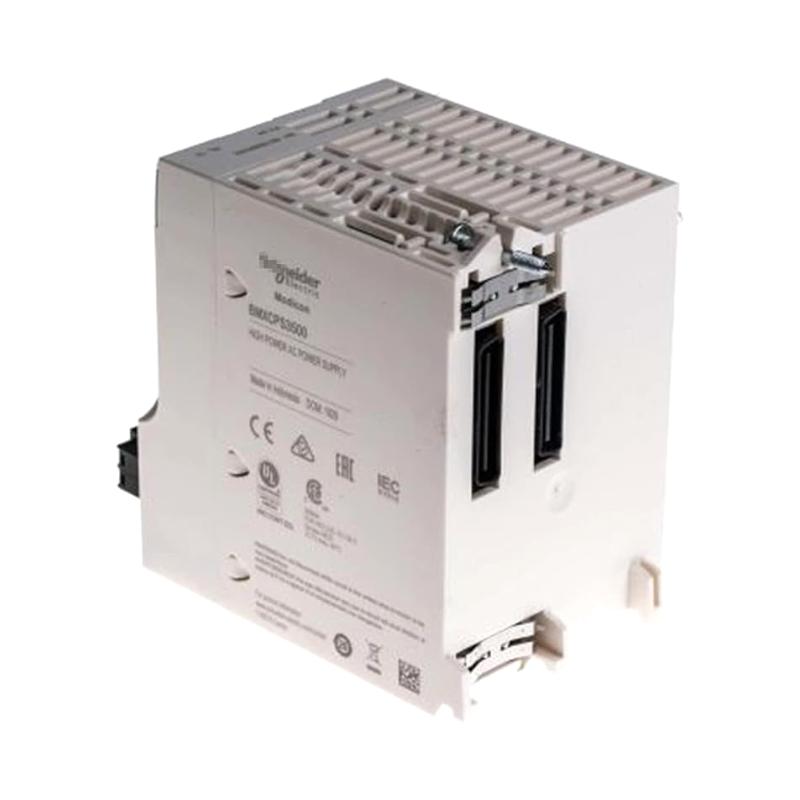

The Schneider BMXCPS3500H is a high-power supply module specifically designed to meet the demands of complex automation systems in large-scale industrial applications. Compatible with the Modicon M340 PLC platform, this module provides stable and reliable 24V DC power to ensure the seamless operation of your control system. With a robust 350W power output, the BMXCPS3500H is ideal for supporting systems with high power requirements, such as those in large manufacturing environments, process control systems, and complex energy management solutions.

The BMXCPS3500H is equipped with redundancy capabilities, which enhance system reliability by ensuring continuous operation in the event of power supply failure. It supports high-efficiency operations, reducing energy consumption and operational costs, making it a critical component for industries where uptime is essential and energy efficiency is prioritized.

Technical Specifications

Model: BMXCPS3500H
Type: High-Power Supply Module
PLC Compatibility: Modicon M340
Input Voltage Range: 100-240V AC (wide compatibility for global use)
Output Voltage: 24V DC
Power Output: 350W (suitable for larger systems with multiple modules)
Mounting Type: DIN rail mountable
Dimensions: 130 mm x 120 mm x 75 mm
Weight: 1.2 kg (2.65 lbs)
Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Efficiency: ≥ 90% (designed to minimize energy loss)
Protection: IP20 (protection against dust and accidental contact with electrical parts)
Redundancy: Redundant power supply support to ensure reliability and continuous operation
Certifications: CE, UL, RoHS compliant

Recommended Related Models

For additional power supply options or complementary components for your Modicon M340 PLC, Schneider Electric offers a variety of related models that can be used alongside the BMXCPS3500H:

Schneider BMXCPS2000: A 20W power supply module, designed for smaller systems or applications that require less power.
Schneider BMXCPS2010: A 40W power supply module, perfect for systems with moderate power needs.
Schneider BMXCPS5000: A 500W power supply module, offering even more power for larger PLC setups that need to support more extensive I/O modules or complex processes.
Schneider BMXPPS2000: A power supply module for the Modicon M340, providing efficient power for applications requiring a stable and reliable supply.

These models allow you to configure your system based on the specific power requirements of your application, ensuring a flexible and scalable solution for automation needs.

Popular Schneider Electric Models

Schneider Modicon M340 – A highly flexible and scalable PLC system for medium-to-large-scale automation tasks, offering a wide range of I/O modules and communication options.
Schneider Modicon M580 – A high-performance, distributed control system for large, complex applications that demand high reliability, advanced security, and real-time data processing.
Schneider ATV320 – A Variable Frequency Drive (VFD) designed for precise control of motors in HVAC, pump, and conveyor systems, optimizing energy use and system performance.
Schneider ATV630 – A robust VFD designed for heavy-duty motor control in industrial processes such as crushers, mills, and large pumps.
Schneider EcoStruxure™ Control Expert – Schneider Electric’s programming and configuration software for Modicon PLCs, offering seamless integration, increased productivity, and ease of operation.

These Schneider Electric products, along with the BMXCPS3500H, form the core of many industrial automation solutions, providing efficient, reliable, and scalable systems.

Applications

The Schneider BMXCPS3500H is a high-power supply module that is well-suited for applications requiring significant power output, ensuring stable performance in the following sectors:

Manufacturing Automation: Provides reliable power to support systems controlling assembly lines, robotics, and other manufacturing processes that require substantial power for motors, sensors, and actuators.
Process Control: Ideal for large-scale industrial processes such as chemical production, food and beverage manufacturing, pharmaceuticals, and oil and gas operations where consistent power is required for monitoring and controlling complex machinery.
Energy Management: Powers systems used in energy distribution and management, such as HVAC, lighting, and power control equipment, optimizing energy consumption and ensuring reliable operation in industrial facilities.
Water and Wastewater Treatment: Essential for providing power to control systems for pumps, valves, sensors, and monitoring equipment in large-scale water treatment and wastewater processing plants.
Large-Scale Building Automation: Powers control systems for smart building technologies, including HVAC systems, lighting control, security, and access systems, ensuring smooth operation in commercial and industrial buildings.
Robotic Systems: Used to supply power to robotic arms, conveyors, and automated machinery that require significant power for operation in high-demand environments.

The BMXCPS3500H is designed for larger industrial environments that require substantial and reliable power distribution for multiple modules and complex automation systems.

Advantages

High Power Output: With a 350W power output, the BMXCPS3500H is capable of supporting larger PLC systems and multiple I/O modules, making it suitable for demanding applications.
Energy Efficiency: The module boasts an efficiency of ≥ 90%, reducing energy consumption and operational costs by minimizing power losses.
Redundant Power Option: Supports redundant power configurations, ensuring that your system remains operational even if one power supply fails, increasing reliability and uptime.
Global Compatibility: With an input voltage range of 100-240V AC, the BMXCPS3500H is suitable for use in different countries with varying power standards.
Compact and Easy to Install: The DIN rail mountable design ensures that the module can be easily integrated into control panels and automation cabinets, optimizing space.
Durable and Reliable: The IP20 protection rating ensures that the BMXCPS3500H can withstand harsh industrial environments with dust and accidental contact protection.
Wide Temperature Range: With an operating temperature range of 0°C to 60°C (32°F to 140°F), this power supply module is designed for use in a wide variety of industrial settings.

Technical FAQs

What is the power output of the BMXCPS3500H?
The BMXCPS3500H provides a 350W output, suitable for larger, more power-intensive automation systems.
What is the input voltage range for the BMXCPS3500H?
The module accepts an input voltage range of 100-240V AC, making it compatible with global electrical standards.
Does the BMXCPS3500H support redundant power?
Yes, the module supports redundant power configurations to ensure continued operation in case of power failure.
What is the efficiency of the BMXCPS3500H?
The BMXCPS3500H boasts an efficiency of ≥ 90%, ensuring minimal energy waste and helping reduce operating costs.
What is the weight of the BMXCPS3500H?
The BMXCPS3500H weighs approximately 1.2 kg (2.65 lbs), making it relatively lightweight for its power capacity.
What is the operating temperature range of the BMXCPS3500H?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F).
What certifications does the BMXCPS3500H have?
The module is CE, UL, and RoHS certified, ensuring compliance with international safety, quality, and environmental standards.
Can the BMXCPS3500H be used in hazardous environments?
The BMXCPS3500H is rated with an IP20 protection level, meaning it should be used in environments where dust or moisture is not a concern. For hazardous environments, additional protection or enclosures may be required.
What is the protection rating of the BMXCPS3500H?
The module has an IP20 protection rating, offering basic protection against dust and accidental contact with electrical components.
Can the BMXCPS3500H be used with other Schneider Electric PLCs?
The BMXCPS3500H is specifically designed for the Modicon M340 PLC but may be compatible with other Schneider Electric PLCs that require a similar power supply.
