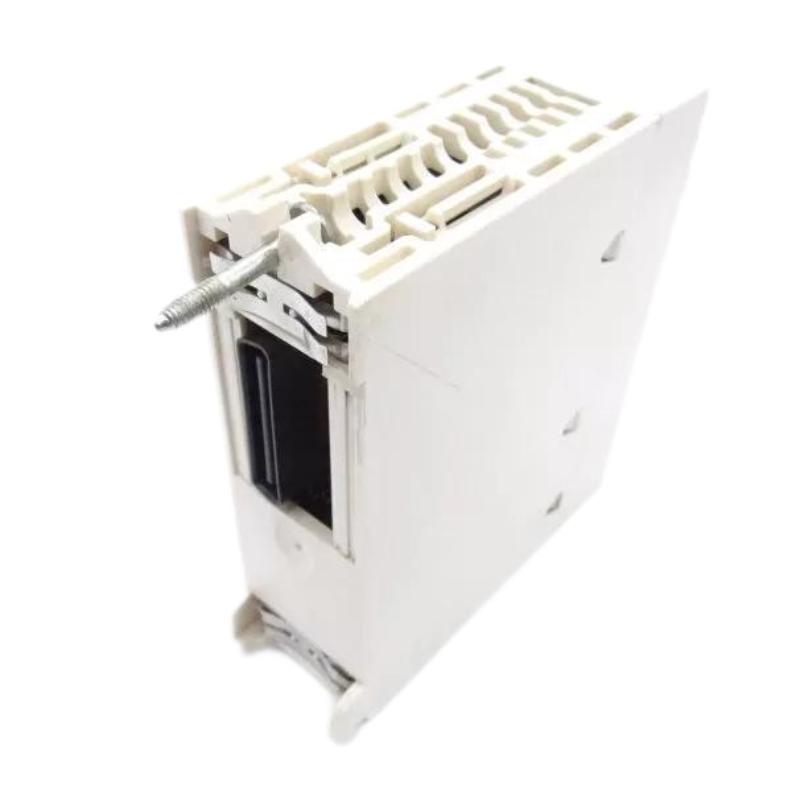

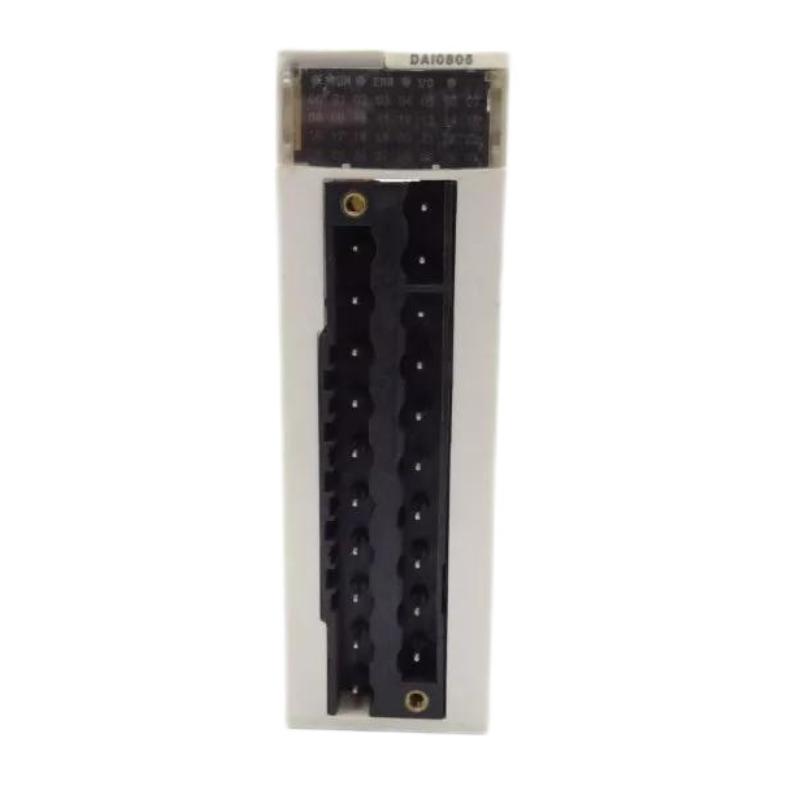

The Schneider BMXDAI0805 is an 8-channel analog input module designed for the Modicon M340 PLC. This module is engineered to convert real-world analog signals—such as voltage and current—into digital data that can be processed by the PLC. The BMXDAI0805 supports up to 8 analog inputs, making it ideal for applications that require precise measurement and control of analog signals in automation systems.

Perfect for industries such as manufacturing, process control, and energy management, this module allows for seamless integration with a variety of sensors and devices, including temperature sensors, pressure transducers, and flow meters. Whether you're working with analog voltage, current loops (4-20mA), or thermocouples, the BMXDAI0805 is a highly reliable choice for your automation system.

Technical Specifications

Model: BMXDAI0805
Type: 8-Channel Analog Input Module
PLC Compatibility: Modicon M340
Number of Inputs: 8 analog inputs
Input Type:
- Voltage: 0-10V, 0-5V, ±10V
- Current: 4-20mA
Resolution: 12-bit (for precise measurements)
Input Impedance:
- Voltage Input: ≥ 1 MΩ
- Current Input: 250 Ω
Signal Conversion: Analog-to-Digital Conversion (ADC)
Mounting Type: DIN rail mountable
Dimensions: 90 mm x 120 mm x 60 mm
Weight: 0.45 kg (0.99 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (protection against dust and accidental contact)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

For expanding your Modicon M340 system with more advanced capabilities, Schneider Electric offers other compatible I/O modules and accessories:

Schneider BMXDAI1610: A 16-channel analog input module, providing additional I/O channels for systems requiring more analog inputs.
Schneider BMXDAI3200: A high-precision analog input module with higher resolution (16-bit) and more input types (including thermocouples and RTDs).
Schneider BMXCRP0800: A 16-channel digital output module for controlling digital devices based on the analog inputs received from sensors.
Schneider BMXPIF0200: A communication interface module for seamless data transfer between your Modicon M340 PLC and field devices, including industrial communication protocols such as Modbus.

These modules allow you to further customize your system based on the specific requirements of your application, whether it involves more I/O capacity, enhanced signal processing, or advanced communication capabilities.

Popular Schneider Electric Models

Schneider Modicon M340 – A scalable and flexible PLC ideal for mid to large-scale automation applications. It supports a wide range of digital and analog I/O modules, making it versatile for complex industrial control systems.
Schneider Modicon M580 – A high-performance PLC designed for mission-critical applications requiring advanced cybersecurity, redundancy, and real-time data processing capabilities.
Schneider ATV320 – A Variable Frequency Drive (VFD) optimized for controlling motors in applications such as HVAC, pumps, and conveyors.
Schneider ATV630 – A heavy-duty VFD designed for large motor control, often used in industries like mining, cement production, and materials handling.
Schneider EcoStruxure™ Control Expert – Schneider Electric’s powerful PLC programming software, designed to configure and program Modicon PLCs quickly and efficiently, enhancing productivity.

These products, alongside the BMXDAI0805, provide a comprehensive and scalable solution for your industrial automation and control systems.

Applications

The Schneider BMXDAI0805 is ideal for industries where analog signals need to be accurately monitored and controlled:

Manufacturing Automation: Perfect for connecting to temperature sensors, pressure transducers, and other process control devices, ensuring accurate measurements and system performance in automated production lines.
Process Control: Used in industries like chemical, pharmaceutical, and food & beverage, where precise control over variables such as temperature, pressure, and flow is critical.
Energy Management: Monitors and controls energy consumption devices such as power meters, temperature sensors, and humidity controllers, enabling efficient energy distribution and usage.
Water & Wastewater Treatment: Measures and controls parameters like water flow, pH levels, and temperature to maintain optimal conditions in treatment plants and ensure the quality of water.
Building Automation: Integrated with HVAC and lighting control systems to ensure efficient and precise monitoring of environmental variables such as temperature and humidity in commercial buildings.
Renewable Energy: Monitors signals from solar panels, wind turbines, and other renewable energy sources to ensure proper system performance and efficiency.

The BMXDAI0805 provides crucial analog data processing for applications across a broad range of industries.

Advantages

High Precision: With a 12-bit resolution, the BMXDAI0805 ensures accurate analog signal measurement, allowing for precise control and monitoring of industrial processes.
Flexible Input Types: Supports a wide range of input signal types, including 0-10V, 0-5V, ±10V, and 4-20mA, making it suitable for a variety of sensors and field devices.
Compact and Space-Efficient: The DIN rail mountable design allows easy integration into control panels, saving space and simplifying installation in industrial environments.
Energy Efficiency: Designed to minimize power consumption, the module operates efficiently at 24V DC, helping reduce operational costs.
Robust and Reliable: With an IP20 protection rating, the BMXDAI0805 is built to withstand typical industrial conditions, protecting it from dust and accidental contact with live parts.
Wide Temperature Range: The module can operate in a temperature range of 0°C to 60°C, making it suitable for use in a variety of environmental conditions.
Certified Compliance: The CE, UL, and RoHS certifications ensure that the BMXDAI0805 meets international safety, quality, and environmental standards.

Technical FAQs

How many analog inputs does the BMXDAI0805 have?
The BMXDAI0805 features 8 analog inputs, ideal for medium-sized applications requiring multiple analog signals.
What types of analog signals can the BMXDAI0805 process?
The module supports voltage signals (0-10V, ±10V, 0-5V) and current signals (4-20mA), allowing for a wide range of industrial sensors.
What is the resolution of the BMXDAI0805?
The module provides 12-bit resolution, offering sufficient accuracy for most industrial automation tasks.
Can the BMXDAI0805 handle both voltage and current inputs simultaneously?
Yes, the module can handle both voltage and current inputs, making it versatile for various sensor types.
What is the protection rating of the BMXDAI0805?
The BMXDAI0805 is rated IP20, providing protection against dust and accidental contact, making it suitable for standard industrial environments.
What is the weight of the BMXDAI0805 module?
The module weighs approximately 0.45 kg (0.99 lbs), making it easy to install and integrate into control panels.
What is the operating temperature range of the BMXDAI0805?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.
Can the BMXDAI0805 be used in hazardous locations?
With an IP20 rating, the BMXDAI0805 is not intended for highly hazardous environments. Additional protection or enclosures may be needed for such environments.
What certifications does the BMXDAI0805 have?
The module is CE, UL, and RoHS certified, ensuring it complies with global safety, environmental, and quality standards.
Is the BMXDAI0805 compatible with other Schneider Electric PLCs?
The BMXDAI0805 is designed specifically for use with the Modicon M340, but it may be compatible with other Schneider Electric PLCs supporting similar I/O modules.
