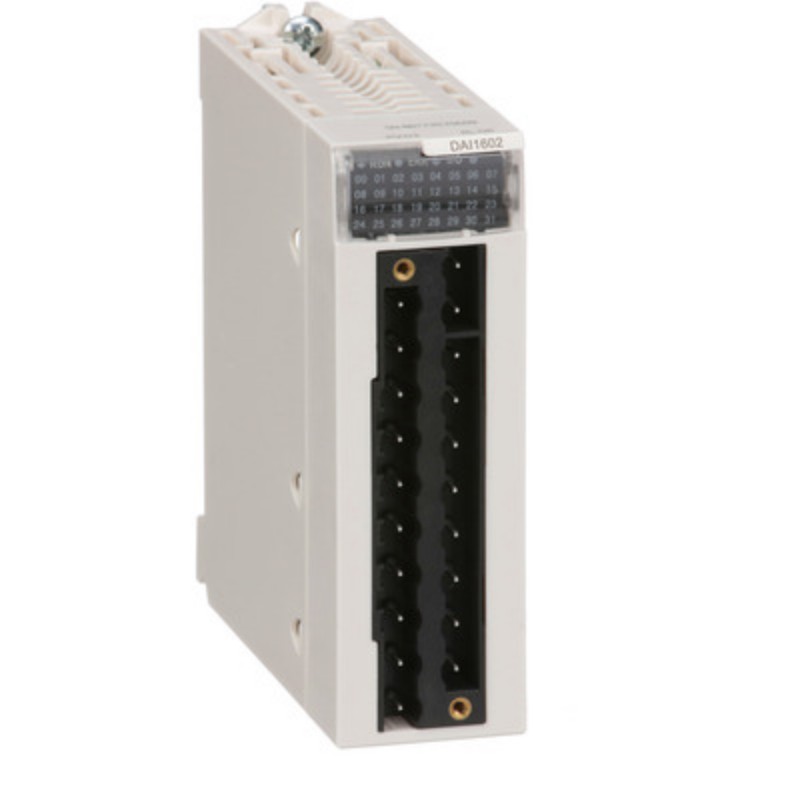

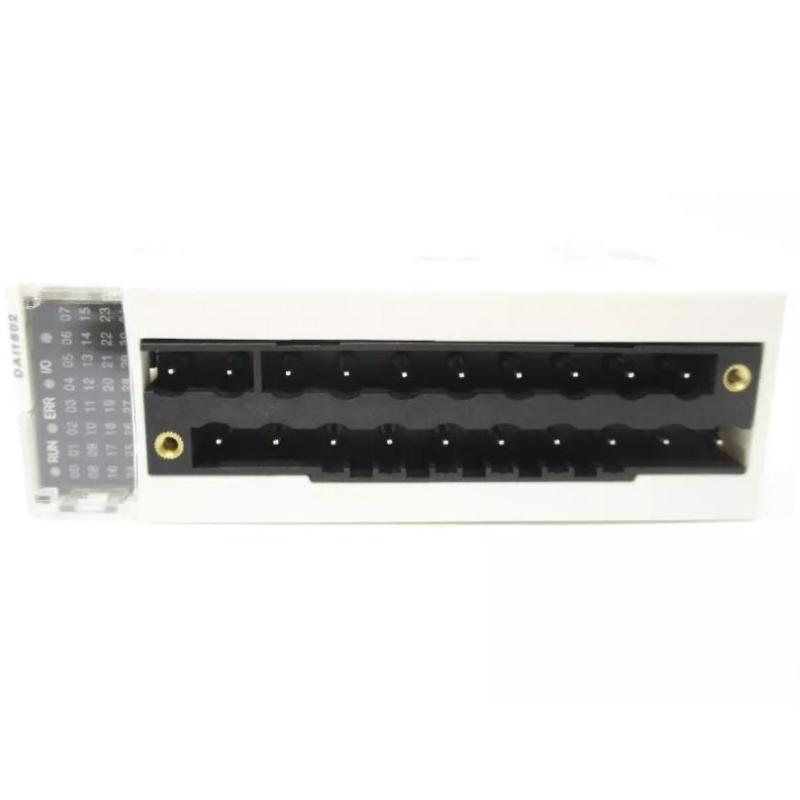

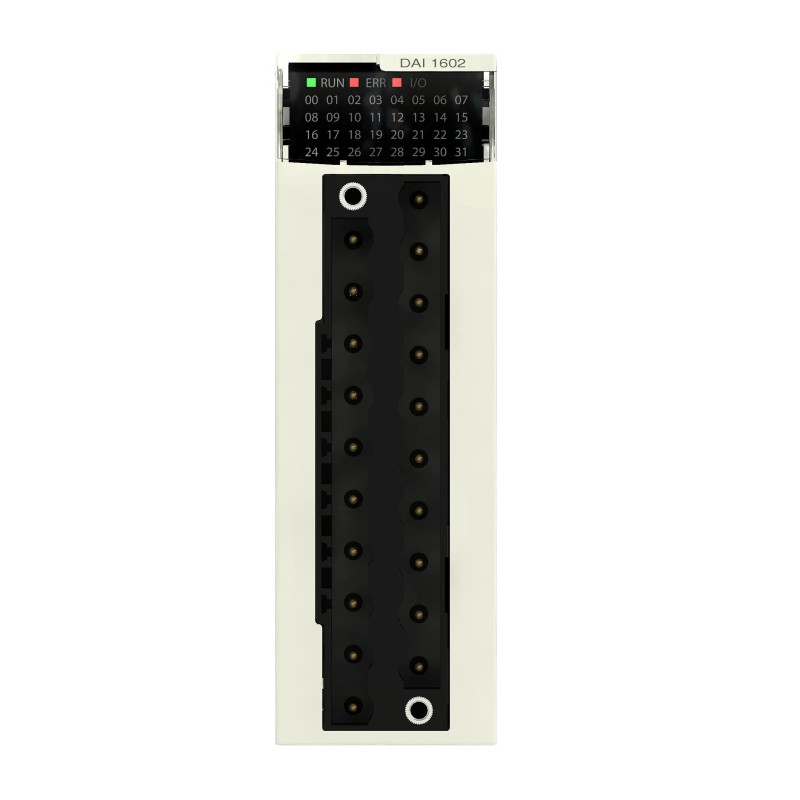

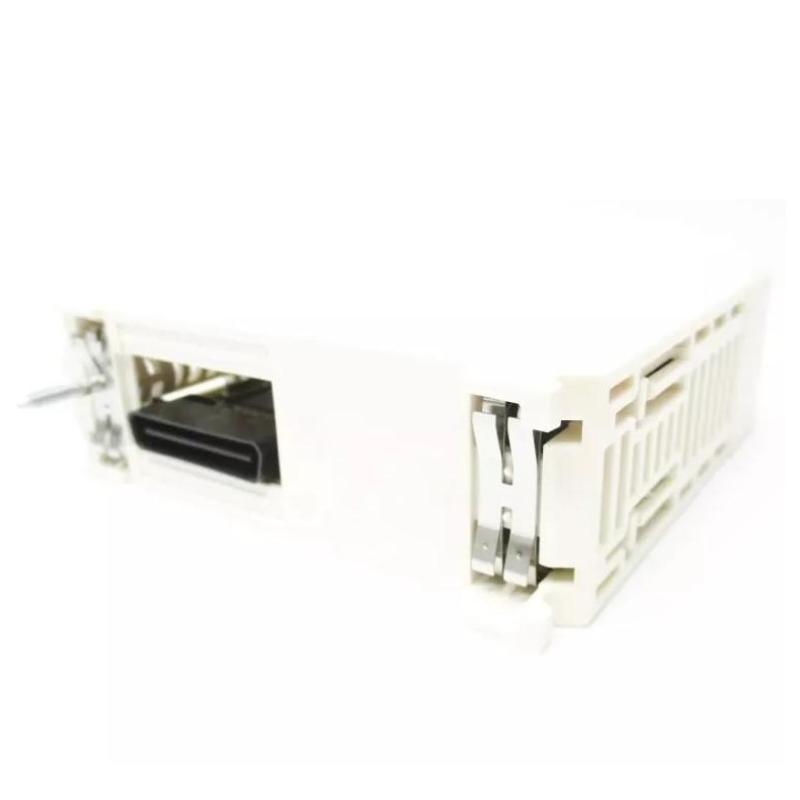

The Schneider BMXDAI1602 is a high-performance 16-channel analog input module designed specifically for use with the Modicon M340 PLC. This module is engineered to convert a variety of real-world analog signals into digital data that can be processed by the PLC, enabling efficient monitoring and control of industrial processes. With support for multiple input types—including voltage (0-10V, ±10V, 0-5V) and current (4-20mA)—the BMXDAI1602 is ideal for connecting to a broad range of field devices such as sensors, transducers, and meters.

Perfect for industries like manufacturing, process control, energy management, and water treatment, this module offers superior accuracy, reliability, and flexibility for your automation system. Whether you’re managing environmental variables like temperature and pressure, or controlling process equipment, the BMXDAI1602 ensures precise analog data acquisition and seamless integration with your PLC system.

Technical Specifications

Model: BMXDAI1602
Type: 16-Channel Analog Input Module
PLC Compatibility: Modicon M340
Number of Inputs: 16 analog inputs
Input Types:
- Voltage: 0-10V, ±10V, 0-5V
- Current: 4-20mA
Resolution: 12-bit (for precise measurement accuracy)
Input Impedance:
- Voltage Input: ≥ 1 MΩ
- Current Input: 250 Ω
Signal Conversion: Analog-to-Digital Conversion (ADC)
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 120 mm x 60 mm
Weight: 0.65 kg (1.43 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

Schneider Electric offers a range of complementary modules for the Modicon M340 PLC to enhance the capabilities of your automation system:

Schneider BMXDAI0805: A 8-channel analog input module, ideal for applications requiring fewer analog inputs but still offering flexibility in voltage and current input types.
Schneider BMXDAI3200: A high-precision analog input module with 16-bit resolution, designed for applications needing enhanced measurement accuracy.
Schneider BMXDIO0400: A 4-channel digital output module for controlling external devices based on the processed analog inputs.
Schneider BMXPIF0200: A communication interface module for connecting your Modicon M340 PLC to external field devices over protocols like Modbus or Ethernet/IP.

These modules can be integrated into your system to extend functionality, support higher resolutions, or enable advanced communication options depending on your application’s needs.

Popular Schneider Electric Models

Schneider Modicon M340 – A versatile PLC for industrial automation, offering scalability and modularity for medium to large systems with support for both analog and digital I/O.
Schneider Modicon M580 – A high-performance PLC designed for mission-critical, real-time, and distributed control applications, providing advanced features like cybersecurity and redundancy.
Schneider ATV320 – A Variable Frequency Drive (VFD) ideal for controlling motors in applications like HVAC, pumps, and conveyors.
Schneider ATV630 – A heavy-duty VFD designed for motor control in harsh industrial environments.
Schneider EcoStruxure™ Control Expert – Schneider Electric’s comprehensive PLC programming software, enabling quick and efficient configuration, integration, and management of Modicon PLCs.

These products, along with the BMXDAI1602, allow for efficient management of both digital and analog signals in your industrial automation systems.

Applications

The BMXDAI1602 is designed for use in various applications where precise analog input measurements are crucial for controlling and monitoring industrial processes:

Manufacturing Automation: Connects to a variety of field devices such as temperature sensors, pressure transmitters, and flow meters, ensuring accurate control of automated production lines and machinery.
Process Control: Used in industries like chemical processing, oil and gas, and pharmaceuticals, where precise monitoring of variables such as temperature, pressure, and flow rate is essential.
Energy Management: Ideal for measuring and controlling signals from energy meters, solar power systems, and HVAC equipment, allowing for optimized energy consumption and efficiency.
Water & Wastewater Treatment: Measures parameters like pH, flow, level, and temperature in water treatment plants, helping to maintain proper water quality and system performance.
Building Automation: Monitors environmental variables such as temperature, humidity, and lighting levels for efficient control of HVAC systems, lighting, and other building systems.
Renewable Energy: Integrates with solar panels, wind turbines, and other renewable energy systems to monitor performance and optimize energy generation.

The BMXDAI1602 plays a pivotal role in these applications by providing high-precision analog data for effective system control and management.

Advantages

High Precision and Accuracy: With a 12-bit resolution, the BMXDAI1602 ensures precise data acquisition for analog signals, making it suitable for demanding control and measurement applications.
Flexible Input Types: Supports a wide range of input signal types, including 0-10V, ±10V, 0-5V, and 4-20mA, offering versatility for various types of sensors and field devices.
Compact Design: The DIN rail mountable design allows for easy integration into control panels and space-efficient installation in industrial environments.
Energy Efficient: Designed to operate with 24V DC, the BMXDAI1602 ensures low power consumption while providing high-performance analog signal processing.
Robust and Reliable: Built with an IP20 rating, the module is protected against dust and accidental contact, ensuring reliable performance in industrial settings.
Wide Temperature Range: The module can operate within a temperature range of 0°C to 60°C, ensuring reliable performance across various industrial environments.
Certified for Safety: The CE, UL, and RoHS certifications ensure that the BMXDAI1602 meets international standards for safety, quality, and environmental compliance.

Technical FAQs

How many analog inputs does the BMXDAI1602 have?
The BMXDAI1602 offers 16 analog inputs, providing extensive input channels for applications with multiple analog sensors.
What types of analog signals can the BMXDAI1602 handle?
It supports voltage signals (0-10V, ±10V, 0-5V) and current signals (4-20mA), making it versatile for many different industrial sensors.
What is the resolution of the BMXDAI1602?
The module provides 12-bit resolution, ensuring high accuracy for analog signal measurement and control.
Can the BMXDAI1602 be used for both voltage and current inputs?
Yes, it can handle both voltage and current inputs simultaneously, providing flexibility for various types of sensors.
What is the protection rating of the BMXDAI1602?
The module has an IP20 protection rating, ensuring protection against dust and accidental contact with electrical parts.
What is the weight of the BMXDAI1602 module?
The BMXDAI1602 weighs approximately 0.65 kg (1.43 lbs), which is manageable for installation and integration.
What is the operating temperature range of the BMXDAI1602?
The module operates within the 0°C to 60°C temperature range, making it suitable for use in a variety of industrial environments.
Can the BMXDAI1602 be used in hazardous environments?
The module is rated IP20, so while it provides basic protection, it is not suitable for use in highly hazardous environments without additional protective measures.
What certifications does the BMXDAI1602 have?
The module is certified CE, UL, and RoHS, ensuring it meets international standards for safety and environmental impact.
Is the BMXDAI1602 compatible with other Schneider Electric PLCs?
While it is designed specifically for the Modicon M340, the BMXDAI1602 may also be compatible with other Schneider Electric PLCs that support similar I/O modules.
