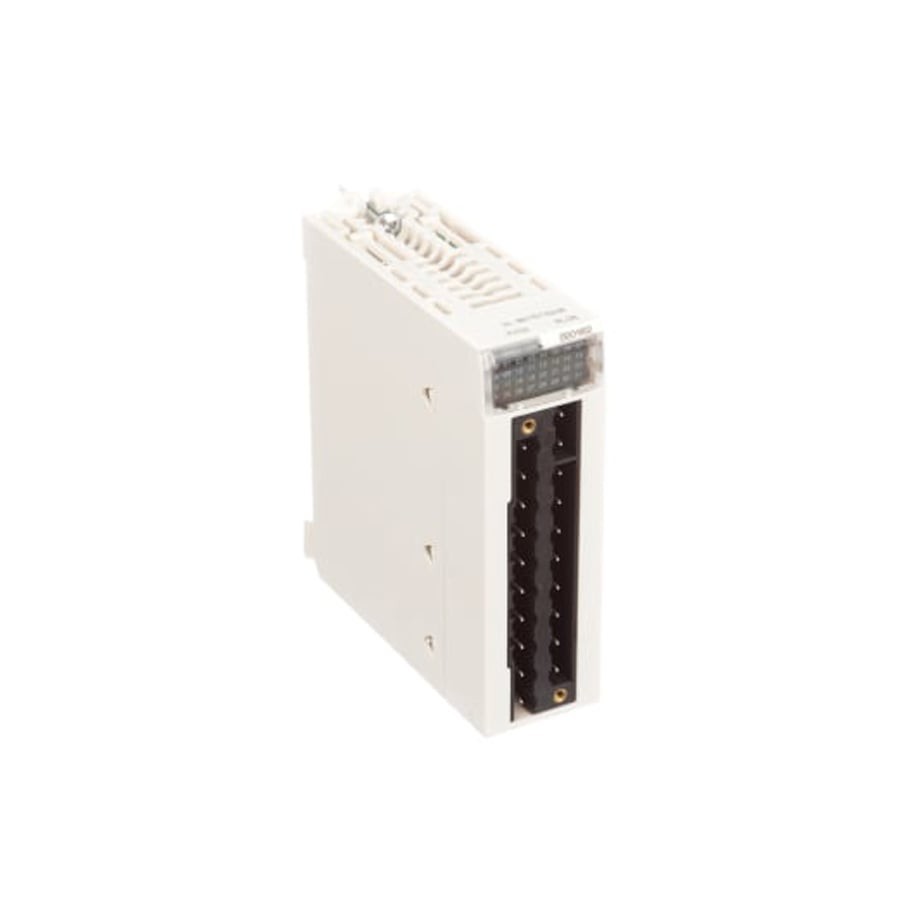

BMXDD01602

The Schneider BMXDD01602 is a 16-channel digital input/output (I/O) module designed for use with the Modicon M340 PLC. It serves as a powerful interface between the PLC and external digital devices, enabling seamless control and monitoring of industrial systems. This module is equipped with both digital inputs and digital outputs, offering a flexible solution for systems that require multiple I/O points for control, automation, and monitoring.

With its 16 digital inputs and 16 digital outputs, the BMXDD01602 is ideal for applications in industries like manufacturing automation, process control, building automation, and energy management. The module supports various types of devices, including sensors, actuators, and switches, making it a versatile choice for controlling and monitoring field equipment.

Technical Specifications

Model: BMXDD01602
Type: 16-Channel Digital Input/Output Module
PLC Compatibility: Modicon M340
Number of Inputs: 16 digital inputs
Number of Outputs: 16 digital outputs
Input Voltage: 24V DC
Output Voltage: 24V DC
Input Type: Sinking or Sourcing (configurable)
Output Type: Transistor (NPN/PNP)
Signal Type: Digital (ON/OFF)
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 120 mm x 60 mm
Weight: 0.55 kg (1.21 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

To extend the capabilities of your Modicon M340 system, Schneider Electric offers additional I/O modules that complement the BMXDD01602:

Schneider BMXDIO0400: A 4-channel digital output module designed for smaller systems or applications with fewer output requirements.
Schneider BMXPIF0200: A communication interface module that enables data transfer between your Modicon M340 PLC and field devices using protocols like Modbus, Profibus, or Ethernet/IP.
Schneider BMXDAI0805: An 8-channel analog input module, ideal for systems requiring additional analog signal processing alongside the digital I/O capabilities of the BMXDD01602.

These modules offer enhanced flexibility, allowing you to design scalable and versatile control systems tailored to your industrial needs.

Popular Schneider Electric Models

Schneider Modicon M340 – A powerful PLC that offers modularity and scalability for mid to large-scale automation applications, compatible with various digital and analog I/O modules.
Schneider Modicon M580 – A high-performance PLC ideal for critical, large-scale automation systems, with advanced features like cybersecurity, redundancy, and real-time control.
Schneider ATV320 – A Variable Frequency Drive (VFD) for controlling motors in HVAC, pumps, and conveyors, offering energy-efficient motor control.
Schneider ATV630 – A robust VFD designed for industrial environments with high power requirements and demanding motor control tasks.
Schneider EcoStruxure™ Control Expert – A PLC programming tool designed to simplify the setup, configuration, and management of Schneider Electric PLCs.

These models, along with the BMXDD01602, form the backbone of versatile and high-performance industrial automation systems.

Applications

The BMXDD01602 is ideal for a wide range of applications requiring digital signal processing for control and monitoring of field devices:

Manufacturing Automation: Perfect for controlling automated assembly lines, robotic systems, and machines that rely on digital inputs and outputs for operation.
Process Control: Used in industries like chemical, pharmaceutical, and oil & gas to monitor and control switches, sensors, and actuators in critical processes.
Building Automation: Ideal for controlling lighting, HVAC systems, and security systems in commercial and industrial buildings.
Energy Management: Provides control over energy meters, pumps, and valves, enabling the efficient operation of energy distribution and power management systems.
Water Treatment: Manages sensors and actuators for flow meters, valves, and pumps in water treatment plants, ensuring optimized water distribution and processing.
Material Handling: Controls conveyors, sorters, and other automated material handling equipment, enhancing the efficiency of logistics and distribution systems.

The BMXDD01602 module is ideal for systems that require a large number of digital inputs and outputs for monitoring and controlling industrial processes.

Advantages

High I/O Density: The BMXDD01602 offers 16 digital inputs and 16 digital outputs in a single module, making it a cost-effective and space-saving solution for industrial control systems.
Flexible I/O Configuration: Supports sinking and sourcing input configurations and NPN/PNP output types, allowing for seamless integration with various industrial devices and sensors.
Compact and Space-Efficient: With DIN rail mounting, the BMXDD01602 is easy to install in control panels, saving space while maintaining high functionality.
Energy-Efficient: The module operates at 24V DC, ensuring low power consumption while providing reliable I/O performance.
Rugged and Reliable: The IP20 protection rating ensures that the module can withstand typical industrial conditions, offering protection against dust and accidental contact.
Wide Temperature Range: Operating between 0°C to 60°C (32°F to 140°F), the module is suitable for use in a variety of industrial environments, from manufacturing to process control.
Certified for Safety: The module meets CE, UL, and RoHS certifications, ensuring it adheres to international standards for safety, quality, and environmental impact.

Technical FAQs

How many digital inputs and outputs are available on the BMXDD01602?
The BMXDD01602 provides 16 digital inputs and 16 digital outputs, offering substantial I/O capacity for most industrial applications.
What voltage does the BMXDD01602 operate at?
The module operates at 24V DC for both input and output signals, which is standard for most industrial automation systems.
Can the digital inputs and outputs be configured for both sinking and sourcing?
Yes, the BMXDD01602 supports both sinking and sourcing configurations for inputs, and NPN/PNP for outputs, offering flexibility in how external devices are connected.
What is the protection rating of the BMXDD01602?
The module has an IP20 protection rating, ensuring protection from dust and accidental contact with live parts.
What is the weight of the BMXDD01602 module?
The BMXDD01602 weighs approximately 0.55 kg (1.21 lbs), making it easy to handle and install.
What is the operating temperature range for the BMXDD01602?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.
Can the BMXDD01602 be used in hazardous environments?
With an IP20 rating, the module is not suitable for use in highly hazardous or corrosive environments without additional protective measures or enclosures.
What certifications does the BMXDD01602 have?
The BMXDD01602 is CE, UL, and RoHS certified, ensuring compliance with international safety, quality, and environmental standards.
Can the BMXDD01602 be used with other Schneider Electric PLCs?
The BMXDD01602 is specifically designed for use with the Modicon M340, but it may be compatible with other Schneider Electric PLCs that support similar I/O modules.
How is the BMXDD01602 mounted?
The module is DIN rail mountable, which makes it easy to install and integrate into control panels and industrial systems.
